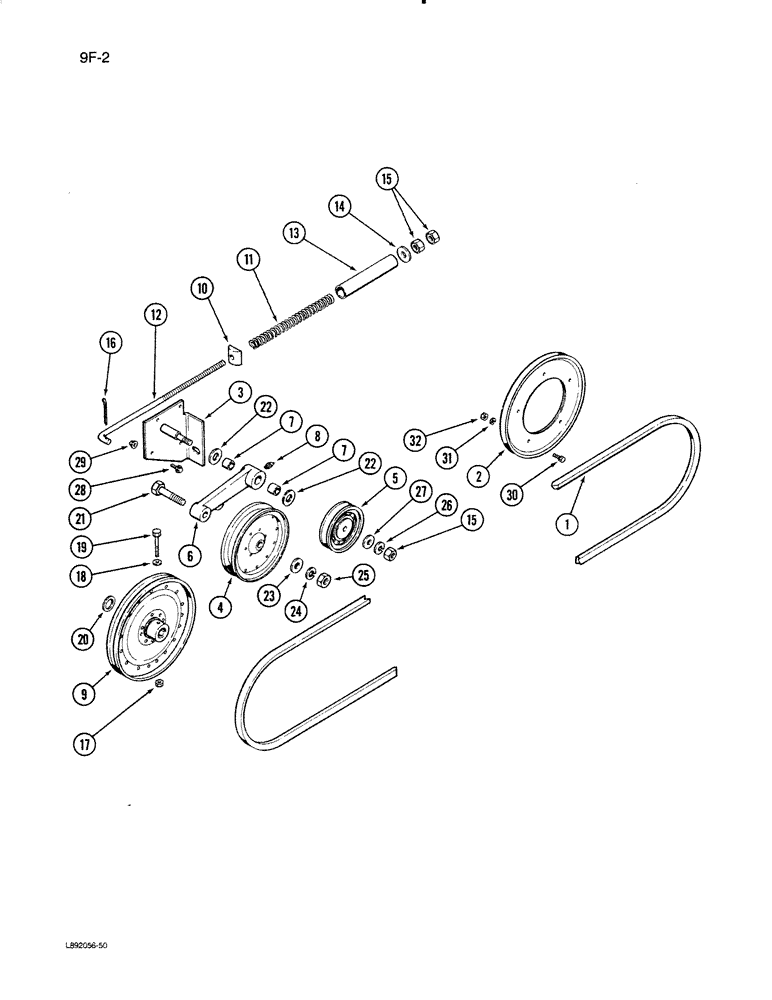

Запчасти Case IH 1670 (9F-02) - STRAW SPREADER DRIVE (19) - STRAW SPREADER & CHOPPER

1

196371C1

BELT,0.630" W x 222.59" L

V-BELT , Straw spreader drive 0.630" W x 222.59" L

1шт.

2

566516R91

PULLEY ASSY.

PULLEY ASSEMBLY - spreader drive, 9-3/4 inch OD

1шт.

3

1315275C1

SUPPORT ASSY.

SUPPORT ASSEMBLY - drive tightener

1шт.

4

566518R91

PULLEY,152.4mm Idler Dia x 171.45mm OD x 38.1mm W

- drive tightener, 6 inch OD

1шт.

5

1315269C1

PULLEY

- drive idler, 4-3/8 inch OD

1шт.

6

1979591C1

LEVER

- tightener arm, Includes: Ref. 7

1шт.

7

165704C1

BUSHING

- tightener lever

2шт.

8

87414

LUBE NIPPLE,1/4" - 28

FITTING - lubrication, 1/4 inch

1шт.

9

181196C2

PULLEY

- spreader driven, 10 inch OD

1шт.

10

194652C1

PIVOT

BAR - tightener rod pivot

1шт.

11

1315223C1

SPRING

- spreader drive

1шт.

12

181152C1

ROD

- spreader drive idler

1шт.

13

1315197C1

SPACER

- spreader drive

1шт.

14

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

WASHER - 17/32 x 1-1/2 x 3/16 inch

1шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

16

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

17

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

18

25543R1

WASHER,.344" x 11/16" x .098", HDN

- hardened, 5/16 inch

1шт.

19

25234R1

BOLT,Hex, 5/16" - 18 x 2 1/4", Gr 8

- 5/16 NC x 2-1/4 inch, Grade 8

1шт.

20

591715R1

WASHER

- flat, 1-1/32 x 1-1/2 x 3/64 inch

6шт.

21

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

22

25548R1

WASHER

- hardened, 3/4 inch

2шт.

23

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

1шт.

24

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

26

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

27

NLS

NO LONGER SERVICED

- flat, 17/32 x 1-1/16 x 5/64 inch

1шт.

28

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

3шт.

29

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

3шт.

30

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- 5/16 NC x 1 inch

5шт.

31

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

32

120376

NUT,5/16"-18, G5

5шт.
