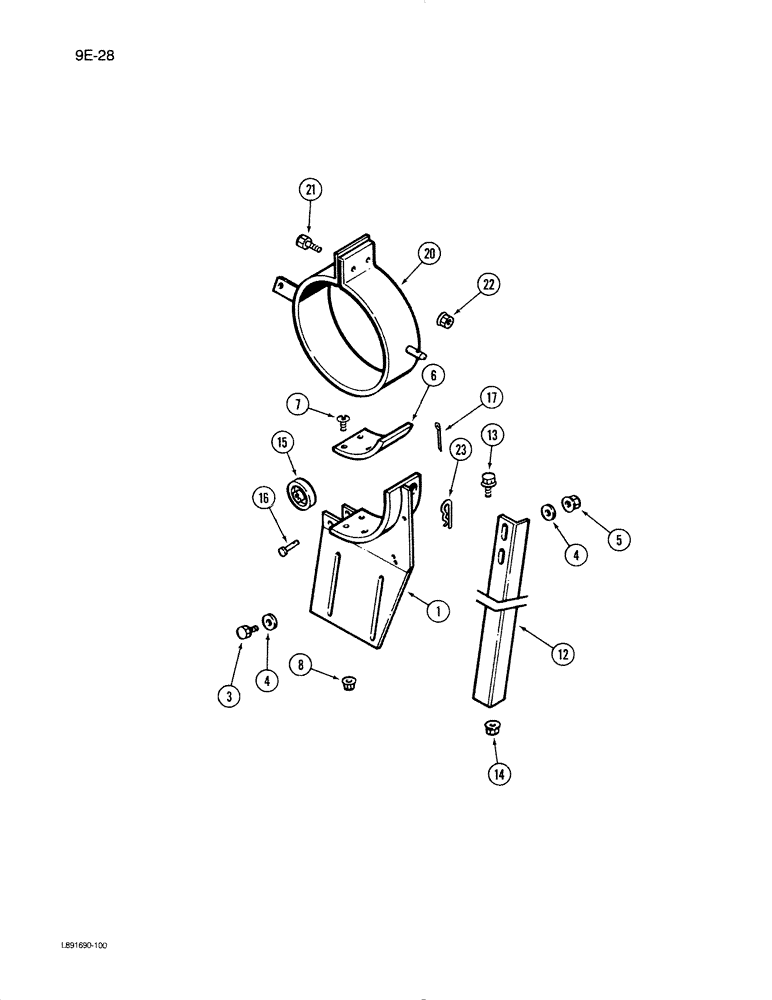

Запчасти Case IH 1670 (9E-28) - UNLOADER TUBE SADDLE (17) - GRAIN TANK & UNLOADER

1

1321500C2

UNLOADING TUBE

BRACKET - unloader tube saddle support

1шт.

3

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex lock, 3/8 NC x 1-1/4 inch

4шт.

4

477589R1

WASHER

- flat, 13/32 x 1-1/2 x 7/64 inch

8шт.

5

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

6

1321498C1

PAD

- saddle support bracket

1шт.

7

937875R1

SCREW,Serr, 1/4" - 20

- slotted truss head, 1/4 NC x 3/4 inch

6шт.

8

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

6шт.

12

1319222C1

SUPPORT

- angle saddle

1шт.

13

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

1шт.

14

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

15

1321499C1

WHEEL,63.5mm OD x 28.6mm W

WHEEL - unloader saddle

1шт.

16

28313R1

PIN

- clevis, 1/4 x 2-1/4 inch

1шт.

17

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

20

1317870C1

CLAMP

- unloader tube retaining

1шт.

21

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

- hex flange 5/16 NC x 1-1/4 inch

2шт.

22

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

23

480523R1

HAIR PIN COTTER

9/64" dia

1шт.
