Запчасти Case IH 1670 (9E-22) - UNLOADER, UPPER (17) - GRAIN TANK & UNLOADER

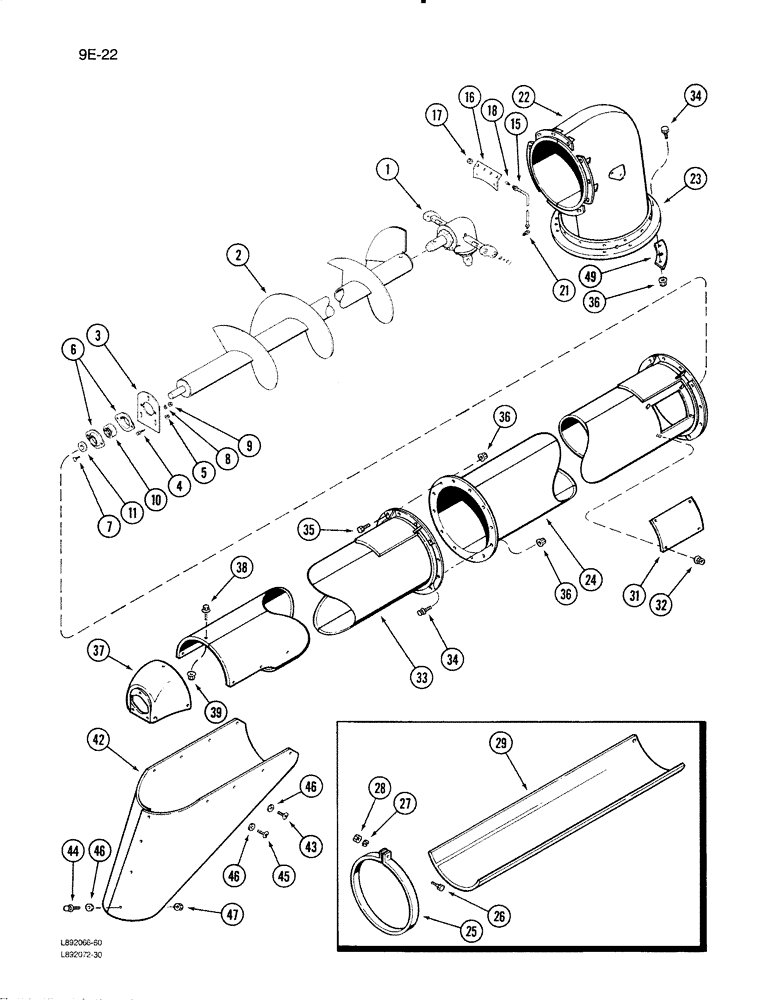

Схема запчастей Case IH 1670 - (9E-22) - UNLOADER, UPPER (17) - GRAIN TANK & UNLOADER
17
9
47
37
25
2
46
8
34
46
29
15
11
3
28
36
42
10
49
46
31
33
38
6
16
22
36
35
21
39
32
24
34
26
18
23
43
5
1
27
7
36
45
4
44

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

HOUSING ASSEMBLY - unloader upper gear (See Figure 9E-30)

1шт.

2

1317935C1

AUGER

- unloader, one piece

1шт.

3

182838C1

SUPPORT

- outer bearing

1шт.

4

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

3шт.

5

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

3шт.

6

F9417

FLANGE

- outer bearing

2шт.

7

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT - round head square neck, 3/8 NC x 1-1/4 inch

2шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

10

160796C91

BALL BEARING,25.4mm ID x 51.99mm OD x 16.56mm W

BEARING - unloader outer

1шт.

11

564853R11

COLLAR

- outer bearing

1шт.

15

937779R91

HOSE,1/8" ID x 22" L

FLEXIBLE HOSE, , Lubrication 0.14" ID x 22.00"

2шт.

15

937781R92

HOSE,3.02mm ID x 686mm L

Grease 3.56 mm ID x 686.00 mm

1шт.

15

937782R91

HOSE

- lubrication, 31 inch

1шт.

16

185134C1

SUPPORT

- lubrication hose

1шт.

17

F53473

LOCK NUT,1/8-27 NPSM

- lubrication hose

4шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

4шт.

21

21347R1

ADAPTER,45 Degree, 1/4"-1/8 NPTF

FITTING - adapter lubrication

4шт.

22

193417C93

TUBE

ELBOW ASSEMBLY - unloader, Includes: Ref. 23

1шт.

23

193418C3

FLANGE

- unloader elbow

1шт.

24

1317738C1

TUBE,2285 mm Length

- unloader, front, 89.96 in.

1шт.

24

1317873C1

UNLOADING TUBE,2285 mm Length

TUBE - unloader, front, 89.96 in.

1шт.

25

178166C1

CLAMP

- tube retaining

4шт.

26

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

4шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

28

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

29

178165C2

COVER

- auger tube

1шт.

31

178158C1

PLATE

- front tube inspection

1шт.

32

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

33

1317783C2

TUBE

- unloader, rear, 82.47 in.

1шт.

34

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

1шт.

35

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch

1шт.

36

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

37

182837C1

SUPPORT TUBE

CAP - rear unloader tube

1шт.

38

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

39

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

42

1957563C1

SPOUT, DISCHARGE

DOWN SPOUT - unloader tube discharge

1шт.

43

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

4шт.

44

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

4шт.

45

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

BOLT - slotted truss head, 5/16 NC x 1-1/4 inch

4шт.

46

495-81121

WASHER,.344" x 1 1/2" x .060"

- flat, 11/32 x 1-1/2 x 1/16 inch

16шт.

47

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

8шт.

47

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

4шт.

49

186657C2

SUPPORT

- front keeper

1шт.
