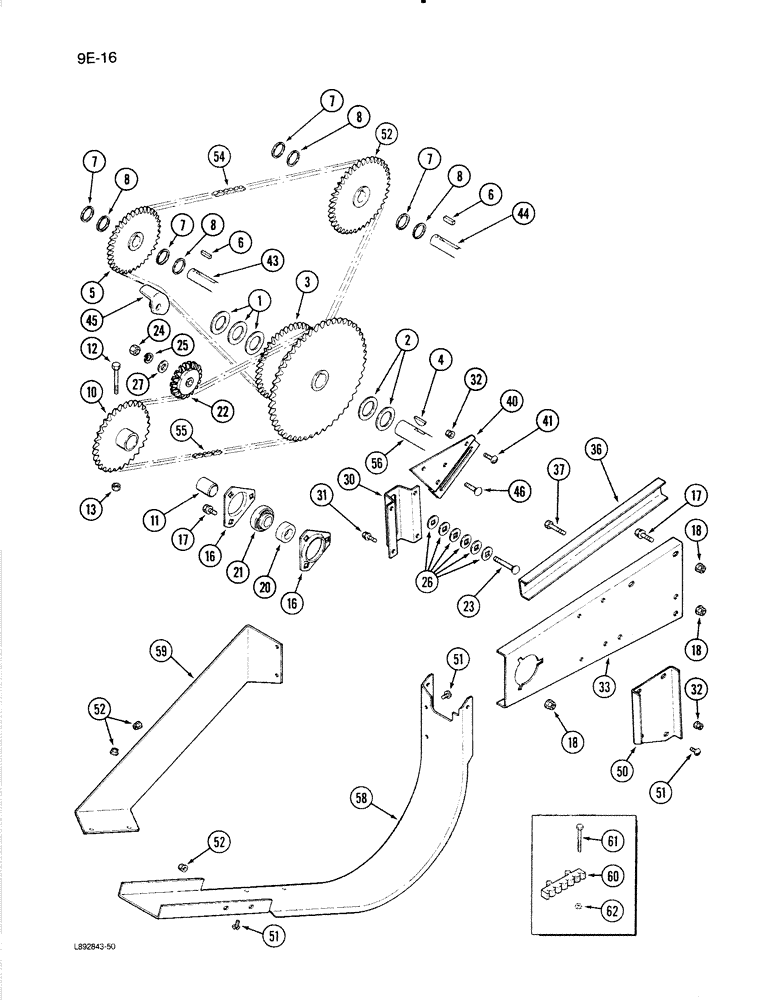

Запчасти Case IH 1670 (9E-16) - GRAIN TANK UNLOADER CHAIN DRIVE (17) - GRAIN TANK & UNLOADER

1

162679C1

WASHER

WASHER - spacer, flat

4шт.

2

188354C1

WASHER,35.71mm ID x 57.15mm OD x 3.05mm Thk

- flat, 1-13/32 x 2-1/4 x 1/8 inch

1шт.

3

192511C2

SPROCKET ASSY.

SPROCKET - driven

1шт.

4

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

5

192922C1

SPROCKET

- driven, front, Includes: Ref. 6

1шт.

6

Q53

KEY,1/4" Sq x 1", Par

2шт.

7

20704R1

WASHER

- flat, 1-1/32 x 1-1/2 x 7/64 inch

8шт.

8

591715R1

WASHER

- flat, 1-1/32 x 1-1/2 x 3/64 inch

4шт.

10

1321167C92

DRIVE SPROCKET

SPROCKET - drive, Includes: Ref. 11

1шт.

11

574294R1

BUSHING

- sprocket

1шт.

12

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

1шт.

13

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

16

571425R1

FLANGED BEARING

- bearing

2шт.

17

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

1шт.

18

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

20

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

- shaft, sprocket

1шт.

21

557115R11

COLLAR

COLLAR ASSEMBLY - locking

1шт.

22

565442R91

SPROCKET

- tightener

1шт.

23

598815R1

CARRIAGE BOLT

BOLT - round head square neck, 1/2 NC x 2-1/2 inch

1шт.

24

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

26

607896R1

SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole

- square center, 17/32 x 1-1/4 x 7/64 inch

1шт.

27

25710R1

WASHER

- hardened flat, 17/32 x 1-1/16 x 5/64 inch

1шт.

30

192901C1

SUPPORT

BRACKET - support, sprocket

1шт.

31

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

4шт.

32

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

33

192899C2

SUPPORT

- outer, jackshaft

1шт.

36

1319469C1

CHANNEL

- support

1шт.

37

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

4шт.

40

193779C1

SUPPORT

PLATE - support

1шт.

41

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

3шт.

43

REF

INSTRUCTION

SHAFT - auger (See Figure 9E-18)

2шт.

44

REF

INSTRUCTION

SHAFT - auger, grain tank (See Figure 9E-18)

1шт.

45

936878R1

BLOCK

- tightener

1шт.

46

28661R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 8

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

1шт.

50

1302435C1

SUPPORT

- shield

1шт.

51

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss, 5/16 NC x 1/2 inch

8шт.

52

192925C1

SPROCKET

- driven, rear

1шт.

54

REF

INSTRUCTION

CHAIN ASSEMBLY - drive

1шт.

Use 157 links from 10 foot roll marked 1790D and one connecting link 1301D.

1шт.

55

REF

INSTRUCTION

CHAIN ASSEMBLY - drive

1шт.

Use 133 links from 10 foot roll marked 1791D and one connecting link 1310D.

1шт.

56

REF

INSTRUCTION

SHAFT - drive

1шт.

58

1302434C1

SHIELD

- drive, unloader

1шт.

59

183351C1

PLATE

- side

1шт.

60

3102155R1

HOLDER

- shear bolt

1шт.

61

26269R1

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 8

- hex, 5/16 NC x 2-3/4 inch, Grade 8

3шт.

62

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

3шт.
