Запчасти Case IH 1670 (9E-10) - UNLOADER CONTROL (17) - GRAIN TANK & UNLOADER

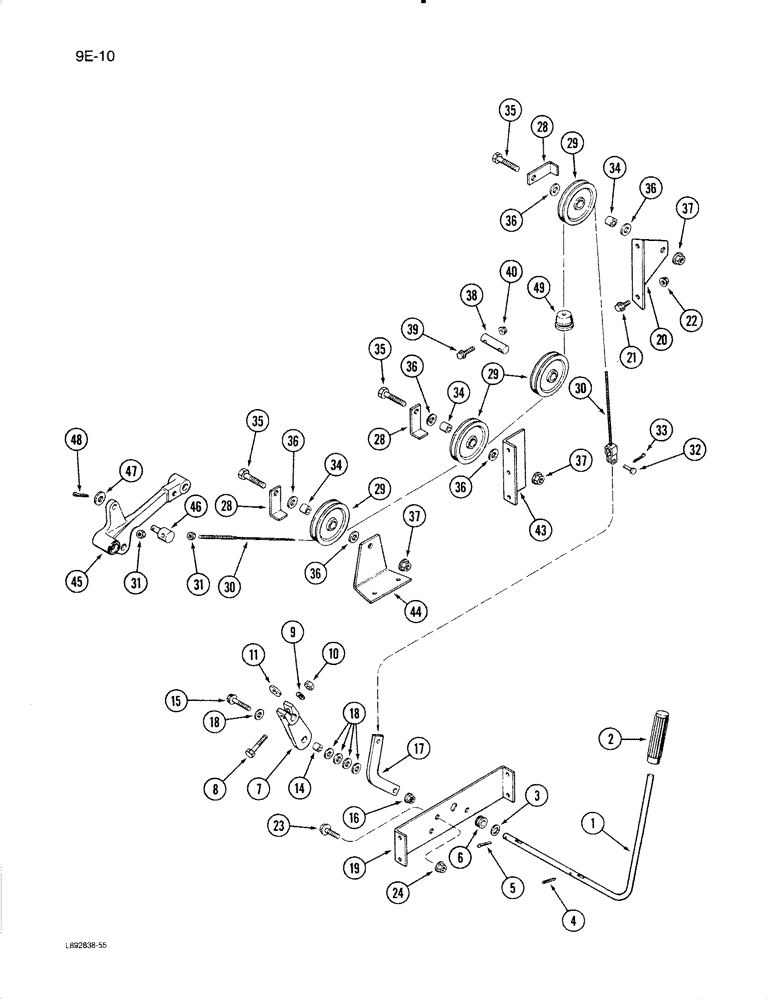

Схема запчастей Case IH 1670 - (9E-10) - UNLOADER CONTROL (17) - GRAIN TANK & UNLOADER
49
44
24
31
35
4
10
47
30
5
6
36
36
11
21
29
39
37
9
8
1
48
33
46
16
35
37
34
3
20
36
15
28
40
29
14
18
36
34
35
31
22
29
34
37
2
36
43
45
28
19
17
36
18
48
7
30
28
32
23

Артикул

Название

Примечание

Количество

1

193196C1

ROD

LEVER - unloader control

1шт.

2

193194C2

HANDLE

GRIP - hand, control lever

1шт.

3

22258R1

WASHER

- flat, 21/32 x 1 x 1/32 inch

2шт.

4

21830R1

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

1шт.

5

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

6

193201C1

BUSHING

- control lever

2шт.

7

161650C2

ARM

- control

1шт.

8

26678R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch

1шт.

9

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

10

25522R1

NUT,3/8"-16, G8

- hex, 3/8 inch, Grade 8

1шт.

11

18465D

WASHER

- control arm

1шт.

14

561277R1

SPACER,5/8" Tube x 1/2"

- 13/32 x 5/8 x 7/16 inch

1шт.

15

26678R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch

1шт.

16

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

17

195549C1

LINK

SUPPORT - control link

1шт.

18

25544R1

WASHER,13/32" x 13/16" x .134", HDN

- hardened, 3/8 inch

5шт.

19

195050C2

CHANNEL

SUPPORT - control lever

1шт.

20

195551C1

SUPPORT

- pulley

1шт.

21

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

10шт.

22

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

10шт.

23

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex lock, 3/8 NC x 1-1/4 inch

2шт.

24

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

28

193209C1

CLIP

BRACKET - control cable pulley

3шт.

29

193208C1

PULLEY

- control cable

4шт.

30

195550C1

CABLE

- unloader control

1шт.

31

129-122

NUT,5/16"-24, G5

2шт.

32

24660R1

CLEVIS PIN,5/16" x .719"

PIN - headed, 5/16 x 23/32 inch

1шт.

33

132-321

COTTER PIN,3/32" x 1"

PIN - cotter, 3/32 x 3/4 inch

1шт.

34

159716C1

SPACER,3/4" Tube x 5/8"

- 17/32 x 3/4 x 9/16 inch

3шт.

35

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

36

25710R1

WASHER

- hardened flat, 17/32 x 1-1/16 x 5/64 inch

6шт.

37

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

3шт.

38

195553C1

PIN

- cable pulley

1шт.

39

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

- hex flange 5/16 NC x 1-1/4 inch

2шт.

40

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

43

193207C1

ANGLE

BRACKET - cable guide angle

1шт.

44

193795C1

SUPPORT

- rear pulley

1шт.

45

REF

INSTRUCTION

ARM ASSEMBLY - belt tightener (See Figure 9E-14)

1шт.

46

194893C1

PIVOT

- control cable rear

1шт.

47

25710R1

WASHER

- hardened flat, 17/32 x 1-1/16 x 5/64 inch

1шт.

48

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

49

198821C1

GROMMET,3.18mm ID x 41.1mm OD x 26.9mm Thk

- unloader cable, 1/8 inch ID

1шт.

Выбрано товаров: 42
