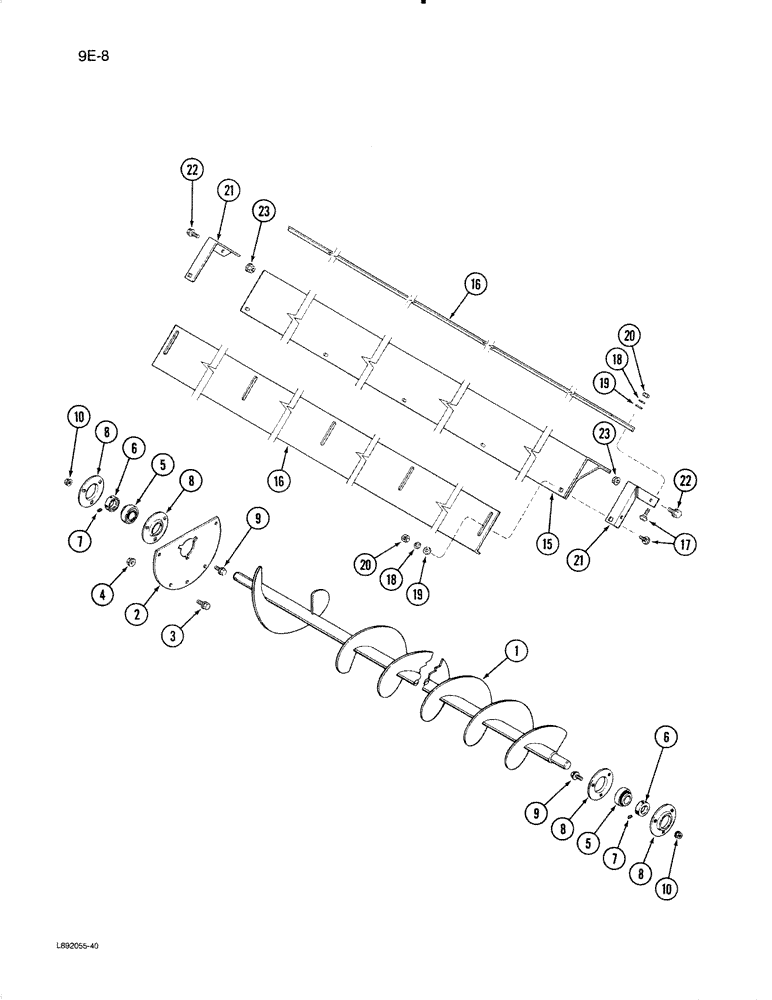

Запчасти Case IH 1670 (9E-08) - BOTTOM AUGERS, GRAIN TANK (17) - GRAIN TANK & UNLOADER

1

192784C2

AUGER

- grain tank bottom

2шт.

2

192789C1

RETAINER

- bottom auger

2шт.

3

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

10шт.

4

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

10шт.

5

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING - bottom auger

4шт.

6

455102R21

COLLAR

- locking, bearing, with set screw, Includes: Ref. 7

4шт.

7

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - hex socket, 1/4 NC x 1/4 inch set

1шт.

8

462360R1

FLANGED BEARING

- auger bearing

8шт.

9

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

12шт.

10

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

12шт.

15

1321081C1

COVER

- auger

2шт.

16

1321089C1

PLATE

EXTENSION - auger cover

4шт.

17

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 1 inch

20шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

20шт.

19

25708R1

WASHER

- hardened

20шт.

20

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

20шт.

21

1321242C1

SUPPORT

- auger cover end

4шт.

22

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

8шт.

23

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

8шт.
