Запчасти Case IH 1670 (9E-06) - GRAIN TANK EXTENSIONS (17) - GRAIN TANK & UNLOADER

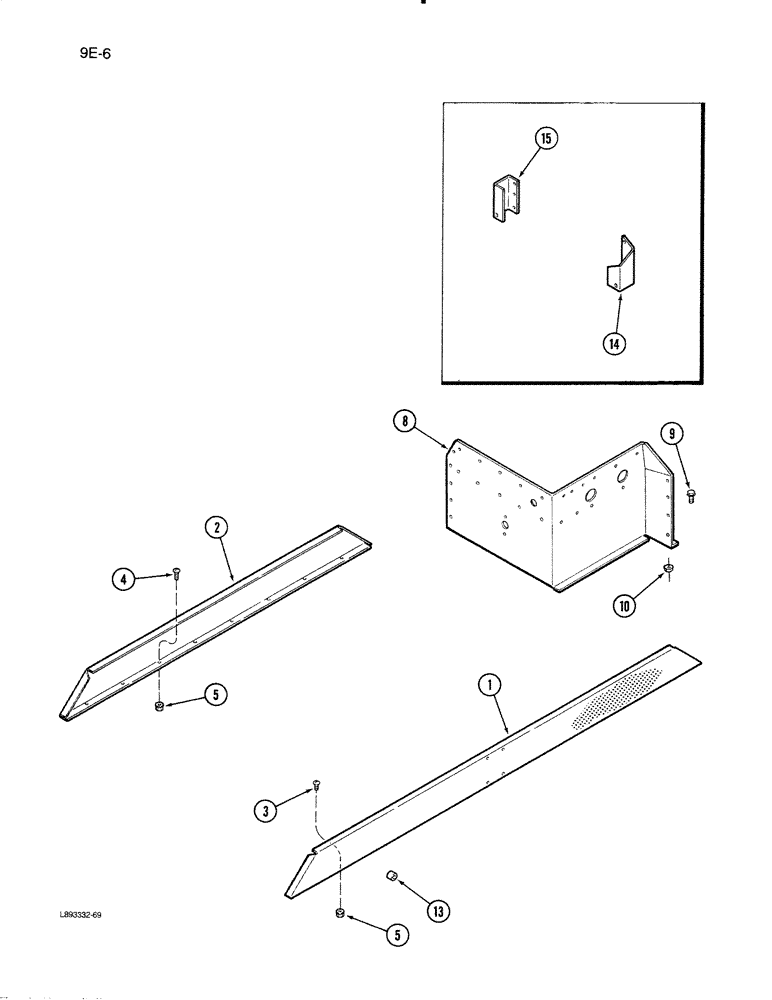

Схема запчастей Case IH 1670 - (9E-06) - GRAIN TANK EXTENSIONS (17) - GRAIN TANK & UNLOADER
14
3
13
15
4
10
5
9
2
8
5
1

Артикул

Название

Примечание

Количество

1

183157C1

SHEET

SUPPORT - grain tank, front extension

1шт.

2

183276C2

SUPPORT

- grain tank, rear extension

1шт.

3

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss, 5/16 NC x 1/2 inch

11шт.

4

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

1шт.

5

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

22шт.

8

1317644C1

SUPPORT

- center extension

1шт.

9

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

6шт.

10

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

6шт.

13

33847A

SPACER,1/4" Pipe x 1 13/16"

- tank extension

4шт.

14

183265C1

EXTENSION

CHANNEL - tank extension

1шт.

15

183266C1

EXTENSION

SUPPORT - shield extension, rear

1шт.

Выбрано товаров: 11
