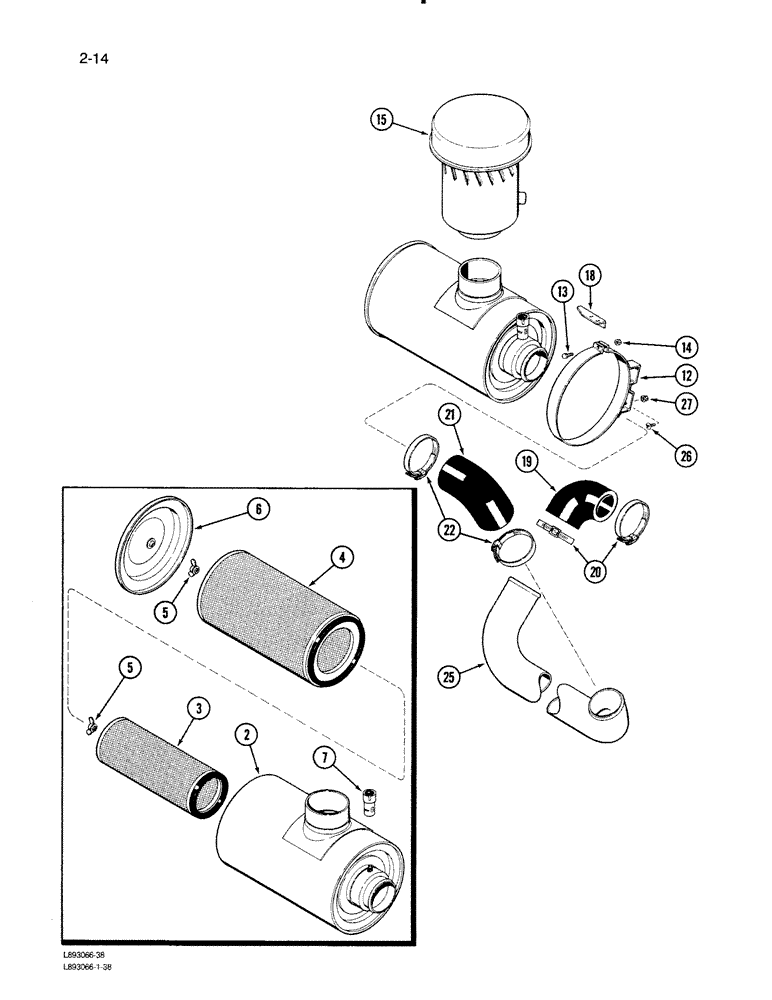

Запчасти Case IH 1670 (2-14) - AIR CLEANER SYSTEM, DTI466C ENGINE (01) - ENGINE

A184799

AIR CLEANER

CLEANER ASSEMBLY - air, engine, Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - air cleaner (Order A184799)

1шт.

3

932390C1

AIR FILTER

ELEMENT - safety

1шт.

4

932391C2

AIR FILTER

ELEMENT - primary

1шт.

5

L35499

NUT

- wing, with washer

2шт.

6

A189038

COVER

ASSEMBLY - air cleaner

1шт.

7

582214C1

INDICATOR

- air restriction

1шт.

12

259922C91

BAND

- air cleaner mounting

2шт.

13

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

3шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

15

1275728C1

PRECLEANER

- air induction

1шт.

18

1321941C2

SUPPORT

- air cleaner

1шт.

19

548222R1

INTAKE AIR HOSE,3.00" ID, 4.00" ID x 4.25"

ELBOW - inlet engine

1шт.

20

146569C1

CLAMP

- hose, No. 56 shoe, Type F

1шт.

21

218899R1

ELBOW

- air cleaner outlet

1шт.

22

146570C1

CLAMP

- hose, No. 72 shoe, Type F

3шт.

25

1275739C1

AIR INTAKE TUBE,4" OD, 360 mm Length

TUBE - air cleaner outlet

1шт.

26

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

4шт.

27

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.
