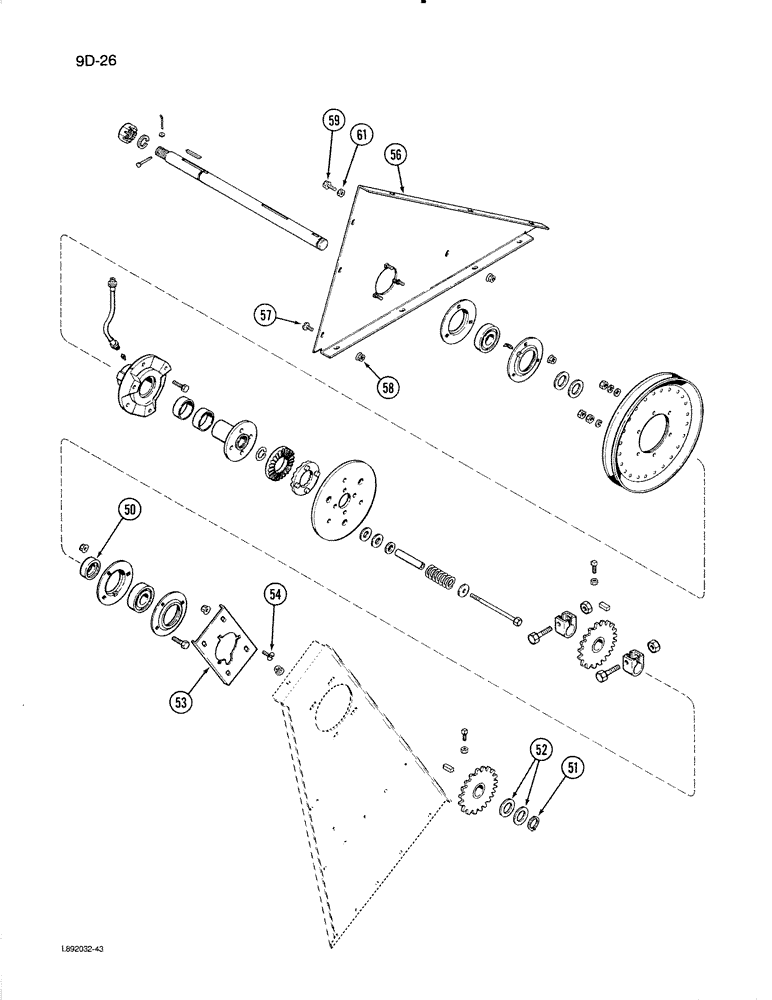

Запчасти Case IH 1670 (9D-26) - ELEVATOR DRIVE JACKSHAFT, (CONT) (16) - GRAIN ELEVATORS & AUGERS

50

455104R11

COLLAR

ASSEMBLY - bearing

1шт.

51

609053R1

SNAP RING,#125, Ext

Ring, Snap, , sprocket #125, Ext

1шт.

52

195-2120

WASHER,1.28" ID x 2" OD x 0.24" Thk

- flat, 1-9/32 x 2 x 7/64 inch

1шт.

53

192138C2

BRACKET

- outer, jackshaft

1шт.

54

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

4шт.

56

1317435C1

SUPPORT

- inner, jackshaft

1шт.

57

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

6шт.

58

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

6шт.

59

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch

1шт.

61

25932R1

JAM NUT,Jam, 3/8"-16, G5

- hex jam, 3/8 inch NC

1шт.
