Запчасти Case IH 1670 (9D-20) - TAILINGS ELEVATOR, (CONT) (16) - GRAIN ELEVATORS & AUGERS

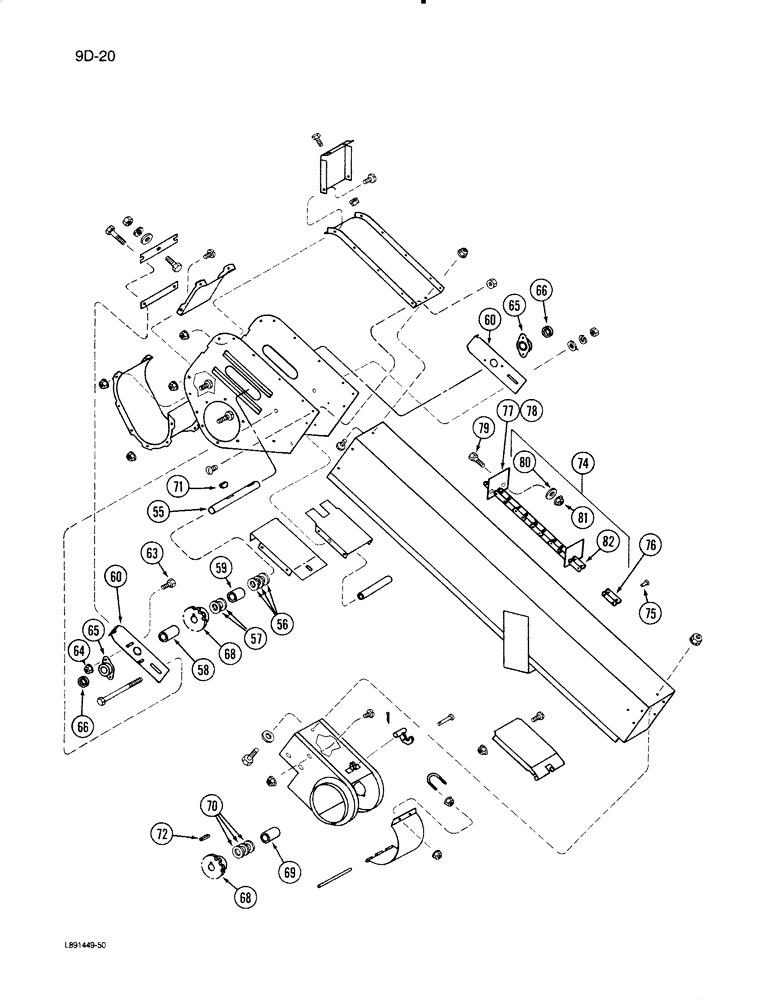

Схема запчастей Case IH 1670 - (9D-20) - TAILINGS ELEVATOR, (CONT) (16) - GRAIN ELEVATORS & AUGERS
66
70
68
74
77
72
60
55
71
58
78
64
69
65
57
82
76
56
68
63
59
79
85
80
81
66
75
60

Артикул

Название

Примечание

Количество

55

191785C1

SHAFT

- sprocket, head

1шт.

56

21789R1

WASHER

- flat, 1-1/32 x 1-1/4 x 3/64 inch

1шт.

57

609836R1

WASHER

- flat, 1-1/32 x 1-3/4 x 3/64 inch

2шт.

58

516327R1

SPACER,26.6mm ID x 33.4mm OD x 69.8mm L

Sprocket, LH 1" Pipe x 2 3/4"

1шт.

59

27828R1

SPACER,26.6mm ID x 33.4mm OD x 39.7mm L

Sprocket, RH 1" Pipe x 1 9/16"

1шт.

60

181364C1

SUPPORT

- shaft

2шт.

63

186056C1

BOLT

- support

4шт.

64

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

65

214490C91

BALL BEARING,25.4mm ID

BEARING - head shaft

2шт.

66

455102R21

COLLAR

ASSEMBLY - bearing lock

2шт.

68

168683C1

SPROCKET

- chain, conveyor

2шт.

69

21696R1

SPACER,1" Pipe x 1 3/8"

- sprocket, 1 x 1-3/4 inch

1шт.

70

22440R1

WASHER

- flat, 1-1/32 x 1-3/4 x 1/32 inch

1шт.

71

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

72

Y24430

KEY,1/4" Sq x 1 1/2", Par

- square parallel, 1/4 x 1-1/2 inch

1шт.

74

1303114C91

ELEVATOR CHAIN,C550, 112 Links x 41.4mm = 4636.8mm

CONVEYOR ASSEMBLY - elevator, Includes: Ref. 75 - 82

1шт.

75

185315C1

RIVET

- tubular, 3/8 x 5/8 inch

1шт.

76

631254R91

DRAG LINK

LINK - connecting

1шт.

76

23442R1

PIN,2.36mm OD

- link

1шт.

76

631253R91

LINK

- plain

1шт.

76

23880R1

OFFSET LINK

LINK - offset

1шт.

77

1303123C91

ELEVATOR CHAIN

FLIGHT ASSEMBLY - conveyor (Rubber), Includes: Ref. 77 - 81

1шт.

77

1303124C92

RUBBER FLIGHT

FLIGHT ASSEMBLY - conveyor (Steel), Includes: Ref. 77 - 81

1шт.

77

1303116C1

RUBBER FLIGHT

FLIGHT - conveyor, rubber

1шт.

77

1303125C1

STEEL FLIGHT

FLIGHT - conveyor, steel

1шт.

79

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

80

28588R1

WASHER

- flat, 13/32 x 11/16 x 3/64 inch

2шт.

81

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

82

NSS

NOT SOLD SEPARAT

LINK - attaching (Rubber flight) (Order 1303123C91)

1шт.

82

150722C91

LINK

- attaching (Steel flight)

1шт.

Выбрано товаров: 30
