Запчасти Case IH 1670 (9D-18) - TAILINGS ELEVATOR (16) - GRAIN ELEVATORS & AUGERS

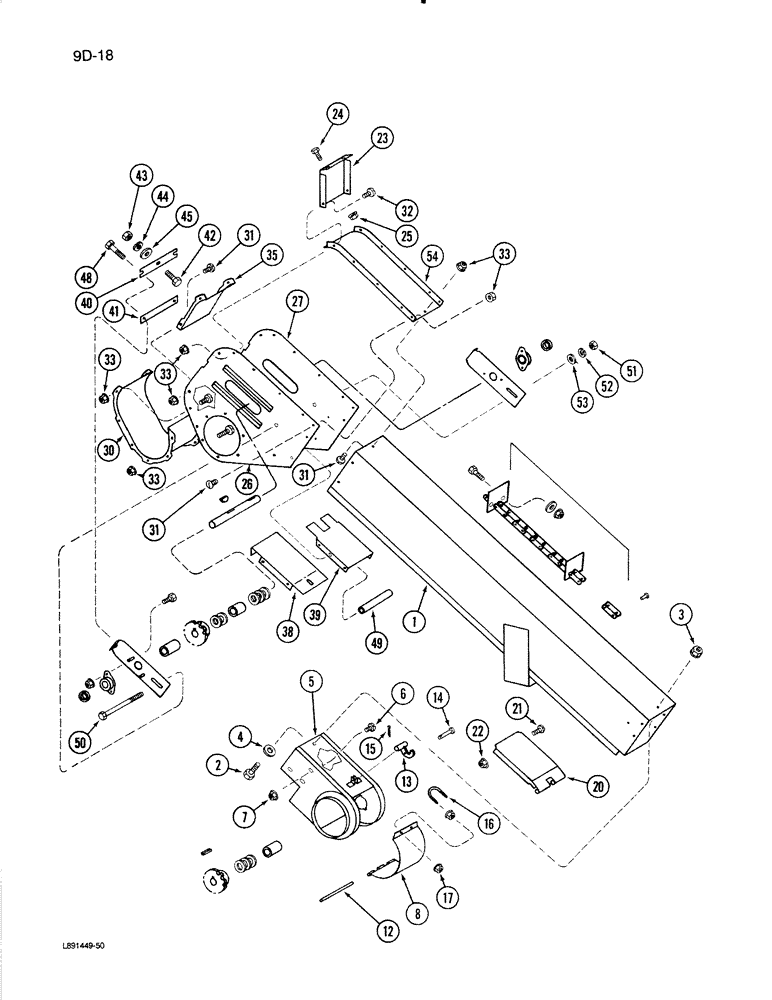

Схема запчастей Case IH 1670 - (9D-18) - TAILINGS ELEVATOR (16) - GRAIN ELEVATORS & AUGERS
15
13
31
47
25
17
52
4
33
50
49
41
33
6
45
32
33
12
22
7
31
54
38
1
42
6
24
16
53
44
48
31
30
33
23
21
40
35
39
26
3
20
5
51
7
43
14

Артикул

Название

Примечание

Количество

1

191778C2

ELEVATOR TUBE,85.08" Length

HOUSING - elevator

1шт.

2

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex lock, 3/8 NC x 1-1/4 inch

2шт.

3

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex lock, 3/8 inch NC

2шт.

4

20803R1

WASHER

- flat, 13/32 x 1 x 7/64 inch

8шт.

5

191771C1

BOOT

ASSEMBLY - elevator

1шт.

6

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 1/2 inch

8шт.

7

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock

8шт.

8

156910C1

DOOR

- boot (Not perforated)

1шт.

8

174193C1

DOOR

- boot (Perforated)

1шт.

12

U17024

PIN

- door

1шт.

13

155909C1

LATCH

- door

1шт.

14

21879R1

HEADED PIN,1/4" x 1 1/4"

PIN - head, 1/4 x 1-1/4 inch

1шт.

15

648002

KNIFE

1/8" x 3/4"

1шт.

16

664360R1

BOLT,U, 1/4" - 20 x 69.65"

U-BOLT - door

1шт.

17

22468R1

BOLT,Hex, 7/8" - 9 x 11", Gr 5

NUT - hex lock, 1/4 inch NC

4шт.

20

191790C2

END

HINGE - bottom

1шт.

21

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

4шт.

22

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

23

195201C1

SUPPORT

- upper

2шт.

24

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

- hex flange, 5/16 NC x 1-1/4 inch

2шт.

25

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

26

181366C1

SIDE PLATE

SIDE - head, left

1шт.

27

181367C1

SIDE PLATE

SIDE - head, right

1шт.

30

188119C1

TROUGH

- head

1шт.

31

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 1/2 inch

20шт.

32

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

11шт.

33

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

35шт.

35

191776C1

COVER

COVER - head

1шт.

38

191782C1

SUPPORT

BOTTOM - head

1шт.

39

181327C1

BOTTOM

- head

1шт.

40

181376C1

CLAMP

- tightener

1шт.

41

181375C1

SUPPORT

TIGHTENER - bolt

1шт.

42

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

- hex, 3/8 NC x 1-1/4 inch

1шт.

43

120377

NUT,3/8" - 16, Gr 5

1шт.

44

492-11038

LOCK WASHER,3/8"

1шт.

45

614452R1

WASHER

- flat, 13/32 x 1-1/4 x 3/32 inch

1шт.

48

667486R1

BOLT

BOLT - tightener bar

2шт.

49

27829R1

SPACER,9.2mm ID x 13.72mm OD x 147.6mm L

Sprocket 1/4" Pipe x 5 13/16"

1шт.

50

24666R1

BOLT,Hex, 5/16" - 18 x 7", Gr 2

1шт.

51

120376

NUT,5/16"-18, G5

1шт.

52

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

53

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

2шт.

54

191783C1

TOP COVER

COVER - top, head

1шт.

Выбрано товаров: 43
