Запчасти Case IH 1670 (9D-16) - TAILINGS AUGER TROUGH (16) - GRAIN ELEVATORS & AUGERS

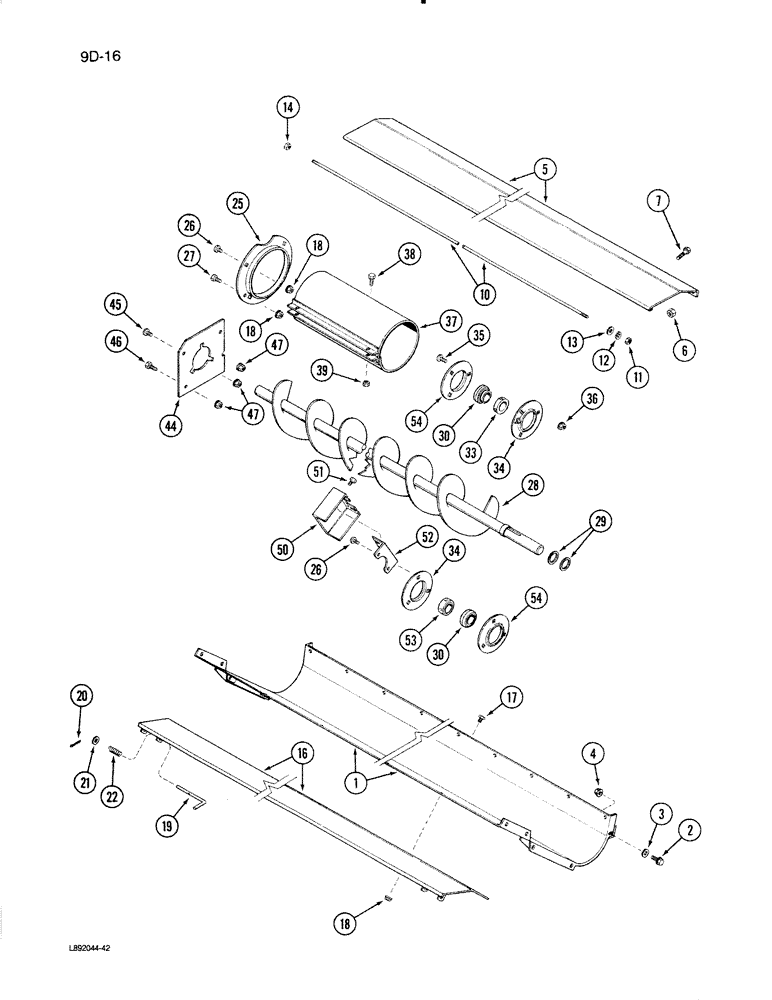

Схема запчастей Case IH 1670 - (9D-16) - TAILINGS AUGER TROUGH (16) - GRAIN ELEVATORS & AUGERS
47
50
12
3
5
27
6
1
29
39
37
14
52
45
18
4
19
46
36
25
18
35
44
38
34
26
2
54
7
21
17
34
28
16
51
19
47
20
11
30
13
33
30
5
10
26
54
22

Артикул

Название

Примечание

Количество

1

186907C2

TROUGH

- auger

1шт.

2

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

2шт.

3

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

2шт.

4

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

6шт.

5

185195C1

DOOR

- cover, trough

1шт.

6

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT - trough door

9шт.

7

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

9шт.

10

185198C1

ROD

- auger door

1шт.

11

9635082

NUT,5/16" - 18, Gr 5

1шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

13

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

1шт.

14

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT - left hex, door rod

1шт.

16

186909C1

DOOR

TAILGATE - trough

1шт.

17

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 1/2 inch

6шт.

18

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

10шт.

19

186736C1

ROD

- tailgate

2шт.

20

132-321

COTTER PIN,3/32" x 1"

PIN, SPLIT (COTTER), 3/32" x 1"

2шт.

21

25709R1

WASHER

- flat, 13/32 x 47/64 x 1/16 inch

2шт.

22

540815R1

SPRING

- lock pin

2шт.

25

160324C2

FLANGE

- bearing plate, right

1шт.

26

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 1/2 inch

2шт.

27

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

2шт.

28

191734C1

AUGER

- tailings

1шт.

29

21789R1

WASHER

- flat, 1-1/32 x 1-1/4 x 3/64 inch

1шт.

30

482303R92

BALL BEARING,1.0005" ID x 52 mm OD x 0.84375"

ASSEMBLY - auger

2шт.

33

455102R21

COLLAR

ASSEMBLY - locking

2шт.

34

180383C91

FLANGED BEARING,3.75" OD x 0.4062"

FLANGE ASSEMBLY - bearing, auger, outer

2шт.

35

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

6шт.

36

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

6шт.

37

192693C1

CLAMP

ASSEMBLY - extension (Not perforated)

1шт.

37

195078C1

SCREEN

ASSEMBLY - extension (Perforated)

1шт.

38

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

38

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

BOLT - slotted truss head, 5/16 NC x 1 inch

2шт.

39

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

39

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

44

192357C2

BAR

- support, bearing

1шт.

45

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

3шт.

46

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

47

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

50

187616C1

SUPPORT

COVER - sensor

1шт.

51

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

2шт.

52

183869C1

BRACKET

- sensor

1шт.

53

1301135C1

COLLAR

- sensor

1шт.

54

937517R1

FLANGE

- bearing, inner

2шт.

Выбрано товаров: 44
