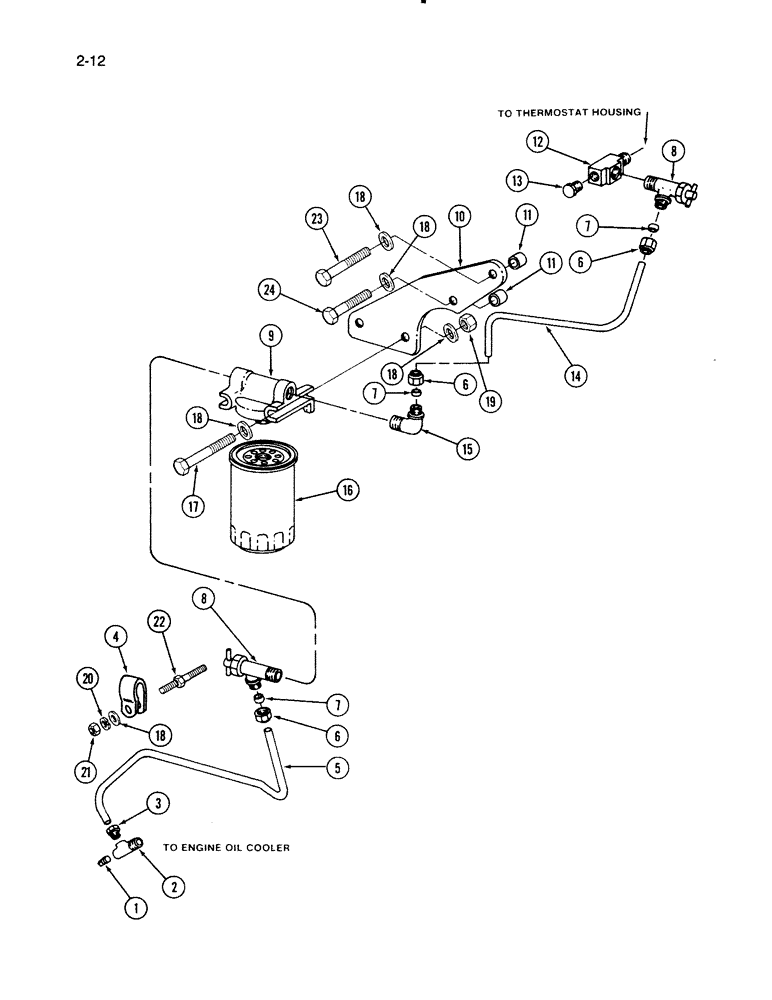

Запчасти Case IH 1670 (2-12) - COOLANT FILTER AND CONDITIONER, DTI466C ENGINE (01) - ENGINE

1

444614

PLUG,Hex Hd, 1/8"-27, Brass

- hex head pipe, 1/8-27 inch

1шт.

2

690592C1

TEE,3/8" x 1/4" - 18 NPT x 1/8" - 27 NPT

- oil cooler

1шт.

3

222-1004

TUBE NUT,5/8" - 18

NUT - inverted flared tube, 3/8 inch NC

1шт.

4

299404C1

CLAMP

- filter inlet tube

1шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

- flat, 13/32 x 13/16 x 3/32 inch

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

25523R1

NUT,3/8"-24, G8

- hex, 3/8 inch NF, Grade 8

1шт.

5

1800124C91

TUBE

ASSEMBLY - coolant inlet, Includes: Ref. 6 and 7

1шт.

6

265205R1

TUBE NUT,0.531" Length

NUT - tube

3шт.

7

222-104

SLEEVE,3/8" Tube

- tube

3шт.

8

121894C1

FAUCET,3/8" - 18 NPTF x 5/8" - 24

VALVE - shut-off

2шт.

9

1800029C1

HEAD

ER - coolant filter

1шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

- flat, 13/32 x 13/16 x 3/32 inch

4шт.

24846R1

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 8

2шт.

25522R1

NUT,3/8"-16, G8

- hex, 3/8 inch NC

2шт.

10

1800030C1

BRACKET

- mounting, coolant filter

1шт.

11

603046R1

SPACER,3/8" X-Strng Pipe x 7/8"

- pipe, 3/8 x 13/16 inch

2шт.

25501R1

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 8

- hex, 3/8 NC x 3-3/4 inch

1шт.

24845R1

BOLT,Hex, 3/8" - 16 x 4", Gr 8

1шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

- flat, 13/32 x 13/16 x 5/64 inch

2шт.

12

444150

TEE,3/8"-18 NPTF Fem x 3/8"-18 NPTF Male Run

- pipe, 3/8-18 PT

1шт.

13

20990R1

PLUG

- pipe, 3/8-18

1шт.

14

1800185C91

TUBE

- coolant outlet (includes two sleeves 265204R1 and two nuts 265205R1)

1шт.

15

606618C1

ELBOW UNION

ELBOW - 90 degree coolant outlet tube

1шт.

16

A151931

FILTER

KIT - coolant filter and gasket

1шт.

17

24846R1

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 8

2шт.

18

25896R1

WASHER,13/32" x 13/16" x .09", HDN

- flat, 13/32 x 13/16 x 3/32 inch

7шт.

19

25522R1

NUT,3/8"-16, G8

- hex,3/8 inch NC

2шт.

20

492-11038

LOCK WASHER,3/8"

1шт.

21

25523R1

NUT,3/8"-24, G8

- hex, 3/8 inch NF, Grade 8

1шт.

22

690206C1

STUD,3/8" - 24 x 2 1/4", Grade 8

- rear upper, 3/8-16 x 3/8-24

1шт.

23

24845R1

BOLT,Hex, 3/8" - 16 x 4", Gr 8

1шт.

24

25501R1

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 8

- hex, 3/8 NC x 3-3/4 inch

1шт.
