Запчасти Case IH 1670 (9D-10) - HORIZONTAL GRAIN ELEVATOR HEAD, (CONT) (16) - GRAIN ELEVATORS & AUGERS

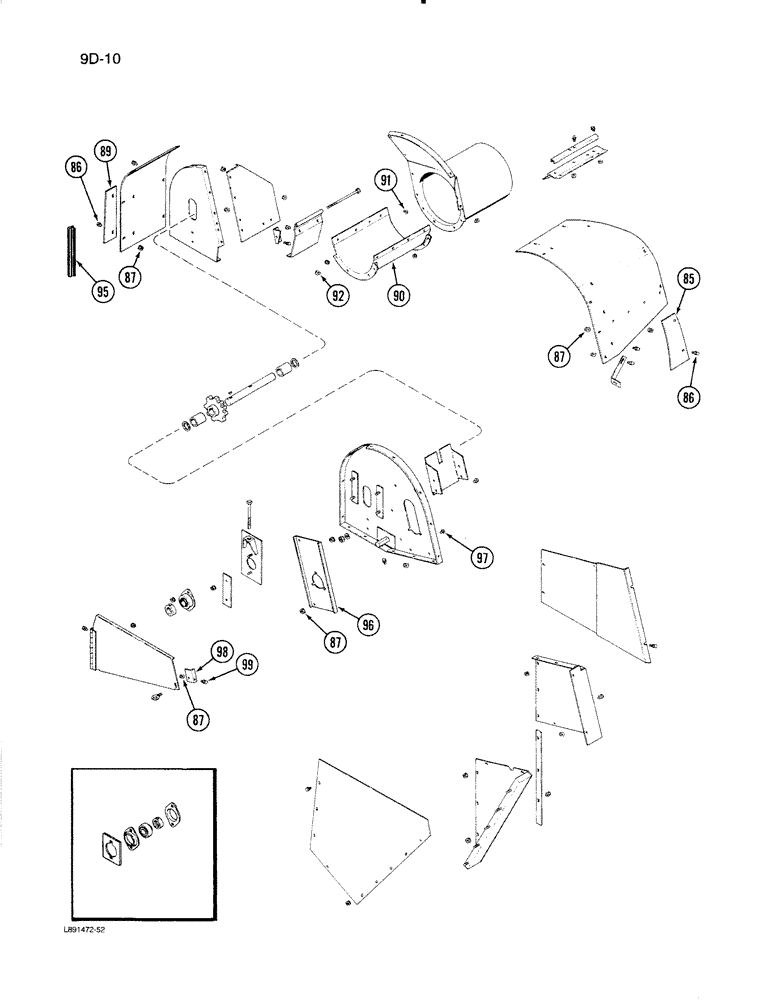

Схема запчастей Case IH 1670 - (9D-10) - HORIZONTAL GRAIN ELEVATOR HEAD, (CONT) (16) - GRAIN ELEVATORS & AUGERS
96
86
95
90
98
92
86
87
85
91
99
87
87
87
97
89

Артикул

Название

Примечание

Количество

85

1321231C1

PLATE

- sealing, head

1шт.

86

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

- hex flange, 5/16 NC x 1/2 inch

4шт.

87

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock. 5/16 inch NC

31шт.

89

1321232C1

PLATE

- sealing, rear

1шт.

90

1321130C1

TROUGH

- auger

1шт.

91

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 1/2 inch

2шт.

92

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

4шт.

95

1321262C1

SEAL

- side, head

2шт.

96

1321129C1

PLATE

- bearing, auger, right

1шт.

97

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 1/2 inch

2шт.

98

1317792C2

ANGLE

BRACKET - shield

1шт.

99

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

1шт.

Выбрано товаров: 12
