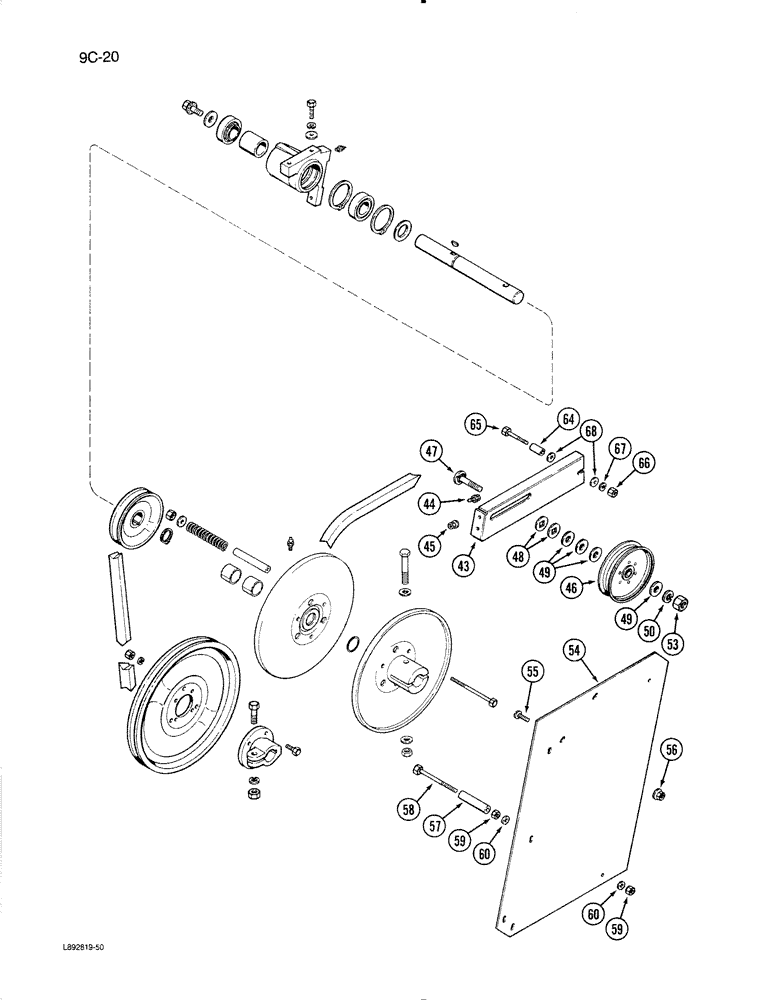

Запчасти Case IH 1670 (9C-20) - SLOW SPEED FAN DRIVE, (CONT) (15) - BEATER & CLEANING FANS

43

185270C1

SUPPORT

- idler

1шт.

44

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- flanged hex lock, 5/16 NC x 3/4 inch

2шт.

45

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flanged hex lock, 5/16 inch NC

2шт.

46

564745R91

PULLEY

- idler, 5-1/2 inch OD

1шт.

47

598820R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 5

BOLT - round head square neck, 5/8 NC x 2-1/2 inch

1шт.

48

N11720

WASHER

- square hole flat, 21/32 x 1-1/4 x 3/32 inch

2шт.

49

NLS

NO LONGER SERVICED

- flat, 21/32 x 1-5/16 x 5/64 inch

4шт.

50

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

53

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

1шт.

54

181372C1

SHIELD

- slow speed fan drive

1шт.

55

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss, 5/16 NC x 1 inch

2шт.

56

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flanged hex lock, 5/16 inch NC

2шт.

57

PO22778

SPACER,1/4" Pipe x 2"

- pipe, 1/4 x 2 inch

2шт.

58

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

59

120376

NUT,5/16"-18, G5

2шт.

60

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

6шт.

62

REF

INSTRUCTION

DRIVE ASSEMBLY - (See Figure 9C-12)

1шт.

63

REF

INSTRUCTION

SHAFT - cleaning fan (See Figure 9C-10, Cleaning Fan and Shields)

1шт.

64

612233R1

SPACER,5/8" Tube x 1 1/8"

- 13/32 x 5/8 x 1-3/16 inch

1шт.

65

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

66

120377

NUT,3/8" - 16, Gr 5

1шт.

67

492-11038

LOCK WASHER,3/8"

NC 3/8"

1шт.

68

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch

2шт.
