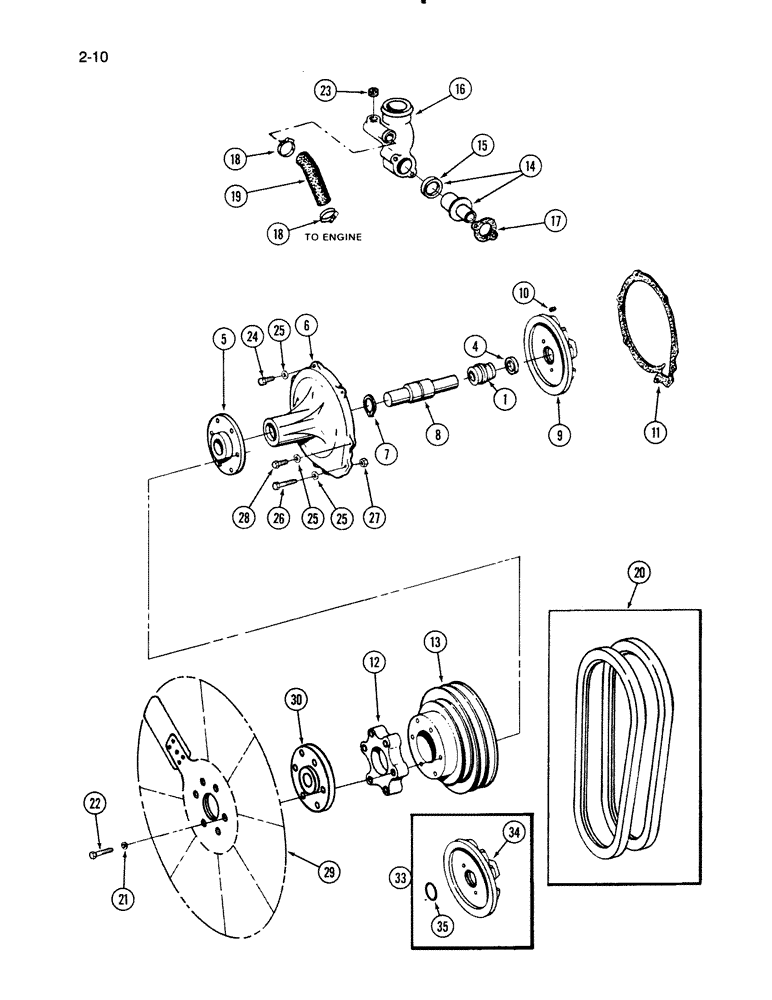

Запчасти Case IH 1670 (2-10) - FAN, BELTS, THERMOSTAT AND WATER PUMP, DTI466C ENGINE (01) - ENGINE

673162C94

PUMP, WATER

PUMP ASSEMBLY - water (with hub pulley) new

1шт.

749908C91

REMAN-WATER PUMP

PUMP ASSEMBLY - water (with hub pulley) remanufactured

1шт.

1928143C1

CORE-WATER PUMP

Retun Number

1шт.

687161C92

KIT

SEAL KIT - water pump (Use with 676320C1), Includes: Ref. 1 and 4

1шт.

1

NSS

NOT SOLD SEPARAT

SEAL- pump

1шт.

4

NSS

NOT SOLD SEPARAT

SEAT - pump

1шт.

5

675033C1

HUB

HUB - pulley, water pump

1шт.

6

675806C3

HOUSING

HOUSING - bearing, water pump

1шт.

7

272842R1

SNAP RING,1.875", Int, #187

RING - retaining, 2-5/64 inch

1шт.

8

627785C91

BEARING ASSY,47.63mm OD x 177.8mm L

BEARING AND SHAFT ASSEMBLY - pump

1шт.

9

676320C1

IMPELLER

IMPELLER - water pump

1шт.

10

680481C1

PIN

PIN - dowel, 1/4 x 5/8 inch

2шт.

11

675808C1

GASKET

GASKET - housing, water pump

1шт.

12

673013C1

SPACER

SPACER - fan

1шт.

13

1800183C1

PULLEY

PULLEY - water pump, triple groove

1шт.

14

684739C1

THERMOSTAT

THERMOSTAT - coolant, 190 degree F.

1шт.

15

615175C91

SEAL

SEAL - thermostat

1шт.

16

689061C1

HOUSING

HOUSING - thermostat

1шт.

17

675384C1

GASKET

GASKET - thermostat housing

1шт.

18

681896C1

HOSE CLAMP,#20, .81/1.75 Type F Worm, W/liner

CLAMP - thermostat bypass housing hose

2шт.

19

672242C1

HOSE,1.19" ID x 3.44"

Thermostat By-Pass Housing

1шт.

20

537072R92

SET OF BELTS,64.75" L

V-Belt, Fan (Consists of matched set of 2 belts)

1шт.

21

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

6шт.

22

21318R1

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

BOLT - hex, 3/8 NC x 2-1/2 inch Grade 8

6шт.

23

444783

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - pipe, 3/8-18

1шт.

24

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G8, Full Thd

1шт.

25

25896R1

WASHER,13/32" x 13/16" x .09", HDN

WASHER - flat, 13/32 x 13/16 x 3/32 inch

8шт.

26

24844R1

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 8

BOLT, Hex, 3/8"-16 x 3 1/2", G8

2шт.

27

25522R1

NUT,3/8"-16, G8

NUT - hex, 3/8 inch NC

2шт.

28

24842R1

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

BOLT, Hex, 3/8"-16 x 1 3/4", G8

2шт.

29

1275705C1

HALF BLADE

BLADE - fan

1шт.

30

1979466C1

SPACER

SPACER - fan

1шт.

33

1810366C91

TURBINE

KIT - pump impeller and seal, Includes: Ref. 34 and 35

1шт.

34

NSS

NOT SOLD SEPARAT

IMPELLER - pump (Order 1810366C91)

1шт.

35

1802812C1

O-RING

O-RING - 1-27/64 x 1/16 inch

1шт.

1810505C91

GASKET KIT

KIT - seal (Includes Ref. 35)

1шт.
