Запчасти Case IH 1670 (9C-06) - DISCHARGE BEATER BOTTOM, SPECIALTY CROP COMBINE, SPRING LOADED (15) - BEATER & CLEANING FANS

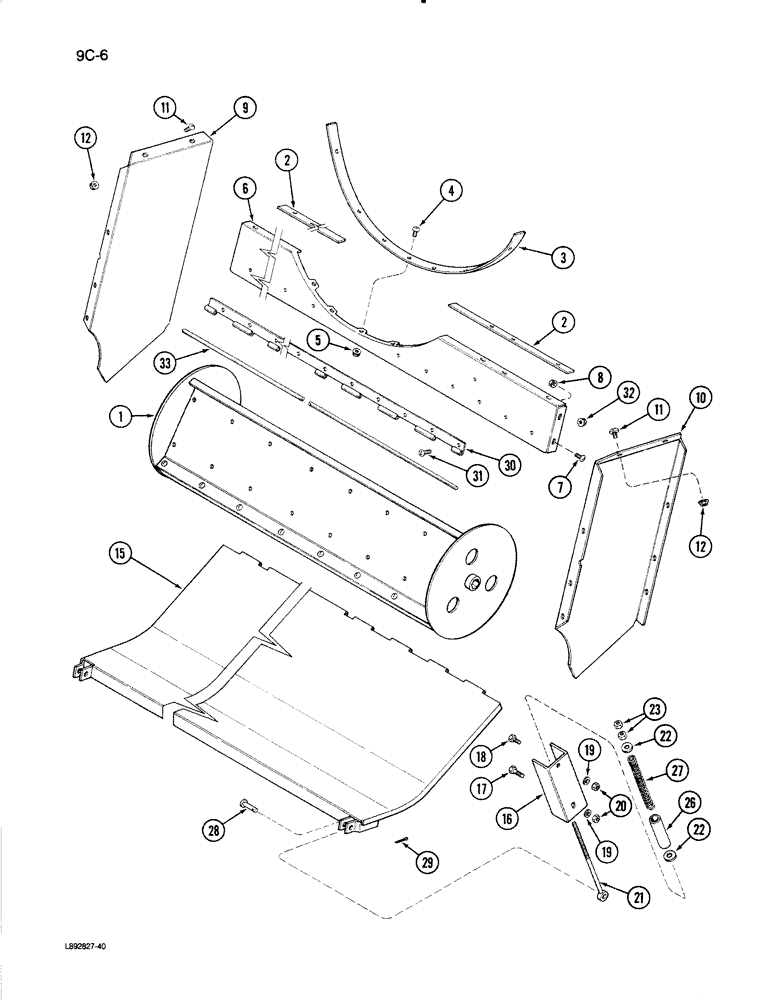

Схема запчастей Case IH 1670 - (9C-06) - DISCHARGE BEATER BOTTOM, SPECIALTY CROP COMBINE, SPRING LOADED (15) - BEATER & CLEANING FANS
9
6
27
1
28
33
23
8
12
11
5
19
22
2
12
11
31
4
2
10
3
20
26
29
15
16
7
18
32
19
17
30
22
21

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

BEATER ASSEMBLY - discharge (See Figure 9C-2)

1шт.

2

182891C1

PLATE

STRIP - bulkhead rear filler

2шт.

3

182898C1

SUPPORT

STRIP - housing filler rear

1шт.

4

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

7шт.

5

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

7шт.

6

182929C1

SUPPORT

- rear lower housing

1шт.

7

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

10шт.

8

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

10шт.

9

182946C1

DEFLECTOR

- discharge, left

1шт.

10

182947C1

DEFLECTOR

- discharge, right

1шт.

11

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

12шт.

12

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

12шт.

15

182924C2

DOOR

BOTTOM ASSEMBLY - beater

1шт.

16

182896C1

SUPPORT

- bottom spring

2шт.

17

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

2шт.

18

186917C1

SCREW

BOLT - hex special, 3/8 NC x 3/4 inch

2шт.

19

25544R1

WASHER,13/32" x 13/16" x .134", HDN

- hardened

4шт.

20

359783C1

LOCK NUT

- lock, 3/8 inch NC

4шт.

21

182892C2

BOLT,1/2" - 13 x 330mm

EYEBOLT - beater bottom

2шт.

22

22770R1

WASHER

- flat, 17/32 x 1-1/2 x 5/32 inch

4шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

26

182981C1

SPACER

- beater bottom

2шт.

27

391745R1

SPRING

- beater bottom

2шт.

28

21806R1

HEADED PIN,1/2" x 1 3/4"

PIN - clevis, 1/2 x 1-3/4 inch

2шт.

29

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

30

182894C1

HINGE

- beater bottom

2шт.

31

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

10шт.

32

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

10шт.

33

182977C1

ROD

- bottom hinge

1шт.

Выбрано товаров: 29
