Запчасти Case IH 1670 (9B-44) - CHAFFER SIEVE, (CONT) (14) - ROTOR, CONCANVES & SIEVE

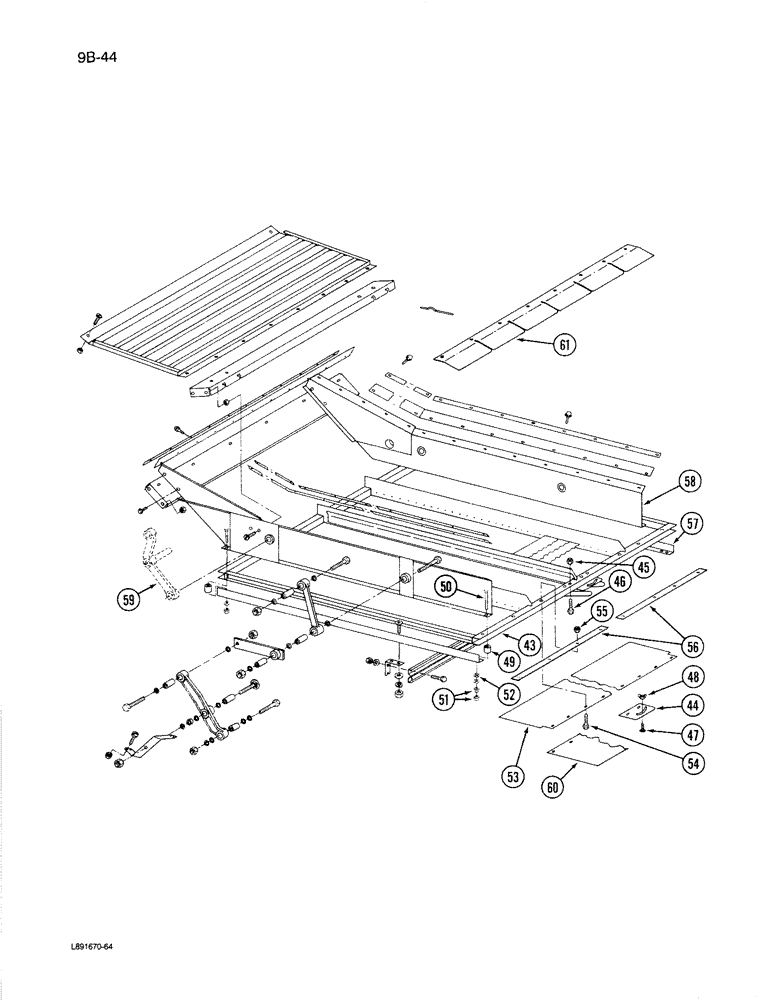

Схема запчастей Case IH 1670 - (9B-44) - CHAFFER SIEVE, (CONT) (14) - ROTOR, CONCANVES & SIEVE
55
52
47
51
44
54
46
57
61
48
58
59
56
60
43
53
49
50
4

Артикул

Название

Примечание

Количество

43

1330685C1

GRAIN SIEVE

SIEVE ASSEMBLY - 1-5/8 close slat chaffer (Corn standard) (Optional for specialty crop and grain)(Includes Ref. No. 44)

1шт.

43

1330684C1

GRAIN SIEVE

SIEVE ASSEMBLY - 1-1/8 adjustable chaffer (Standard for specialty crop and grain)(Includes Ref. No. 44)

1шт.

43

1330686C1

GRAIN SIEVE

SIEVE - 1-5/8 chaffer (Optional for specialty crop and grain)(Includes Ref. No. 44)

1шт.

43

1319092C3

GRAIN SIEVE

SIEVE ASSEMBLY - Peterson chaffer (Parts accessory)

1шт.

44

186675C1

ADJUSTING PLATE

- shoe lever

1шт.

45

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

46

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

47

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT - round head square neck, 1/4 NC x 1/2 inch

1шт.

48

126177

WING NUT

NUT - wing, 1/4 inch NC

1шт.

49

612233R1

SPACER,5/8" Tube x 1 1/8"

- 13/32 x 5/8 x 1-3/16 inch

2шт.

50

897520R1

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 8

- hex, 3/8 NC x 2-3/4 inch, Grade 8

2шт.

51

21333R1

NUT,3/8"-16, G8

- hex, 3/8 inch NC, Grade 8

4шт.

52

366862C1

LOCK WASHER,3/8"

3/8"

2шт.

53

195186C2

SEAL

SEAL - chaffer

1шт.

54

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

8шт.

55

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

8шт.

56

1338343C1

RETAINER

- sieve, left

1шт.

56

1338344C1

RETAINER

- sieve, right

1шт.

57

186370C1

ANGLE

- chaffer support, right

1шт.

58

185431C4

RAIL

- chaffer, right

1шт.

59

1321374C91

LEVER ASSY.

LEVER ASSEMBLY - chaffer drive hanger (Refer to shaker shaft and auger drive)

2шт.

60

1302784C1

STRIP

- chaffer extension flap

1шт.

61

1319258C1

COVER

- chaffer finger

1шт.

Part of parts accessary kit P/N 1319278C91

1шт.

1319278C91

PACKAGE

KIT - parts accessory, alfalfa, Includes: Ref. 61 and parts on Figure 9B-40

1шт.

Выбрано товаров: 25
