Запчасти Case IH 1670 (2-08) - ROTARY AIR SCREEN CHUTE (01) - ENGINE

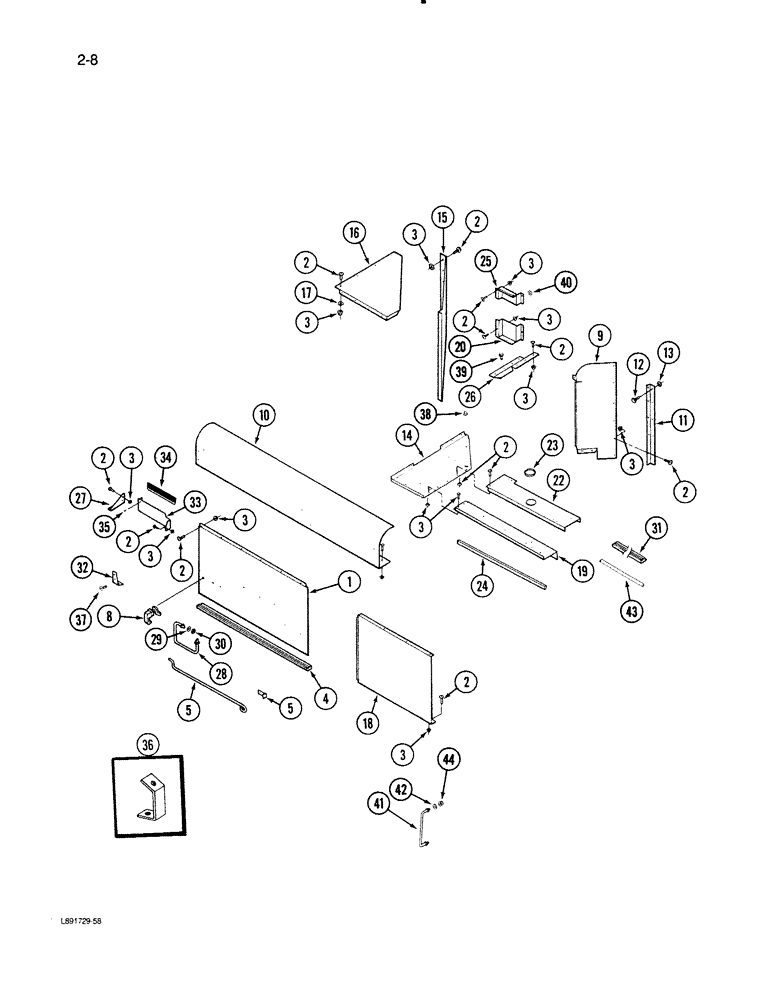

Схема запчастей Case IH 1670 - (2-08) - ROTARY AIR SCREEN CHUTE (01) - ENGINE
22
2
40
8
3
37
2
3
3
16
3
12
2
17
2
3
34
2
27
13
38
29
5
14
18
3
32
3
4
3
42
19
43
5
2
44
2
2
3
31
15
30
3
24
26
1
38
9
10
2
3
11
36
20
33
35
23
28
41
25
2

Артикул

Название

Примечание

Количество

1

1321245C1

DOOR

- radiator access

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss, 5/16 NC x 1/2 inch

84шт.

3

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

92шт.

4

1319691C1

SEAL

SEAL - radiator access door, bottom

1шт.

5

1319697C1

SUPPORT

- rod mounting

1шт.

6

362123R1

CLIP

- trim

1шт.

7

183444C1

ROD

- door

1шт.

8

1302494C2

LATCH

- access door

2шт.

9

1317998C1

DEFLECTOR

- screen chute

1шт.

10

1317758C1

CHUTE (DOWNWARD)

CHUTE - air screen top

1шт.

11

1317999C1

SUPPORT

- deflector

1шт.

12

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

19шт.

13

495-21044

WASHER,3/8"

(flat, 13/32 x 1 x 3/64 inch) 3/8"

11шт.

14

1957403C1

SUPPORT

- bottom rear

1шт.

15

1317756C2

SUPPORT

- screen chute rear

1шт.

16

1979419C1

SUPPORT

- screen chute, upper

1шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

5шт.

18

1321305C1

PLATE

SUPPORT - front side

1шт.

19

1321306C1

CHUTE (DOWNWARD)

CHUTE - bottom rear outlet

1шт.

20

1317761C1

SKIRT

- oil cooler

1шт.

21

1317704C1

SUPPORT

- top chute mounting

1шт.

22

1319704C1

PLATE

SUPPORT - radiator clean out

1шт.

23

1302758C1

PLUG

- clean out hole

1шт.

24

1321353C1

SEALING STRIP

SEAL - door hinge

1шт.

25

1321146C1

SKIRT

- oil cooler, upper

1шт.

26

1319682C1

PLATE

SUPPORT - bottom front

1шт.

27

1968548C1

SUPPORT

- chute discharge

1шт.

28

1321939C1

ROD

BAR - assist handle

1шт.

29

195-106

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 5/64 inch

2шт.

30

905263R1

NUT,M12 x 1.75, Cl 10

NUT - hex prevailing torque, M12, Grade 10

2шт.

31

1319817C1

STRIP

SEAL - radiator door

2шт.

32

1317718C1

BRACKET

- door lock

1шт.

33

1968546C1

SUPPORT

- discharge chute

1шт.

34

1338012C1

BRUSH, COMMUTATOR

BRUSH - block off

1шт.

35

196880C1

RIVET

- mandrel

2шт.

36

561915R1

BRACKET

SUPPORT - light

1шт.

37

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 x 3/4 inch

2шт.

38

195800C1

GROMMET

- condensate hose plug

1шт.

39

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

18шт.

40

106969R1

WASHER

- flat, 11/32 x 1-1/2 x 3/64 inch

2шт.

41

1321939C2

ROD

HANDLE - assist

1шт.

42

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

2шт.

43

1321354C2

SEAL

SEAL - radiator, top and bottom

2шт.

44

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

4шт.

1979464C1

SUPPORT

BRACKET - seal mounting

1шт.

Выбрано товаров: 45
