Запчасти Case IH 1670 (9B-32) - CONCAVES CONTROL (14) - ROTOR, CONCANVES & SIEVE

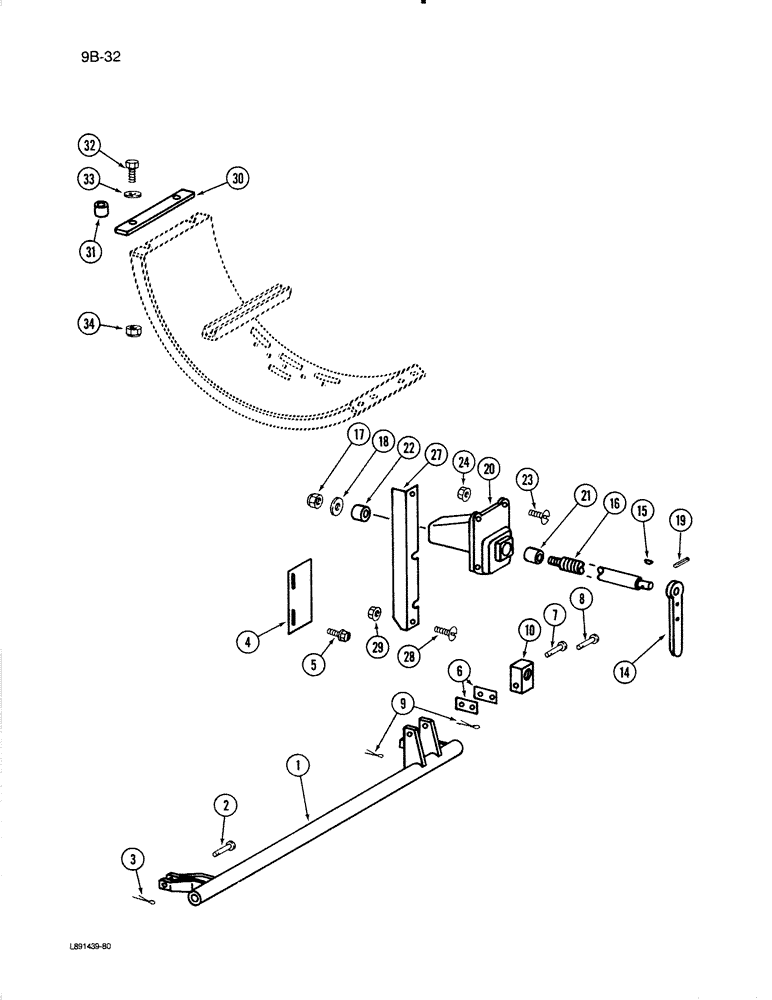

Схема запчастей Case IH 1670 - (9B-32) - CONCAVES CONTROL (14) - ROTOR, CONCANVES & SIEVE
22
30
31
6
8
28
17
7
2
24
27
16
18
4
5
10
9
15
19
29
21
23
14
20
33
34
32
3
1

Артикул

Название

Примечание

Количество

1

191423C1

LEVER ASSY.

LEVER - concave control

1шт.

2

21939R1

HEADED PIN,1/2" x 1 7/16"

PIN - clevis

2шт.

3

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

4

188168C1

PLATE

BAR - concave indicator

1шт.

5

22844R1

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW, SELF TAPPING, Hex Hd, #10 x 1/2"

2шт.

6

192888C1

PLATE

BAR - concave control, upper

2шт.

7

21814R1

HEADED PIN,1/2" x 3"

PIN - clevis, 1/2 x 3 inch long

1шт.

8

22899R1

HEADED PIN,1/2" x 2 3/8"

PIN, HEADED, 1/2" x 2 3/8"

1шт.

9

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

10

192886C1

NUT

- concave control adjusting

1шт.

14

170282C1

HANDLE

- concave control

1шт.

15

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

Pulley #9, 3/16" x 3/4", HT

1шт.

16

192885C1

SHAFT

- concave adjusting

1шт.

17

20033R1

LOCK NUT

NUT - hex lock, 5/8 inch NC

1шт.

18

25537R1

WASHER,21/32" x 1 5/16" x .095", HDN

- flat, hardened

2шт.

19

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

20

192883C93

SUPPORT

HOUSING ASSEMBLY - concave control, Includes: Ref. 21 and 22

1шт.

21

551068R1

BUSHING,22.28mm ID x 25.43mm OD x 22.23mm L

- concave control housing

1шт.

22

568921R1

BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L

- concave control housing

1шт.

23

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

- slotted truss head, 3/8 NC x 1-1/4 inch

4шт.

24

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

27

182577C1

ANGLE

- housing support

1шт.

28

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 x 3/4 inch

2шт.

29

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

30

186784C2

BAR

- grate hanger

3шт.

31

600179R1

SPACER,13.9mm ID x 21.34mm OD x 14.3mm L

Grate and cage bar 1/2" X-Strng Pipe x 9/16"

6шт.

32

236484R1

BOLT,Hex, 1/2" - 13 x 2", Gr 8

6шт.

33

25710R1

WASHER

- hardened flat, 17/32 x 1-1/16 x 5/64 inch

6шт.

34

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

6шт.

Выбрано товаров: 29
