Запчасти Case IH 1670 (9B-22) - CAGE, FRONT (14) - ROTOR, CONCANVES & SIEVE

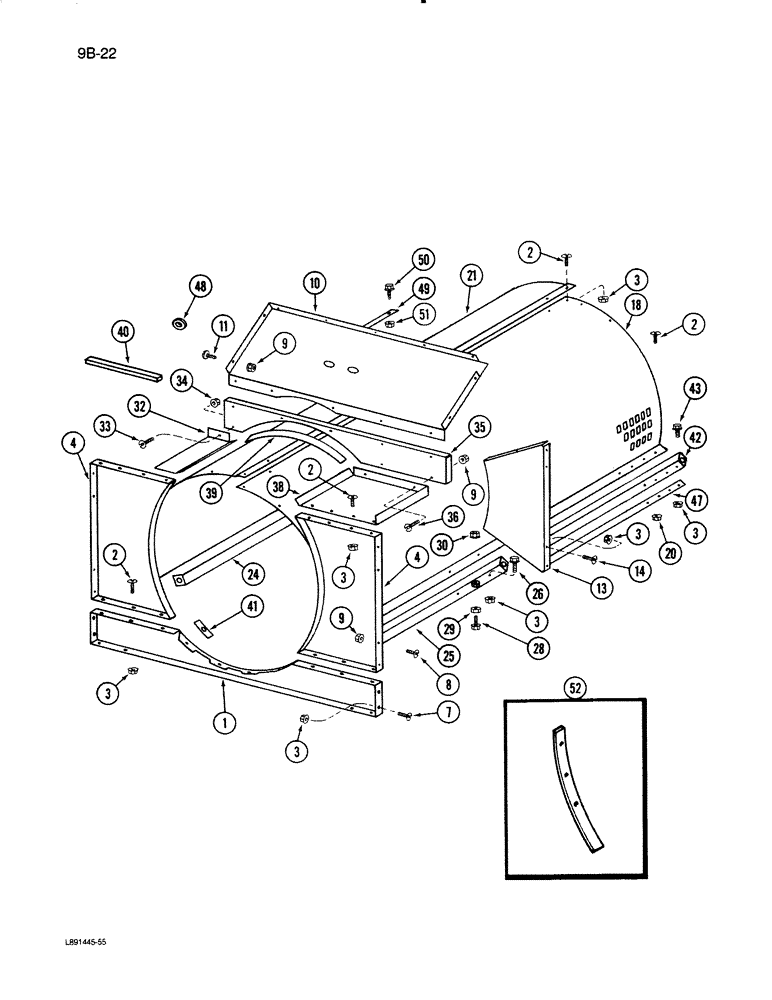

Схема запчастей Case IH 1670 - (9B-22) - CAGE, FRONT (14) - ROTOR, CONCANVES & SIEVE
43
18
32
2
40
51
9
3
48
14
3
35
2
3
2
39
25
2
24
20
33
3
30
4
49
47
36
21
3
50
28
34
36
9
26
29
41
13
3
1
3
52
4
42
7
6
11
9
10

Артикул

Название

Примечание

Количество

1

192297C2

SUPPORT

- lower seal

1шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 x 3/4 inch

1шт.

3

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

4

1338055C1

SUPPORT

- rotor cage, front

1шт.

4

1338045C1

SUPPORT

- rotor cage, right front

1шт.

7

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

LOCK, Sltd Truss Hd, 3/8"-16 x 3/4"

4шт.

8

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

6шт.

9

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

10

193152C1

SUPPORT

- front grain tank

1шт.

11

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

9шт.

13

1338056C1

SUPPORT

- rotor cage, intermediate

3шт.

13

1338044C1

SUPPORT

- rotor cage, right intermediate

1шт.

14

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

LOCK, Sltd Truss Hd, 3/8"-16 x 3/4"

18шт.

18

1318829C1

CAGE

SUPPORT - rotor solid, left

1шт.

21

1318419C2

CAGE

SUPPORT - rotor, right

1шт.

24

188333C1

SUPPORT

- cage, right

1шт.

25

1309191C1

SUPPORT

- cage, left

1шт.

26

1319250C1

LOCK BOLT,Hex, Flg, 3/8" - 16 x 1", W/ Scotch Grip

BOLT - hex flange, 3/8 NC x 1 inch

14шт.

27

931008R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5, Full Thd

- hex, 1/2 NC x 3-1/2 inch

2шт.

28

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

- hex flange, 1/2 NC x 1 inch

2шт.

29

25933R1

JAM NUT,Jam, 1/2"-13, G8

- hex jam, 1/2 inch NC

2шт.

30

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

2шт.

32

193862C1

SUPPORT

- gear housing inner extension

1шт.

33

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

3шт.

34

488837C1

SPRING NUT

- rear hood support

2шт.

35

186169C1

SUPPORT

- grain tank to cage top

1шт.

36

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss, 5/16 NC x 1/2 inch

10шт.

38

186168C1

SUPPORT

- side shoot to cage forward

1шт.

39

NSS

NOT SOLD SEPARAT

SEAL - grain tank support (Order 191498C1)

1шт.

40

NSS

NOT SOLD SEPARAT

SEAL - grain tank support (Order 73220C1, Serial Range: cut-length)

2шт.

41

186797C2

SUPPORT

- cage filler, rear

1шт.

42

185386C1

SUPPORT

- cage, left

1шт.

43

1319250C1

LOCK BOLT,Hex, Flg, 3/8" - 16 x 1", W/ Scotch Grip

BOLT - hex flange, 3/8 NC x 1 inch

1шт.

43

186917C1

SCREW

BOLT - hex special, 3/8 NC x 3/4 inch

19шт.

47

183323C1

STRAP

BAR - cage grate

1шт.

48

198822C1

GROMMET,6.35mm ID x 41.1mm OD x 26.9mm Thk

- 1/4 inch 1D

1шт.

48

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

- light harness, right

1шт.

48

195803C1

GROMMET

- tube, 3/8 inch OD

1шт.

49

186785C2

REINFORCEMENT

BAR - cage reinforcement, front

1шт.

50

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

- hex flange, 1/2 NC x 1 inch

1шт.

51

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

1шт.

52

1318899C1

SUPPORT

- cage, left front

1шт.

Выбрано товаров: 42
