Запчасти Case IH 1670 (9B-20) - CONE (14) - ROTOR, CONCANVES & SIEVE

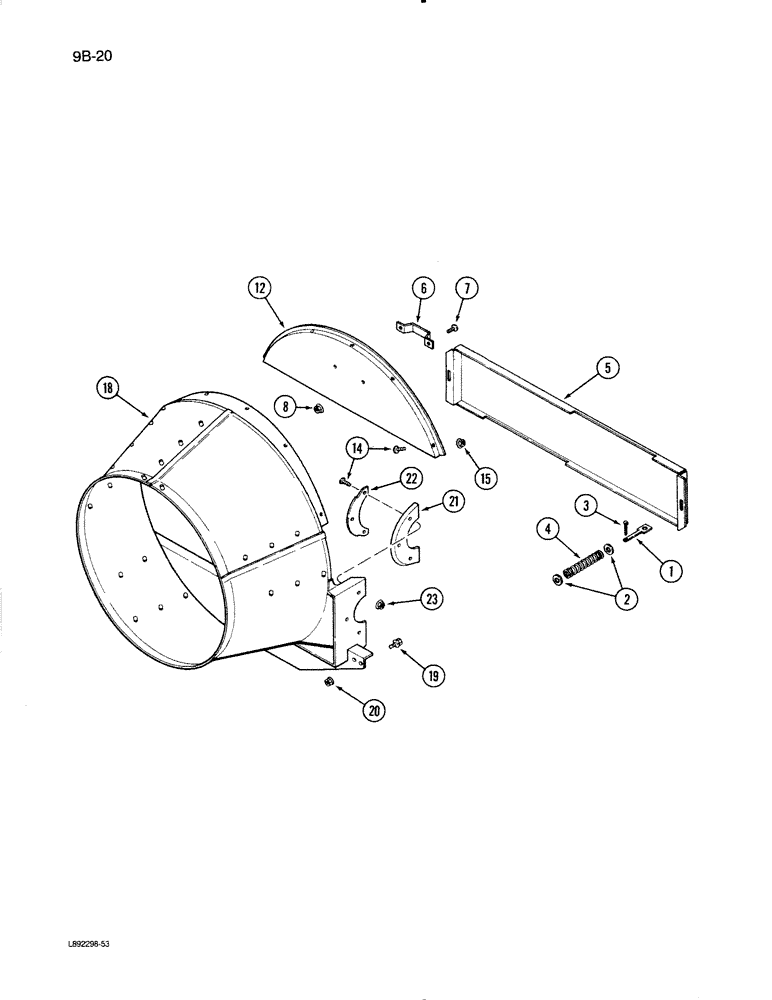

Схема запчастей Case IH 1670 - (9B-20) - CONE (14) - ROTOR, CONCANVES & SIEVE
18
12
5
15
1
8
3
7
2
20
6
4
19
23
21
22
14

Артикул

Название

Примечание

Количество

1

454502R1

LATCH

- separator, front door

2шт.

2

25709R1

WASHER

- flat, 13/32 x 13/16 x 3/32 inch, hardened

4шт.

3

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

4

M296

SPRING

- compression

2шт.

5

193436C2

DOOR

- separater, front

1шт.

6

160638C1

HANDLE

- rotor, front door

1шт.

7

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

2шт.

8

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

12

1300208C91

DOOR

ASSEMBLY - rotor, front

1шт.

14

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

5шт.

15

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

5шт.

18

1309419C2

CONE

ASSEMBLY - transition, specialty crop

1шт.

18

1317770C2

CONE

ASSEMBLY - transition

1шт.

19

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

- hex flange, 1/2 NC x 1-1/4 inch

4шт.

19

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch

4шт.

20

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

4шт.

20

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

21

195202C1

SEAL

- feeder

2шт.

22

195409C1

PLATE

- seal backup

2шт.

23

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

6шт.

Выбрано товаров: 20
