Запчасти Case IH 1670 (9B-18) - ROTOR, SPECIALTY CROP, (CONT) (14) - ROTOR, CONCANVES & SIEVE

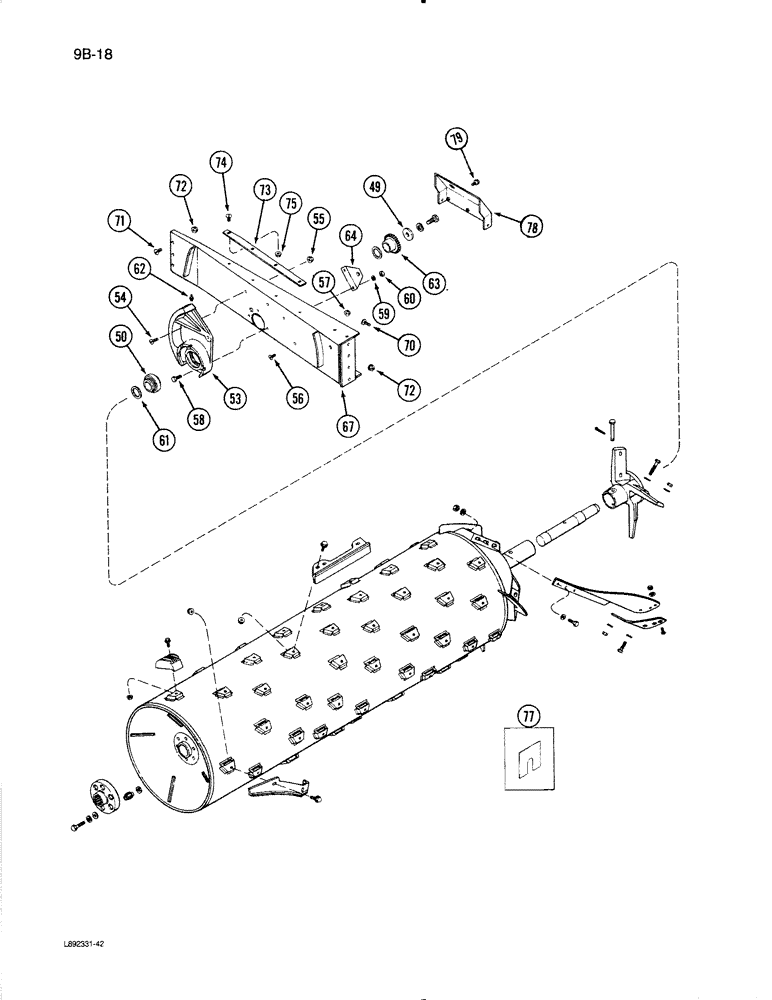

Схема запчастей Case IH 1670 - (9B-18) - ROTOR, SPECIALTY CROP, (CONT) (14) - ROTOR, CONCANVES & SIEVE
67
61
58
71
60
77
75
59
53
74
79
56
50
57
64
55
70
72
63
78
72
54
49
73
62

Артикул

Название

Примечание

Количество

49

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

- flat, 25/32 x 2-1/2 x 1/4 inch

1шт.

50

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

BEARING ASSEMBLY - rotor front

1шт.

53

1309076C1

BEARING HOUSING

- rotor front bearing

1шт.

54

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

- slotted truss head, 3/8 NC x 1-1/4 inch

2шт.

55

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

56

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

2шт.

57

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

58

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

59

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

60

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

61

183449C1

WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk

WASHER - front bearing housing

1шт.

62

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

63

198527C1

ROTOR

- multi-position tachometer

1шт.

64

1301239C1

BRACKET

- rotor transmitter

1шт.

67

193163C5

SUPPORT

- front bearing

1шт.

70

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- hex flange lock, 1/2 NC x 1 inch

4шт.

71

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

- hex flange, 1/2 NC x 1-1/4 inch

3шт.

72

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

7шт.

73

1308967C1

BAR

- rotor front door hold down

1шт.

74

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

4шт.

75

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

77

1324208C1

SHIM KIT

- rotor rasp

1шт.

78

182844C3

SHIELD

- sensor

1шт.

79

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

3шт.

Выбрано товаров: 24
