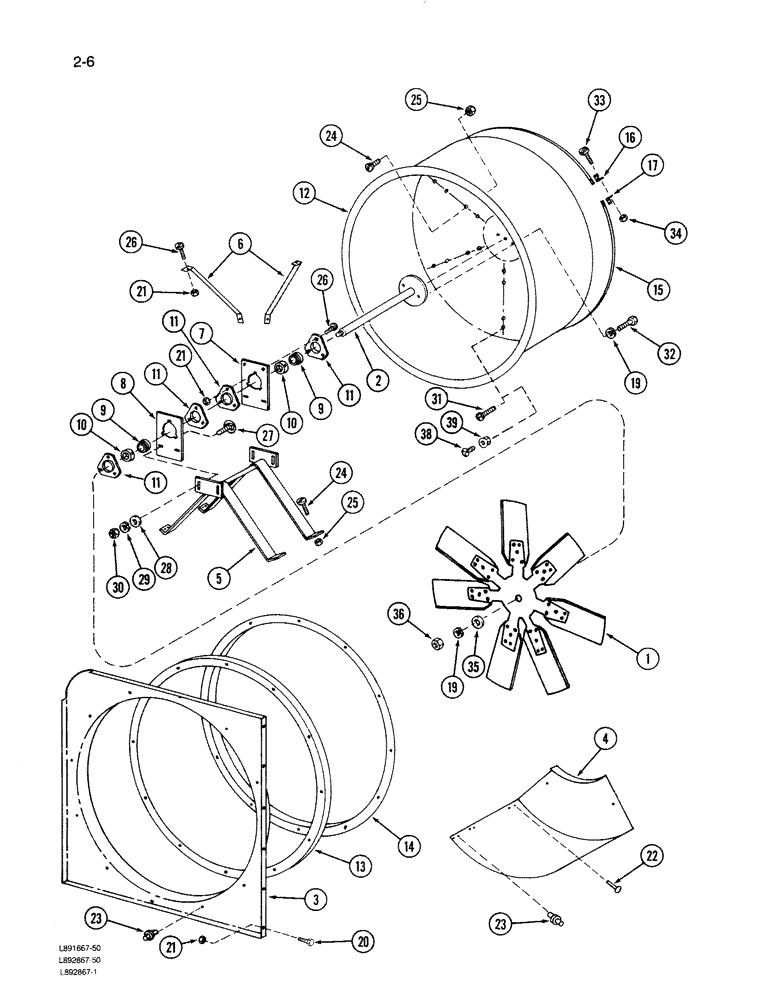

Запчасти Case IH 1670 (2-06) - ROTARY AIR SCREEN (01) - ENGINE

1

1957272C1

FAN

- rotary air screen

1шт.

2

1968544C1

SHAFT ASSY.

SHAFT - rotary air screen fan, with male threaded end

1шт.

1338442C1

HUB ASSY.

HUB - rotary screen fan

1шт.

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

Pulley #9, 3/16" x 3/4", HT

1шт.

3

1317755C2

ADAPTER

- rotary air screen

1шт.

4

194224C1

BAFFLE ASSY.

BAFFLE - rotary air screen

1шт.

5

194226C1

SUPPORT ASSY.

SUPPORT - bearing

1шт.

6

194221C2

STAY

SUPPORT - bearing

2шт.

7

164605C1

LARGE PLATE

SUPPORT - bearing flange

1шт.

8

164604C1

BAR

SUPPORT - bearing flange

1шт.

9

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

ASSEMBLY - shaft, rotary air screen

2шт.

10

455958R11

COLLAR,19.05mm ID x 32.94mm OD x 13.49mm W

ASSEMBLY - lock, bearing

2шт.

11

H333534

FLANGED BEARING

FLANGE - bearing

4шт.

12

1977217C1

SIEVE

- rotary screen, fine

1шт.

13

1338011C1

SEALING RING

- brush seal

1шт.

14

164627C1

RETAINER

FLANGE - brush seal

1шт.

15

164615C92

BRUSH, COMMUTATOR

BRUSH ASSEMBLY - rotary air screen, Includes: Ref. 16 and 17

1шт.

16

164616C1

ANGLE

CLIP - brush, short

1шт.

17

164617C1

ANGLE

CLIP - brush, long

1шт.

19

492-11038

LOCK WASHER,3/8"

3шт.

20

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

17шт.

20

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

2шт.

20

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss, 5/16 NC x 1/2 inch

20шт.

21

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

30шт.

22

104235

RIVET,FH, 3/16" x 1/2"

4шт.

23

163485C1

RIVET

- pop, 3/16 x 13/32 inch

15шт.

24

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss head, 1/4 x 1/2 inch

20шт.

25

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex, flange lock, 1/4 inch

20шт.

26

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

10шт.

27

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

4шт.

28

21496R1

WASHER

- flat, 11/32 x 3/4 x 7/64 inch

4шт.

29

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

30

9635082

NUT,5/16" - 18, Gr 5

4шт.

31

55077C1

RIVET

- 3/16 x 9/32 inch

15шт.

32

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

33

436736

SCREW,Slotted Pan Hd, #10-24 x 1"

- pan head slotted, No. 10 NC x 1 inch

1шт.

34

19910R1

LOCK NUT

- hex prevailing torque, No. 10 NC

1шт.

35

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

1шт.

36

125-10003

NUT,3/8"-16, G5, LH

- hex left hand thread, 3/8 inch NC

1шт.

38

159927

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

12шт.

39

174097C1

FLANGE NUT,Flg, USR, #10-24

- flange lock, No. 10-24 NC

12шт.
