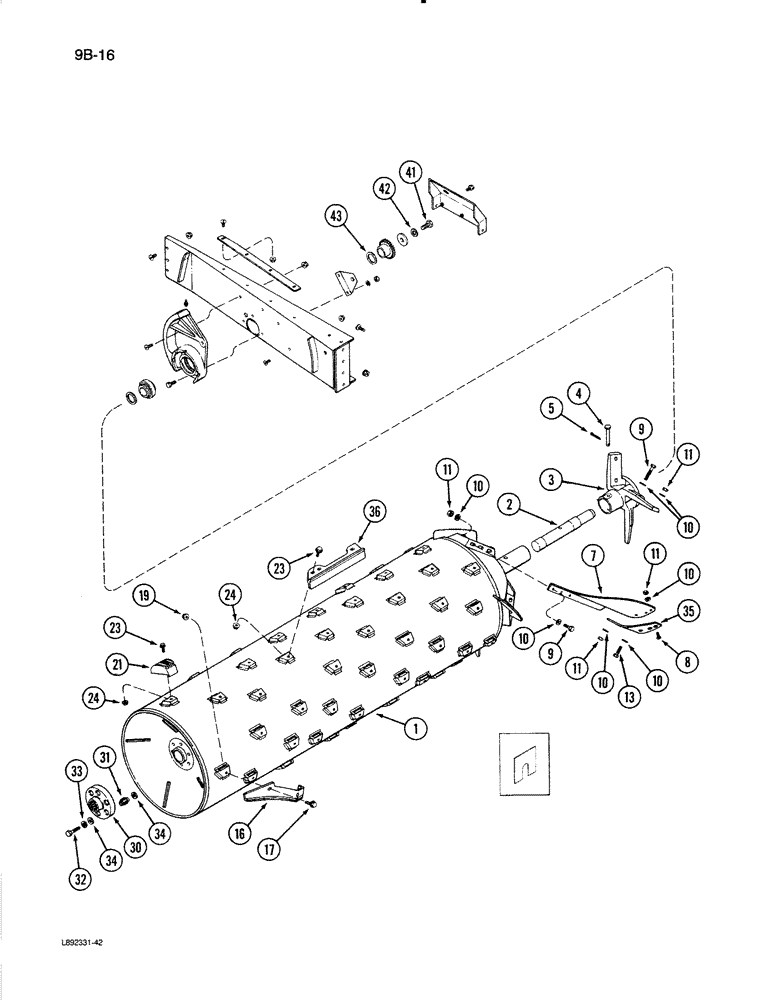

Запчасти Case IH 1670 (9B-16) - ROTOR, SPECIALTY CROP (14) - ROTOR, CONCANVES & SIEVE

1

1968741C2

ROTOR

ASSEMBLY - threshing, 24 inch chrome bean special (Custom Cutters) (Order 1327672C92), Includes: Ref. 2 - 36

1шт.

1

1327672C92

ROTOR

ASSEMBLY - threshing, edible bean, Includes: Ref. 2 - 36

1шт.

1

1317405C91

ROTOR

ASSEMBLY - threshing, rice, Includes: Ref. 2 - 36

1шт.

2

191545C1

SHAFT

- rotor front

1шт.

3

191546C2

IMPELLER

- rotor front

1шт.

4

22109R1

HEADED PIN

PIN - clevis, 3/4 x 4-1/2 inch

1шт.

5

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

1957446C1

BLADE

KIT - rotor, Includes: Ref. 7 - 13

1шт.

7

NSS

NOT SOLD SEPARAT

BLADE - rotor (Order 1957446C1)

3шт.

8

183254C1

HEX SOC SCREW,Flat Hd, 1/2"-13 x 1 1/2"

BOLT - blade retaining

9шт.

9

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch

9шт.

10

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

- flat, 17/32 x 1-1/4 x 3/16 inch

2шт.

11

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

24шт.

12

25281R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

- hex, 1/2 NC x 2-3/4 inch, Grade 8

3шт.

13

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex, 1/2 NC x 3 inch, Grade 8

3шт.

16

1317690C1

ANGLE

- knicker

3шт.

16

1968967C1

KIT

ANGLE - knicker, chrome

3шт.

17

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

- hex flange, 1/2 NC x 1-1/4 inch

6шт.

19

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex lock special, 1/2 inch NC

6шт.

21

1309175C1

BAR

- rasp, with spike, rice, Includes: Ref. 23 and 24

21шт.

21

1309336C1

BAR

- rasp, without spike, edible bean, Includes: Ref. 23 and 24

54шт.

21

1309336C1

BAR

- rasp, without spike, edible bean, Includes: Ref. 23 and 24

33шт.

21

1968743C1

BAR

- rasp, wihout spike chrome, Includes: Ref. 23 and 24

33шт.

21

1968970C1

BAR

- rasp, with spike, chrome, Includes: Ref. 23 and 24

21шт.

23

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

- hex flange, 1/2 NC x 1-1/4 inch

1шт.

24

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex lock special, 1/2 inch NC

1шт.

30

185166C91

HUB

COUPLING ASSEMBLY - rotor drive, Includes: Ref. 31

1шт.

31

180703C1

PACKAGE,SERVICE

BUSHING KIT - rotor drive hub

1шт.

32

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex, 1/2 NC x 3 inch, Grade 8

6шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

34

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

- hardened

12шт.

35

1309185C1

SUPPORT

BAR - wear (Chrome)

3шт.

36

1318976C1

BAR

- separator, edible and custom bean

3шт.

36

1968969C1

BAR

- separator, chrome, Includes: Ref. 41 - 43

3шт.

41

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

1шт.

42

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

43

S65975

WASHER,51.56mm ID x 69.85mm OD x 1.58mm Thk

- flat, 2-1/32 x 2-3/4 x 1/16 inch

1шт.
