Запчасти Case IH 1670 (9B-12) - ROTOR, GRAIN AND CORN (14) - ROTOR, CONCANVES & SIEVE

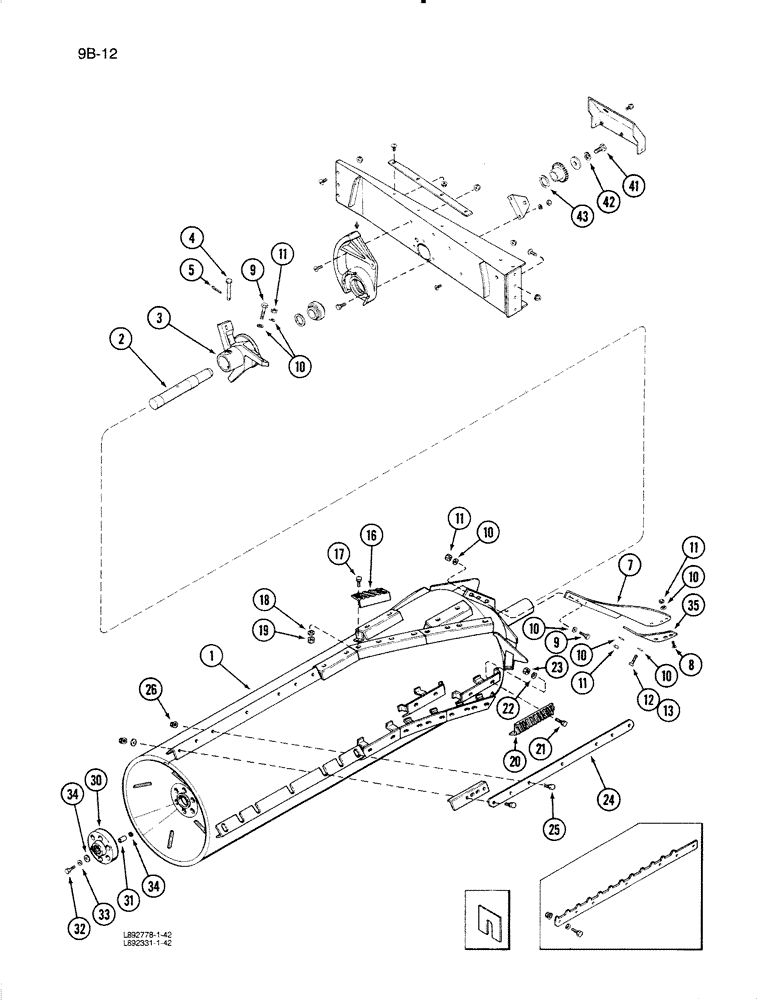

Схема запчастей Case IH 1670 - (9B-12) - ROTOR, GRAIN AND CORN (14) - ROTOR, CONCANVES & SIEVE
11
10
24
22
34
17
33
32
42
4
35
31
30
11
13
1
10
10
10
5
3
7
20
9
21
25
11
26
16
34
18
19
10
9
11
43
8
10
41
12
2
23

Артикул

Название

Примечание

Количество

1

1302214C96

ROTOR

ASSEMBLY - threshing, Includes: Ref. 2 - 35 and bolt

1шт.

2

191545C1

SHAFT

- rotor front

1шт.

3

191546C2

IMPELLER

- rotor front

1шт.

4

22109R1

HEADED PIN

PIN - clevis, 3/4 x 4-1/2 inch

1шт.

5

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

1957446C1

BLADE

KIT - rotor

1шт.

7

NSS

NOT SOLD SEPARAT

BLADE - rotor (Order 1957446C1)

3шт.

8

183254C1

HEX SOC SCREW,Flat Hd, 1/2"-13 x 1 1/2"

BOLT - blade retaining

9шт.

9

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch

9шт.

10

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

- flat, 17/32 x 1-1/4 x 3/16 inch

39шт.

11

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

24шт.

12

25281R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

- hex, 1/2 NC x 2-3/4 inch, Grade 8

3шт.

13

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex, 1/2 NC x 3 inch, Grade 8

3шт.

16

1308829C2

BAR

- helical rasp support

12шт.

16

1324583C1

BAR

- helical rasp support (Chrome)

12шт.

17

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

- hex, 3/8 NC x 1-1/4 inch, Grade 8

24шт.

18

25896R1

WASHER,13/32" x 13/16" x .09", HDN

- flat, 13/32 x 13/16 x 5/64 inch

24шт.

19

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

24шт.

20

1308668C1

RASP BAR

BAR - straight rasp

9шт.

20

1324582C1

BAR

- straight rasp, chrome

9шт.

21

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

- hex, 3/8 NC x 1-1/4 inch, Grade 8

18шт.

22

25896R1

WASHER,13/32" x 13/16" x .09", HDN

- flat, 13/32 x 13/16 x 5/64 inch

18шт.

23

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

18шт.

24

1303038C2

BAR

- rotor, rear straight

3шт.

24

1302103C3

BAR

- rotor rear, tooth

3шт.

24

1324580C1

BAR

- rotor, rear straight, chrome

3шт.

25

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex lock, 3/8 NC x 1-1/4 inch

21шт.

26

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

21шт.

30

185166C91

HUB

COUPLING ASSEMBLY - rotor drive

1шт.

31

180703C1

PACKAGE,SERVICE

BUSHING KIT - rotor drive hub

1шт.

32

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex, 1/2 NC x 3 inch, Grade 8

6шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

34

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

- hardened

12шт.

35

183253C2

BAR

- wear

3шт.

35

1309185C1

SUPPORT

BAR - wear (Chrome)

3шт.

183254C1

HEX SOC SCREW,Flat Hd, 1/2"-13 x 1 1/2"

BOLT - blade retaining

1шт.

41

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

1шт.

42

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

43

S65975

WASHER,51.56mm ID x 69.85mm OD x 1.58mm Thk

- flat, 2-1/32 x 2-3/4 x 1/16 inch

1шт.

Выбрано товаров: 39
