Запчасти Case IH 1670 (9B-08) - ROTOR DRIVE ADJUSTMENT (14) - ROTOR, CONCANVES & SIEVE

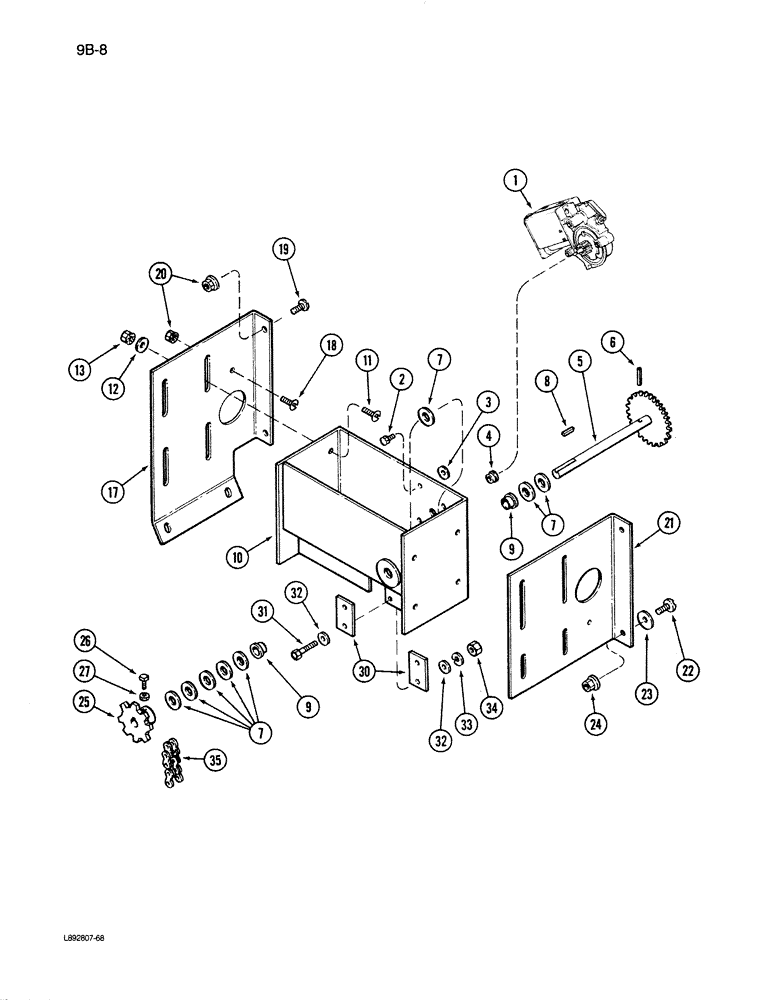

Схема запчастей Case IH 1670 - (9B-08) - ROTOR DRIVE ADJUSTMENT (14) - ROTOR, CONCANVES & SIEVE
26
25
22
8
2
33
13
7
9
6
30
32
9
24
18
17
20
34
11
21
7
31
23
32
12
1
4
35
10
5
27
19
3
1

Артикул

Название

Примечание

Количество

1

126573C1

MOTOR, ELECTRIC

MOTOR ASSEMBLY - electric

1шт.

2

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

3

21843R1

WASHER

- flat, 13/32 x 1 x 13/64 inch

3шт.

4

55825C1

BUSHING,8.03mm ID x 12.74mm OD x 9.65mm L

- electric motor

1шт.

5

194338C1

GEAR

SHAFT ASSEMBLY - rotor gear

1шт.

6

591225R1

PIN,5/32" x 1 1/4", Coiled

1шт.

7

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, hardened

8шт.

8

Q5024

KEY,3/16" Sq x 1", Par

1шт.

9

55826C1

BUSHING,15.9mm ID x 20.7mm OD x 12.7mm L

- gear shaft

2шт.

10

183227C1

SUPPORT ASSY.

SUPPORT ASSEMBLY - motor

1шт.

11

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

8шт.

12

21403R1

WASHER

- flat, 13/32 x 1 x 1/8 inch

8шт.

13

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

8шт.

17

188203C2

SUPPORT

- rotor adjusting, left

1шт.

18

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

- slotted truss head, 3/8 NC x 1-1/4 inch

2шт.

19

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 x 3/4 inch

2шт.

20

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

6шт.

21

194336C2

SUPPORT

- rotor adjusting, RH

1шт.

22

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

2шт.

23

614452R1

WASHER

- flat, 13/32 x 1-1/4 x 3/32 inch

2шт.

24

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

25

194337C1

SPROCKET

- control, 8 tooth

1шт.

26

127796

SET SCREW,Sq Hd, 1/4"-20 x 3/4"

Cup Pt Sq Hd, 1/4"-20 x 3/4"

2шт.

27

124818

JAM NUT,Hex, 1/4" - 20, Gr 5

2шт.

30

1302173C1

PAD

- motor support

2шт.

31

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

32

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

33

492-11038

LOCK WASHER,3/8"

2шт.

34

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

35

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - variable drive

1шт.

For service order 31 links of No. 2040 chain, one 457113R91 connecting link and two 457114R91 offset link.

1шт.
