Запчасти Case IH 1670 (9B-04) - ROTOR DRIVE, (CONT) (14) - ROTOR, CONCANVES & SIEVE

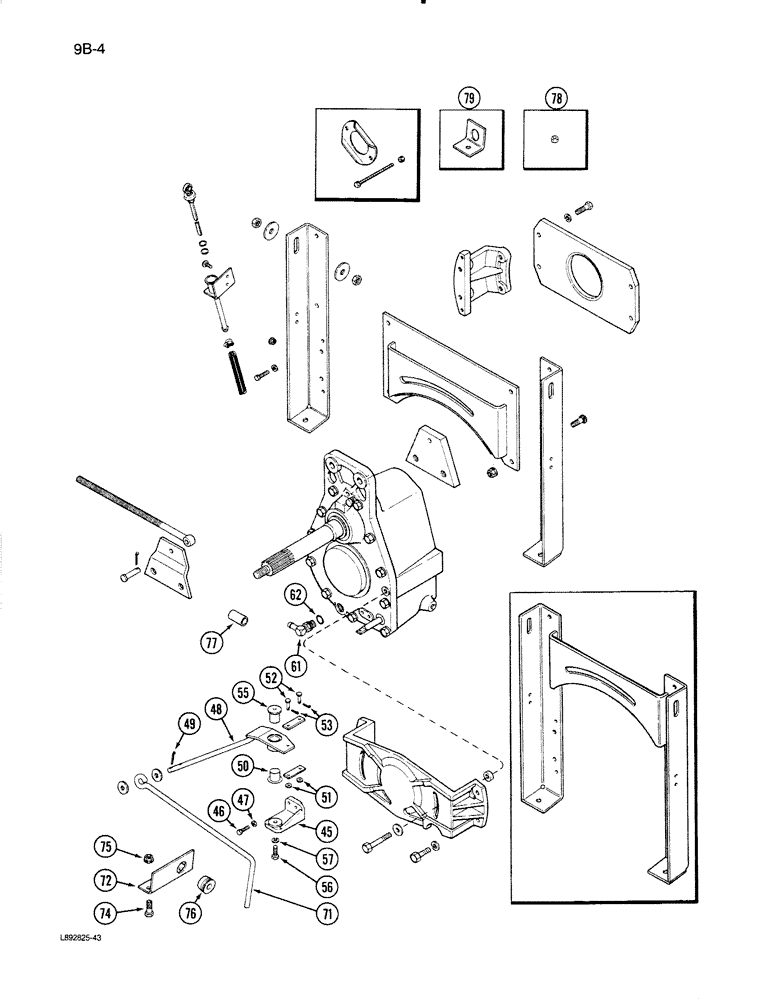

Схема запчастей Case IH 1670 - (9B-04) - ROTOR DRIVE, (CONT) (14) - ROTOR, CONCANVES & SIEVE
49
72
48
71
57
74
45
56
47
52
56
76
62
46
61
79
76
75
53
55
51
77

Артикул

Название

Примечание

Количество

45

1979167C1

SUPPORT ASSY.

SUPPORT - gear housing pivot

1шт.

46

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

46

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

47

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

48

1979164C1

LEVER

- rotor drive shift

1шт.

49

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

50

1979265C1

BUSHING

- shift lever

1шт.

51

25707R1

WASHER,.281" x 5/8" x .075", HDN

- flat, hardened

2шт.

52

21886R1

HEADED PIN,1/4" x 1"

PIN - headed, 1/4 x 1 inch

2шт.

53

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

55

188170C1

NUT

NUT - shift lever

1шт.

56

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

57

492-11038

LOCK WASHER,3/8"

1шт.

61

188272C1

ELBOW

- gear housing

1шт.

62

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

71

186648C2

ROD

- lever shaft control linkage

1шт.

72

188816C91

ANGLE

- support, rod lever control link

1шт.

74

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

75

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

2шт.

76

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- control rod

1шт.

77

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

SEAL - cover, oil hose

1шт.

78

1979327C1

SPACER

- lever

1шт.

79

1979564C1

SUPPORT

- shift lever

1шт.

Выбрано товаров: 23
