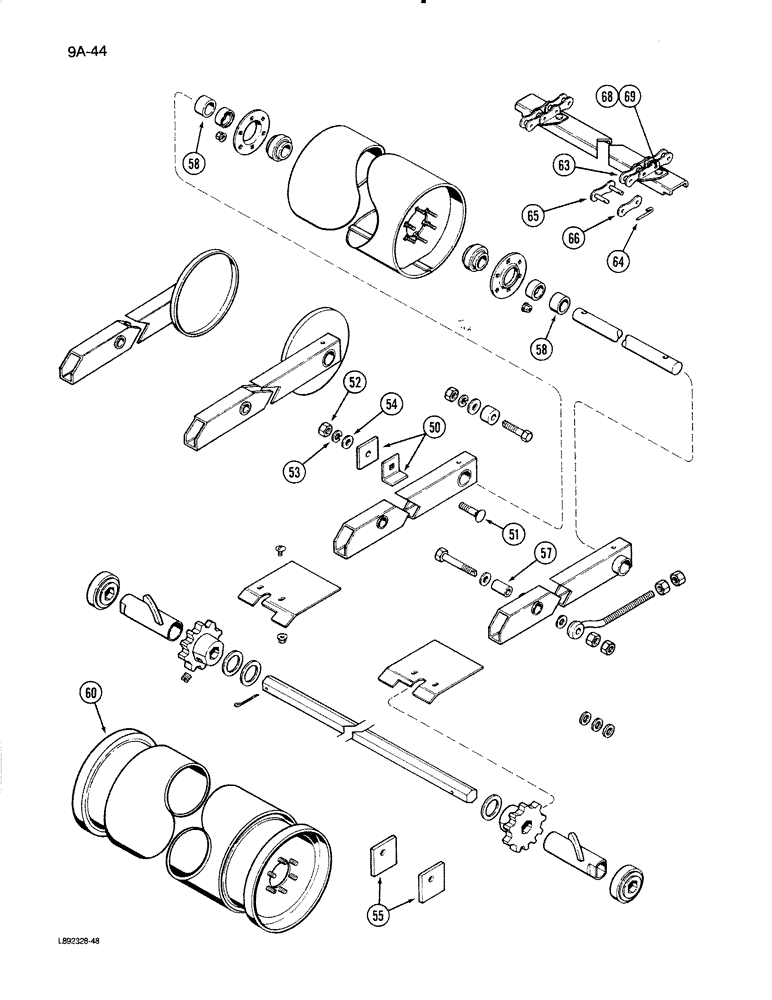

Запчасти Case IH 1670 (9A-44) - FEEDER CONVEYOR, (CONT) (13) - FEEDER

50

187364C2

ANGLE

- stop, upper

2шт.

51

598819R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

BOLT - round head square neck, 5/8 NC x 2-1/4 inch

2шт.

52

425-1010

NUT,5/8"-11, G5

2шт.

53

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

54

22810R1

SQ HOLE WASHER,41/64" x 1 1/4" x .060", Sq Hole

- flat, 21/32 square center x 1-1/4 x 3/64 inch

2шт.

55

187225C1

BAR

- stop, upper (With stone retarder)

2шт.

57

187217C1

SPACER,7/8" Tube x 1 13/16"

- pivot, 7/8 x 1-13/16 inch

2шт.

58

11449P

SPACER,1 1/4" Pipe x 1/2"

- bearing, 1-1/4 x 1/2 inch

2шт.

60

1957439C1

DRUM

- conveyor (With stone retarder)

1шт.

63

1324281C1

LINK,A557, Links x 41.4mm = mm

LINK ATTACHING - conveyor (For A557 chain)

1шт.

63

182090C1

LINK,Chain, 41.4mm Pitch

LINK ATTACHING - conveyor (For A550 chain), Includes: Ref. 64

1шт.

64

23442R1

PIN,2.36mm OD

- roller S Type

1шт.

64

1329837C2

PIN,2.63mm OD

- roller S type, chain (For A557 chain)

1шт.

65

1324835C1

OFFSET LINK

LINK - offset, conveyor (For A557 chain)

1шт.

65

182127C1

LINK,41.4mm Pitch

- offset, conveyor (For A550 chain)

1шт.

66

182094C1

LINK,Chain, Link, 41.4mm

- connecting, conveyor (For A550 chain)

1шт.

66

1324294C1

LINK,40.893mm Pitch

LINK - connecting, conveyor (For A557 chain)

1шт.

1300464C91

PACKAGE

KIT - feeder pivot stripper (Not Shown)

1шт.

67

104279

RIVET,FH, 3/8" x 3/4"

For A550 chain FH, 3/8" x 3/4"

1шт.

68

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(For A557 chain) Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

69

1306680C1

FLANGE NUT

NUT - hex lock, special (For A557 chain)

1шт.
