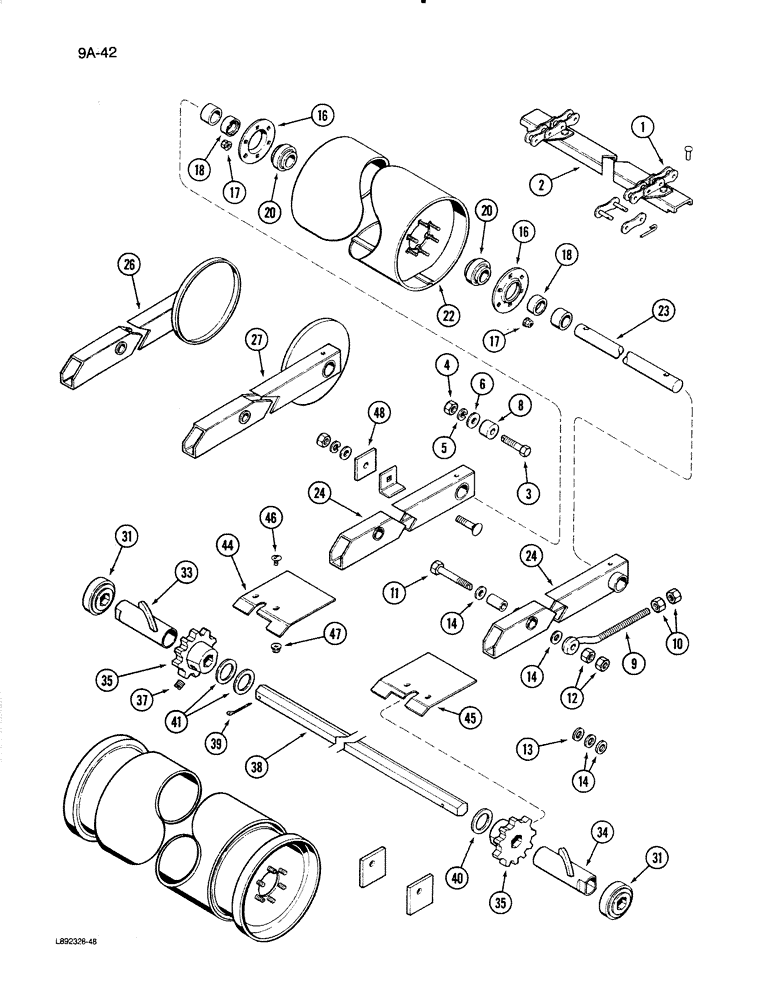

Запчасти Case IH 1670 (9A-42) - FEEDER CONVEYOR (13) - FEEDER

1

1324266C2

CHAIN (CE)

CHAIN ASSEMBLY - conveyor, corn and grain (10 smooth slats, A557 chain)

1шт.

1

1957593C2

ELEVATOR CHAIN

CHAIN ASSEMBLY - conveyor, with 10 serrated slats

1шт.

2

1313419C2

KIT

SLAT ASSEMBLY - conveyor (Used wth grain and corn)

1шт.

3

189709C1

BOLT,Hex, 1/2" - 13 x 3"

- clamp, chain

2шт.

4

425-105

NUT,5/16"-18, G5

- hex, 1/2 inch NC

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

6

22770R1

WASHER

- flat, 17/32 x 1-1/2 x 5/32 inch

2шт.

8

197211C1

SPACER

- stop, drum

2шт.

9

176508C1

BOLT,5/8" - 11 x 228.60mm

- tightening

2шт.

10

129-107

NUT,5/8"-11, G5

1шт.

11

187218C1

BOLT

- support arm, drum

2шт.

14

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, 21/32 x 1-5/16 x 5/32 inch

1шт.

16

1330461C1

FLANGED BEARING

- bearing, drum

2шт.

17

1306680C1

FLANGE NUT

NUT - hex lock, special

6шт.

18

557995R11

COLLAR

ASSEMBLY - locking, bearing

2шт.

20

619738R91

BALL BEARING,1.2505" ID x 62 mm OD x 1.4375"

- drum, conveyor

2шт.

22

1957437C1

DRUM

- conveyor (Without stone retarder)

1шт.

23

187207C2

SHAFT,31.75mm OD x 909.3mm L

SHAFT - drum, feeder

1шт.

24

1304193C1

SUPPORT

ARM - drum shield, left

1шт.

24

1304194C1

SUPPORT

ARM - drum shield, right

1шт.

26

1338291C1

ARM

ASSEMBLY - drum, left (With stone retarder)

1шт.

27

1338292C1

ARM

ASSEMBLY - drum, right (With stone retarder)

1шт.

31

179665C91

BALL BEARING,38.1mm Hex x 85mm OD x 30mm W

BEARING ASSEMBLY - shaft

2шт.

33

178780C1

SPACER

- sprocket, left

1шт.

34

178781C1

SPACER

- sprocket, right

1шт.

35

1970248C1

SPROCKET ASSY.

SPROCKET - chain, conveyor

2шт.

37

197643C1

SET SCREW

- set, sprocket

4шт.

38

1320160C3

SHAFT

- conveyor

1шт.

39

132-185

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

2шт.

40

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1-25/32 x 2-1/2 x 7/64 inch

1шт.

1300464C91

PACKAGE

KIT - stripper, Includes: Ref. 44 - 47

1шт.

Stripper plate in kit have a welded wear bar design.

1шт.

44

185818C1

STRIPPER ASSY.

STRIPPER - pivot, left

1шт.

45

185819C1

STRIPPER ASSY.

STRIPPER - pivot, right

1шт.

46

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

4шт.

47

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

48

187347C1

PLATE

BAR - stop, upper

2шт.
