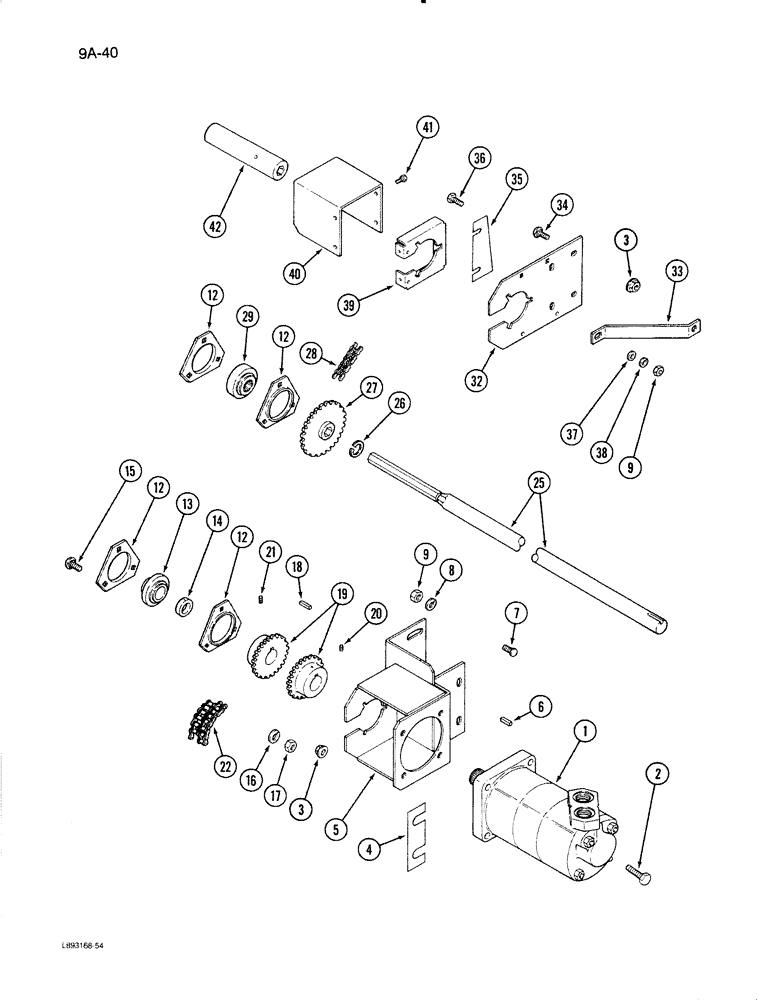

Запчасти Case IH 1670 (9A-40) - FEEDER BEATER JACKSHAFT (13) - FEEDER

1

REF

INSTRUCTION

MOTOR - header drive (See Figure 8-36)

1шт.

2

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

3

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

6шт.

4

1304288C1

SHIM

- drive motor, 0.12 inch

1шт.

4

1304289C1

SHIM

- drive motor, 0.06 inch

1шт.

5

1314038C1

SUPPORT

- header drive mounting

1шт.

6

454353R1

KEY,3/8" Sq x 1", Par

- square, 3/8 x 1 inch

1шт.

7

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

12

180955C1

FLANGED BEARING,0.375"

FLANGE - beater cross shaft bearing

4шт.

13

611583R91

BALL BEARING

BEARING ASSEMBLY - jackshaft

1шт.

14

517645R11

COLLAR

ASSEMBLY - locking, bearing, with set screw

1шт.

15

111-371

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", Full Thd

6шт.

16

492-11038

LOCK WASHER,3/8"

6шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

18

581306R1

KEY,5/16" Sq x 1 1/4", Par

1шт.

19

1314043C1

PACKAGE

COUPLER - chain sprocket

1шт.

20

22210R1

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW - headless slotted set, 5/15 NC x 1/2 inch

1шт.

21

426374

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW - set, headless hex socket, 3/8 NC x 1/2 inch

1шт.

22

REF

INSTRUCTION

CHAIN - coupler

1шт.

Use 17 links of No.50-2 chain and one connecting link 1378D.

1шт.

25

1314037C2

SHAFT

- cross, jackshaft

1шт.

26

575186R1

SNAP RING

RING - cross shaft retaining

1шт.

27

1314004C1

SPROCKET ASSY.

SPROCKET - drive, 24 tooth

1шт.

28

REF

INSTRUCTION

CHAIN - drive

1шт.

Use 79 links of No. 50 chain four offset link 1315D and one connecting link 1310D.

1шт.

29

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING - jackshaft

1шт.

32

175915C2

SUPPORT

- bearing

1шт.

33

197988C1

SUPPORT

BRACE - bearing support

1шт.

34

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

2шт.

35

1314045C1

BAR

PLATE - jackshaft bearing support

1шт.

36

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

37

25710R1

WASHER

- hardened flat, 17/32 x 1-1/16 x 5/64 inch

2шт.

38

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

39

178254C1

SUPPORT

- jackshaft

1шт.

40

189729C1

CHANNEL

SHIELD - jackshaft

1шт.

41

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - hex washer head tapping, 1/4 x 1/2 inch

4шт.

42

176537C2

SPLINED COUPLING,28.83mm ID x 44.45mm OD x 203.2mm L

COUPLING - jackshaft

1шт.

586591R1

COTTER PIN

PIN - cotter, hair type, 1/8 inch diameter

1шт.

23170R1

HEADED PIN,1/2" x 2 3/8"

PIN- clevis, 1/2 x 2-3/8 inch

1шт.
