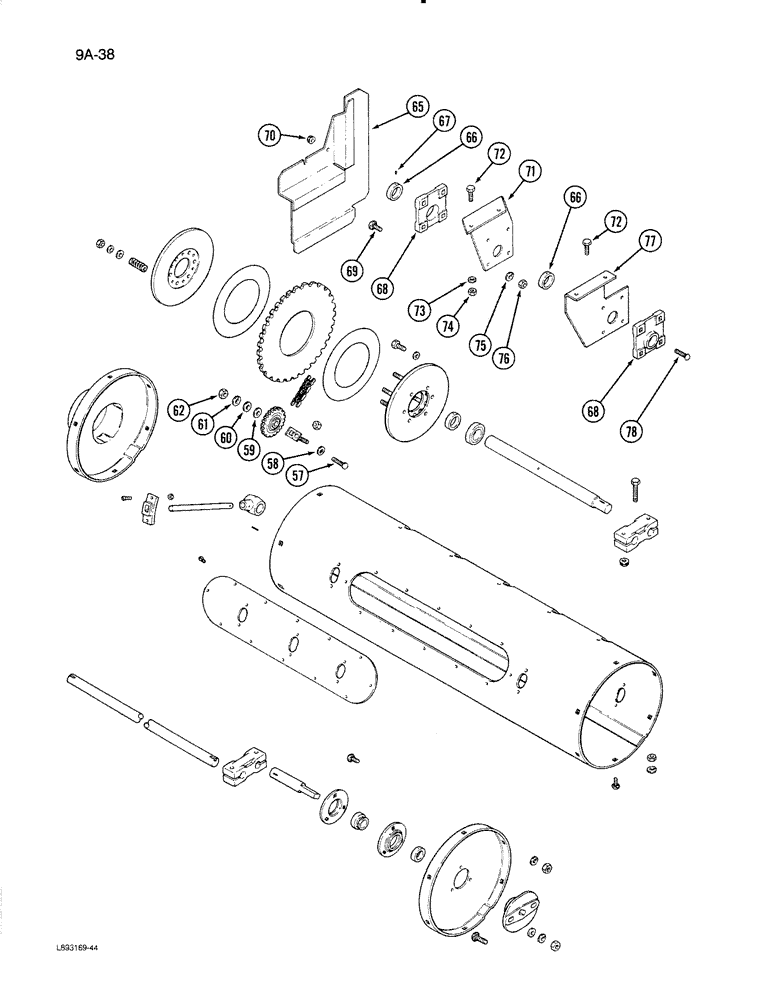

Запчасти Case IH 1670 (9A-38) - FEEDER BEATER TUBE, (CONT) (13) - FEEDER

57

598820R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 5

BOLT - round head square neck, 5/8 NC x 2-1/2 inch

1шт.

58

N11720

WASHER

- square hole, 21/32 x 1-1/2 x 3/32 inch

1шт.

59

21471R1

WASHER

- flat, 21/32 x 1 x 7/64 inch

1шт.

60

21796R1

WASHER

- flat, 21/32 x 1 x 3/64 inch

1шт.

61

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

62

425-1010

NUT,5/8"-11, G5

1шт.

65

1314049C91

SHIELD

- feeder beater, Includes decal

1шт.

179749C2

PRODUCT GRAPHIC

DECAL - danger, do not open

1шт.

66

597950R1

COLLAR

- locking

2шт.

67

191950

SET SCREW,Hdls Hex Skt, 5/16" - 18 x 3/8", Cup Pt

SCREW - set, headless hex socket, 5/16 NC x 3/8 inch

2шт.

68

158907C1

HUB

- support

2шт.

69

111-371

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", Full Thd

4шт.

70

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

71

1314046C1

SUPPORT

- feed beater

1шт.

72

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

73

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

74

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

75

492-11038

LOCK WASHER,3/8"

4шт.

76

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

77

1304392C1

SUPPORT

- shaft

1шт.

78

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

4шт.
