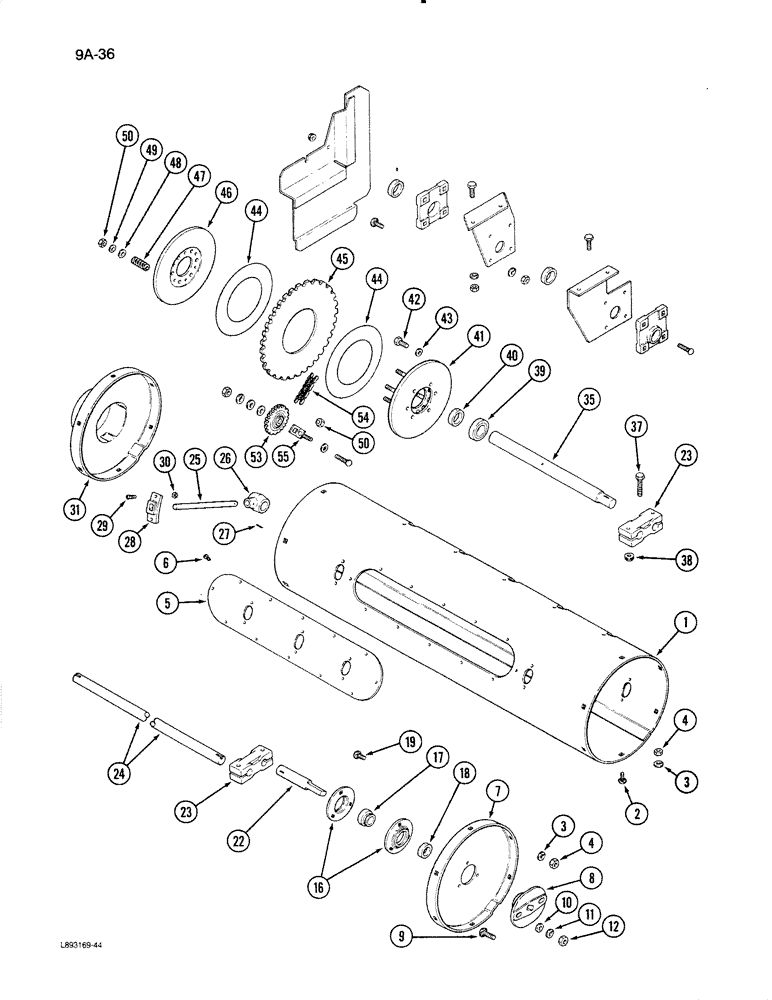

Запчасти Case IH 1670 (9A-36) - FEEDER BEATER TUBE (13) - FEEDER

1

1314024C1

TUBE,304.75 mm OD, 1129, 968 mm Length

- feeder beater

1шт.

2

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT - round head square neck, 3/8 NC x 1-1/4 inch

12шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

15шт.

4

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

15шт.

5

1313091C1

COVER

- beater tube

1шт.

6

187-1753

SELF-TAP SCREW,Pan, 5/16" - 18 x 3/4"

BOLT - pan head tapping, 5/16 x 3/4 inch

12шт.

7

158906C1

RETAINER

- beater

1шт.

8

158915C1

HUB

- finger adjusting

1шт.

9

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/4", G5

2шт.

10

21029R1

WASHER

- flat, 15/32 x 1 x 7/64 inch

2шт.

11

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

12

129-104

NUT,7/16"-14, G5

2шт.

16

937517R1

FLANGE

- bearing

2шт.

17

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING - beater tube

1шт.

18

455102R21

COLLAR

- locking, bearing, with set screw

1шт.

19

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 1 inch

3шт.

21

28459KA

WASHER

- beater shaft

4шт.

22

158913C1

ROD

- finger adjusting

1шт.

23

158912C1

CLAMP

- finger shaft

2шт.

24

159181C1

SHAFT

- center

1шт.

25

1313061C2

PIN,15.87mm OD x 195mm L

SHAFT - retractable finger

24шт.

26

1308425C1

HUB

- finger

20шт.

27

150724C1

SPLIT PIN/SAFETY PIN

PIN - cotter, quick attachable

20шт.

28

1307259C2

GUIDE

- fingers

24шт.

29

1313021C1

SERRATED SCREW,Cross Rec Truss Hd, 1/4" - 20 x 3/4", Cl 8

BOLT - special, 1/4 NC x 3/4 inch

48шт.

30

127550

NUT,Tee, 1/4"-20

- tee, 1/4 inch NC

48шт.

31

158905C2

HUB

- drive

1шт.

35

158908C1

ROD

SHAFT - support

1шт.

37

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

38

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

4шт.

39

617667R92

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

ASSEMBLY - ball

1шт.

40

557995R11

COLLAR

ASSEMBLY - locking, bearing, with set screw

1шт.

41

1304999C1

HUB

- sprocket

1шт.

42

24840R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

6шт.

43

492-11038

LOCK WASHER,3/8"

6шт.

44

181579C1

DISC

DISC - friction, clutch

2шт.

45

1314003C1

SPROCKET ASSY.

SPROCKET - driven, 54 tooth

1шт.

46

1304998C1

RETAINER

- friction clutch, outer

1шт.

47

28395H

SPRING

- slip clutch

6шт.

48

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

6шт.

49

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

6шт.

50

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

53

594706R91

SPROCKET ASSY.,15T

SPROCKET - drive idler, 15 tooth

1шт.

54

REF

INSTRUCTION

CHAIN - beater drive

1шт.

Use 79 links of No.50 roller chain, four offset link 1315D and one connecting link 1310D.

1шт.

55

1314031C2

ROD

- tightener

1шт.
