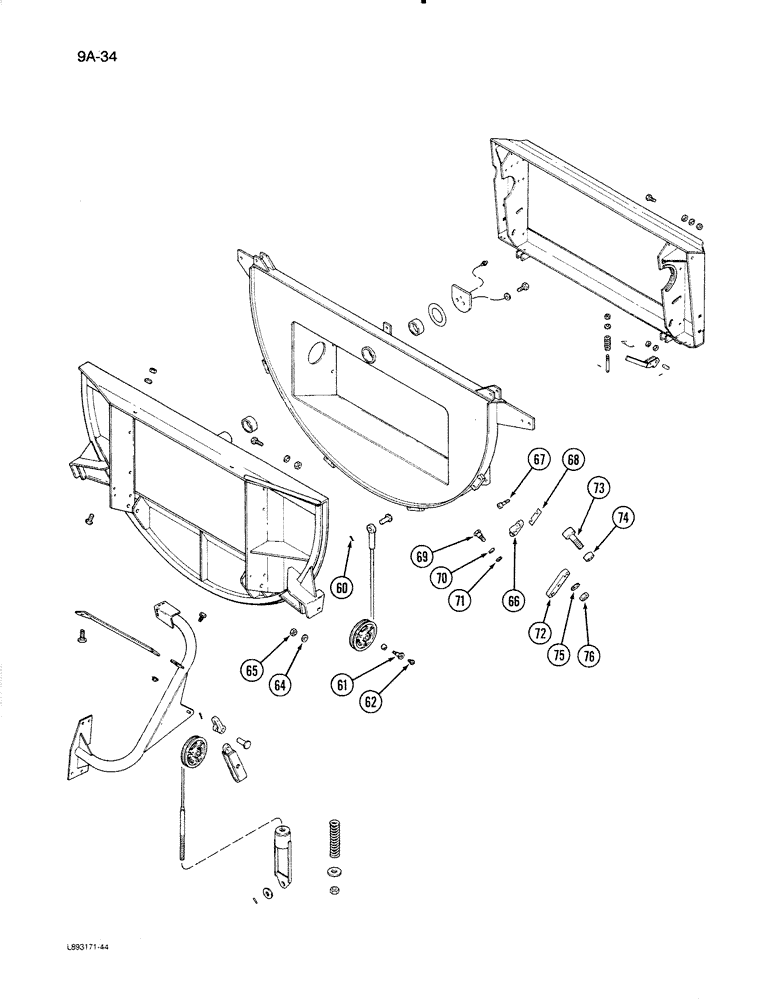

Запчасти Case IH 1670 (9A-34) - FEED BEATER, (CONT) (13) - FEEDER

60

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

4шт.

61

574317R1

STUD,Hex, 5/8" - 11 x 2 3/4"

BOLT - cable pulley retaining

4шт.

62

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

4шт.

64

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

65

425-1010

NUT,5/8"-11, G5

4шт.

66

1304475C1

SUPPORT

- roller arm

4шт.

67

26145R1

12 PT SCREW,Flg, 5/8" - 11 x 1 3/4"

BOLT - 12 point flange, 5/8 x 1-3/4 inch

4шт.

68

1304476C1

SHIM

- roller

8шт.

69

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- hex, 3/4 NC x 2-1/2 inch

2шт.

70

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

71

495-11081

WASHER,3/4", SAE

- flat, 13/16 x 1-1/2 x 7/64 inch

2шт.

72

1304474C1

BAR

ARM - roller

4шт.

73

1304217C92

BEARING,50.8 mm OD x 50.8, 31.7 mm

- track roller

8шт.

74

1304473C1

BUSHING

- roller arm

4шт.

75

192-29

LOCK WASHER,7/8"

7/8"

2шт.

76

129-129

NUT,7/8"-14, G5

- hex, 7/8 inch NF

2шт.
