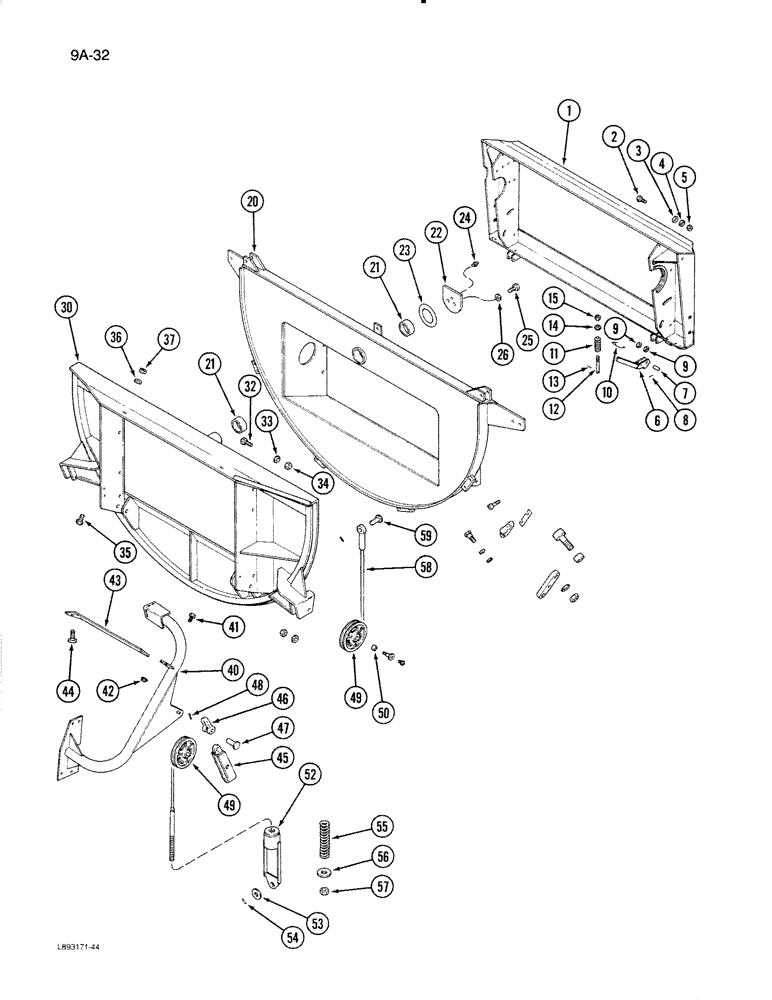

Запчасти Case IH 1670 (9A-32) - FEED BEATER (13) - FEEDER

1

1314026C2

ADAPTER

HOUSING - feeder adapter

1шт.

2

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

4шт.

3

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, hardened

2шт.

4

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

425-1010

NUT,5/8"-11, G5

4шт.

6

179024C1

HINGE

HANDLE - lock, latch

2шт.

7

177141C1

PIN,15.88mm OD x 41mm L

- pivot, handle

2шт.

8

617057R1

PIN,1/4" x 1", Coiled

4шт.

9

21471R1

WASHER

- flat, 21/32 x 1 x 7/64 inch

4шт.

10

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

2шт.

11

367833R1

SPRING

- rod, latch

2шт.

12

177138C1

ROD

- latch

2шт.

13

1338021C1

PIN,7.94mm OD

- lock, latch

2шт.

14

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

2шт.

15

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

20

1314012C92

HOUSING

- feed beater, Includes: Ref. 21

1шт.

21

1304162C1

BUSHING,76.71mm ID x 79.91mm OD x 31.75mm L

- housing

2шт.

24

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree short, 1/8 NP

1шт.

25

26321R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

- hex, 5/8 NC x 1-1/4 inch, Grade 8

2шт.

26

193-50

LOCK WASHER,Ext-Int Tooth, 5/8"

WASHER, LOCK, Ext-Int Tooth, 5/8"

2шт.

30

1304169C2

FEEDER

HOUSING - beater circle

1шт.

32

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

1шт.

33

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

34

425-1010

NUT,5/8"-11, G5

1шт.

35

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-3/4 inch

2шт.

36

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

37

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

40

1304211C1

SUPPORT

BRACKET - cable leveling, left

1шт.

40

1304212C1

SUPPORT

BRACKET - cable leveling, right

1шт.

41

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

42

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

2шт.

43

1304585C1

BAR

BRACE - leveling support

2шт.

44

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

2шт.

45

1304213C1

YOKE

BLOCK - pulley

2шт.

46

374753R1

STIRRUP

SHACKLE - block

2шт.

47

21573R1

HEADED PIN,1/2" x 2"

PIN - clevis, 1/2 x 2 inch

4шт.

48

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

4шт.

49

634956R11

PULLEY

- swivel cable, Includes: Ref. 50

4шт.

50

574859R1

BUSHING

- swivel cable pulley

1шт.

52

1304191C1

RETAINER

- spring leveling

2шт.

53

131019

SWEEP

- flat, 1-1/16 x 2 x 7/64 inch

1шт.

54

657196R1

PIN

- roll, 1/4 x 2 inch

1шт.

55

338133R2

SPRING

- leveling

2шт.

56

1304588C1

WASHER

WASHER - spring leveling

2шт.

57

425-1010

NUT,5/8"-11, G5

4шт.

58

1304022C1

CABLE

- leveling

2шт.

59

21591R1

HEADED PIN,1/2" x 1 3/4"

PIN - headed, 1/2 x 1-3/4 inch

4шт.
