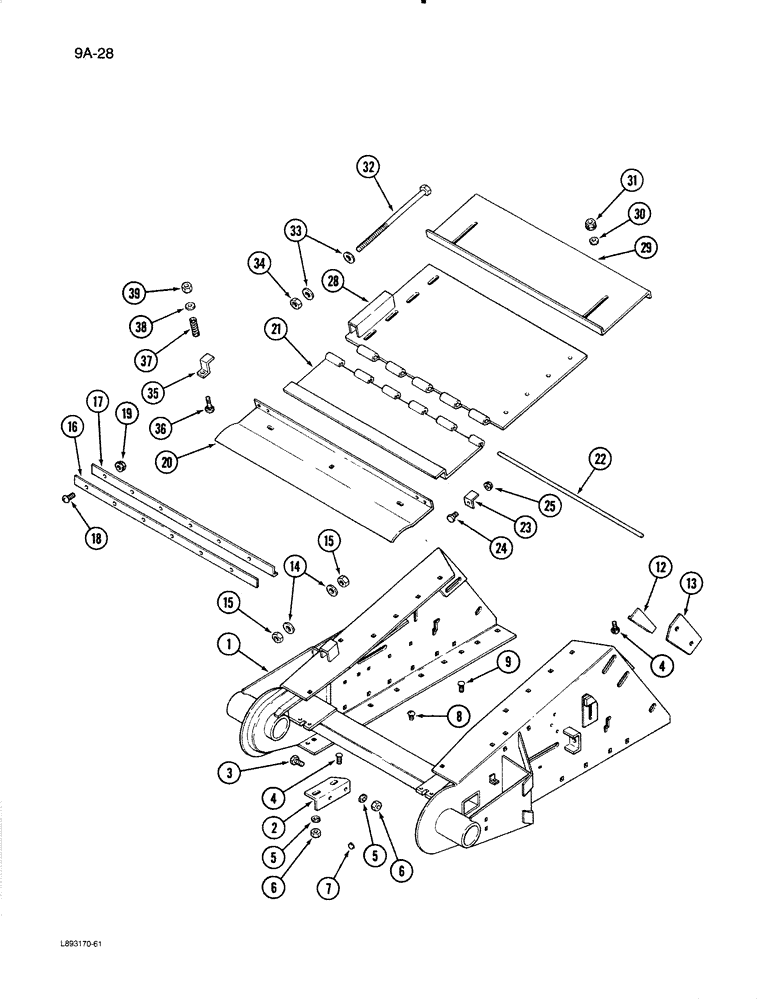

Запчасти Case IH 1670 (9A-28) - 1338331C1 FEEDER (13) - FEEDER

1

1338331C1

HOUSING ASSY.

HOUSING - feeder, Includes decals

1шт.

189922C3

DECAL

- danger, safety lock

2шт.

179749C2

PRODUCT GRAPHIC

DECAL - danger, do not open

2шт.

2

1314035C1

ANGLE

BRACKET - circle, left

1шт.

2

1314036C1

ANGLE

BRACKET - circle, right

1шт.

3

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

4

111-541

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

3шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

7

188456

HOLE PLUG BUTTON,13/16"

PLUG - button, 13/16 diameter

1шт.

8

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

1шт.

9

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

1шт.

12

1327752C1

FOAM INSULATION

- side, feeder, left

1шт.

12

1327753C1

FOAM INSULATION

- side, feeder, right

1шт.

13

1321638C1

COVER

- front, top

1шт.

14

25548R1

WASHER

- flat, hardened, 13/16 x 1-1/2 x 7/32 inch

2шт.

15

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

16

634204R1

SEAL

- feeder, top

1шт.

17

197418C1

SUPPORT

ANGLE - support, seal

1шт.

18

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

6шт.

19

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

6шт.

20

197426C4

COVER

- top, feeder

1шт.

21

180555C91

DOOR ASSY.

DOOR - top, feeder, Includes decal

1шт.

179749C2

PRODUCT GRAPHIC

DECAL - danger, do not open

1шт.

22

175906C1

ROD

- hinge, door

1шт.

23

1322144C1

ANGLE

- stop, door

2шт.

24

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

25

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

2шт.

28

1321431C2

SUPPORT

- feeder, top

1шт.

29

1327737C2

PLATE

COVER - side, feeder

2шт.

30

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

WASHER - flat, hardened

4шт.

31

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex lock special, 1/2 inch NC

4шт.

32

1321395C1

BOLT,3/4" - 10 x 440mm

- adjusting, level

1шт.

33

25548R1

WASHER

- flat, hardened, 13/16 x 1-1/2 x 7/32 inch

2шт.

34

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

35

184645C1

CLIP

- latch, door

1шт.

36

27451R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

BOLT - round head square neck, 3/8 NC x 2-1/4 inch

1шт.

37

7422T

SPRING

- latch, door

1шт.

38

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

39

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

42

1327992C2

GUARD

SHIELD - sensor, feeder

1шт.

43

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

44

403276R1

NUT

- speed, 5/16 inch

2шт.
