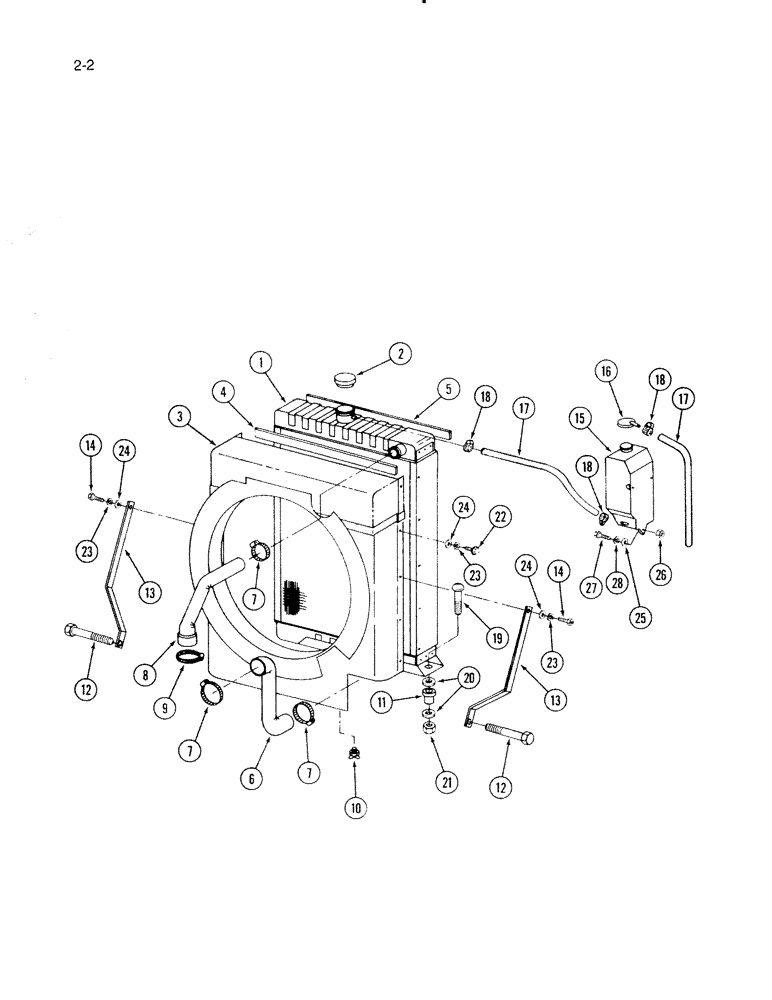

Запчасти Case IH 1670 (2-02) - RADIATOR AND ATTACHING PARTS (01) - ENGINE

1

A189212

RADIATOR

- engine cooling, Includes: Ref. 2

1шт.

2

121951C1

CAP

- radiator pressure, 10 PSI (Alternate with 130704C1)

1шт.

2

130704C1

CAP

- radiator pressure, 10 PSI (Alternate with 121951C1)

1шт.

3

1979391C1

SHROUD

- fan

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - radiator baffle, 36 inch (Order 1319664C1, Serial Range: cut-length)

2шт.

1319664C1

SEAL

- foam, 48 inch

1шт.

5

1321354C2

SEAL

SEAL - radiator, top and bottom

2шт.

6

121759C1

RADIATOR HOSE,2.00" ID, 2.62" ID x 5.10", SAE 20R4 CLASS D-2

Outlet lower 2.00" ID, 2.62" ID x 5.10", SAE 20R4 CLASS D-2

1шт.

7

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

retaining #36, 1.81/2.75 Type F Worm

3шт.

8

1275755C1

RADIATOR HOSE,50.80 mm ID, 57.15 mm ID x 363.00 mm

Inlet Upper 50.80 mm ID, 57.15 mm ID x 363.00 mm

1шт.

9

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

adj., includes screw #36, 1.81/2.75 Type F Worm

1шт.

10

86982771

VALVE

- pipe 1/4 inch, drain cock

1шт.

11

400159R1

BUMPER

ABSORBER - radiator

2шт.

12

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

2шт.

13

121984C1

BRACE

- radiator

2шт.

14

187-1071

SELF-TAP SCREW,Hex Hd, 5/16" x 1 1/4"

SCREW - tapping, 5/16 x 1-1/4 inch

2шт.

15

437703C1

TANK

- reservoir

1шт.

16

437702C1

CAP

- reservoir tank

1шт.

17

121983C1

RADIATOR HOSE,0.31" ID x 43.00", ASTM D 2000

- Reservoir to Radiator and Overflow 0.31" ID x 43.00", ASTM D 2000

2шт.

18

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

3шт.

19

111-422

CARRIAGE BOLT,Short NK, 7/16"-14 x 2", G2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 2", G2

2шт.

20

23043R1

WASHER

- 15/32 x 2 x 7/64 inch

4шт.

21

131-667

NUT,7/16"-14, GB

NUT - lock, 7/16 inch NC

2шт.

22

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

6шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

24

134238R1

WASHER

- 11/32 x 1 x 3/64 inch

2шт.

24

106969R1

WASHER

- 11/32 x 1-1/4 x 3/64 inch

6шт.

25

25707R1

WASHER,.281" x 5/8" x .075", HDN

- 9/32 x 5/8 x 3/4 inch

3шт.

26

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

27

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

28

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.
