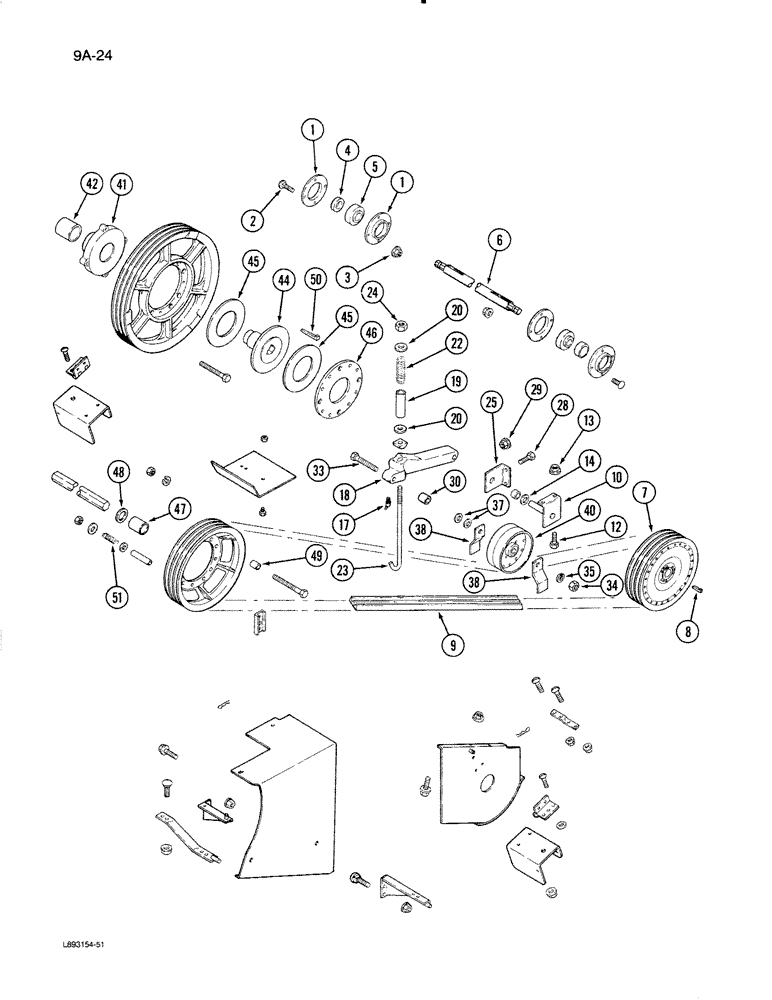

Запчасти Case IH 1670 (9A-24) - FEEDER JACKSHAFT DRIVE (13) - FEEDER

1

663562R1

FLANGE

- bearing, left

2шт.

2

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

4шт.

3

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

4шт.

4

455112R11

COLLAR

ASSEMBLY - locking

1шт.

5

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING - jackshaft, left

1шт.

6

1314037C2

SHAFT

- cross, jackshaft

1шт.

7

1321645C1

PULLEY

- driven, feeder

1шт.

8

Q1376

KEY

- square tapered, 3/8 x 2-1/4 inch

1шт.

9

1313095C2

V-BELT,131.69" L

Drive, 53-23/64 Inch 131.69" L

1шт.

9

1313097C3

V-BELT,22.33 mm W x 3706.69 mm L

Drive, 60-31/64 inch 22.33 mm W x 3706.69 mm L

1шт.

10

182322C1

SUPPORT

- pivot, idler

1шт.

12

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

2шт.

13

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

14

591715R1

WASHER

- flat, 1-1/32 x 1-1/2 x 3/64 inch

10шт.

17

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING - 45 degree lube, 1/4 inch taper drive

1шт.

18

1321982C1

ARM

- tightener

1шт.

The pivot block that fits into this Arm P/N 132198C1 is P/N 194652C1.

1шт.

19

176581C1

SPACER

- spring, adjusting bolt

1шт.

20

632076R1

WASHER

- flat, 17/32 x 1-3/4 x 3/32 inch

2шт.

22

PO3A

SPRING

- tightener bolt

1шт.

23

197410C1

BOLT,1/2" - 13 x 17 1/2", Carbon Steel

- draw, idler

1шт.

24

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

25

182323C1

SUPPORT

- idler

1шт.

28

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

2шт.

29

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

30

61270C1

SPACER

- idler, drive

1шт.

33

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8 NC x 6 inch

1шт.

34

129-107

NUT,5/8"-11, G5

1шт.

35

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

37

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, 21/32 x 1-5/16 x 5/64 inch

1шт.

38

197110C1

GUIDE

- belt

2шт.

40

176579C1

IDLER

- tightener, drive

1шт.

41

1305220C91

HUB ASSY.

HUB ASSEMBLY - clutch, outer, Includes: Ref. 42

1шт.

42

610435C1

BUSHING,69.93mm ID x 82.65mm OD x 76.2mm L

- hub

1шт.

44

1305154C2

HUB

- slip clutch

1шт.

45

181579C1

DISC

DISC - friction, clutch

2шт.

46

185955C1

PLATE

- friction

1шт.

47

1305393C1

SPACER

- hub, clutch

1шт.

48

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1-25/32 x 2-1/2 x 7/64 inch

1шт.

49

1305375C1

SPACER

- drive lug

4шт.

50

Q3959

COTTER PIN,Gib, 3/8" Sq x 4 1/2"

Tapered Gib, 3/8" Sq x 4 1/2"

2шт.

51

1305692C2

SPRING

- slip clutch

8шт.
