Запчасти Case IH 1670 (9A-22) - FEEDER DRIVE, (CONT) (13) - FEEDER

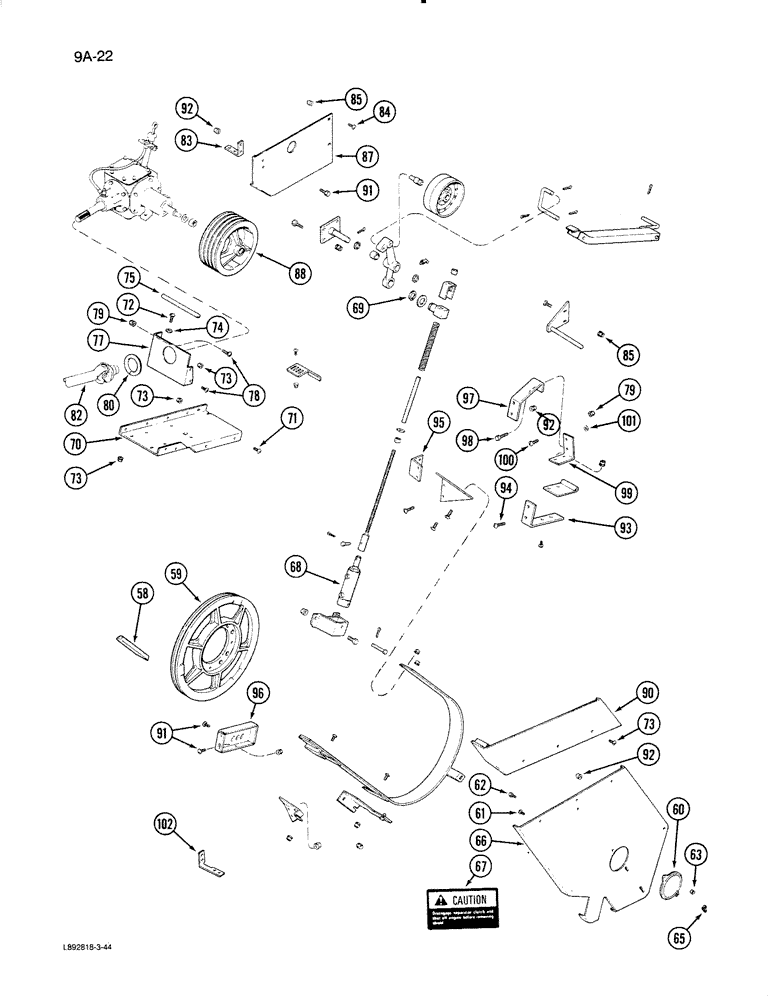

Схема запчастей Case IH 1670 - (9A-22) - FEEDER DRIVE, (CONT) (13) - FEEDER
80
87
69
72
73
63
97
102
78
92
61
76
79
75
93
73
88
95
98
96
91
65
100
85
77
92
94
73
82
85
71
58
82
68
90
60
99
79
83
74
84
101
91
59
66
62
73
67

Артикул

Название

Примечание

Количество

58

1304060C2

V-BELT,149.99" L

Drive Feeder 149.99" L

1шт.

59

1304075C1

PULLEY

- driven, feeder

1шт.

60

188315C1

DOOR

- access, belt

1шт.

61

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss head, 1/4 NC x 1/2 inch

1шт.

62

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

63

86625061

NUT,1/4"-20, GB

NUT - hex lock, 1/4 inch NC

1шт.

65

126177

WING NUT

NUT - wing, door

1шт.

66

1304736C91

COVER

SHIELD - belt, Includes: Ref. 67

1шт.

67

188199C1

PRODUCT GRAPHIC

DECAL - caution

1шт.

68

REF

INSTRUCTION

CYLINDER ASSEMBLY - feeder (See Figure 8-72)

1шт.

69

R13338

SNAP RING,#150, Ext

Ring, Snap, , spring rod #150, Ext

1шт.

70

194521C1

SUPPORT

- gear case

1шт.

71

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

4шт.

72

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - slotted truss head, 3/8 NC x 1 inch

2шт.

73

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

6шт.

74

178373R1

WASHER

- flat, 13/32 x 1 x 3/64 inch

4шт.

75

191497C1

SEALING STRIP

- support

1шт.

77

191399C1

SUPPORT

- rear

1шт.

78

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

7шт.

79

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

7шт.

80

191496C1

SEALING STRIP

- support

1шт.

82

REF

INSTRUCTION

JOINT ASSEMBLY - drive (See Figure 9A-8)

1шт.

83

186081C1

ANGLE

- upper shield

1шт.

84

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

2шт.

85

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

87

1304093C1

SUPPORT

- shield, upper

1шт.

88

191603C2

PULLEY

- drive

1шт.

90

1315085C1

GUARD

SHIELD - extension, belt (With rock trap)

1шт.

91

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

8шт.

92

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange nut, 3/8 inch NC

12шт.

93

1315078C3

SUPPORT

- extension, pivot (With rock trap)

1шт.

94

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

- slotted truss head, 3/8 NC x 1-1/4 inch

6шт.

95

1315075C1

ANGLE

SUPPORT - angle, extension

1шт.

96

1315083C1

SUPPORT

- extension, lower (With rock trap)

1шт.

97

1315232C1

SUPPORT

- stiffener, upper (With rock trap)

1шт.

98

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

99

1315079C1

SUPPORT

- shield, upper (With rock trap)

1шт.

100

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

2шт.

101

49139D

WASHER,10.32mm ID x 38.1mm OD x 5mm Thk

- flat, 13/32 x 1-1/4 x 31/64 inch

1шт.

102

1304717C1

ANGLE

BRACKET - feeder drive belt, upper

1шт.

Выбрано товаров: 40
