Запчасти Case IH 1670 (9A-14) - SEPARATOR DRIVE PULLEY AND IDLER (13) - FEEDER

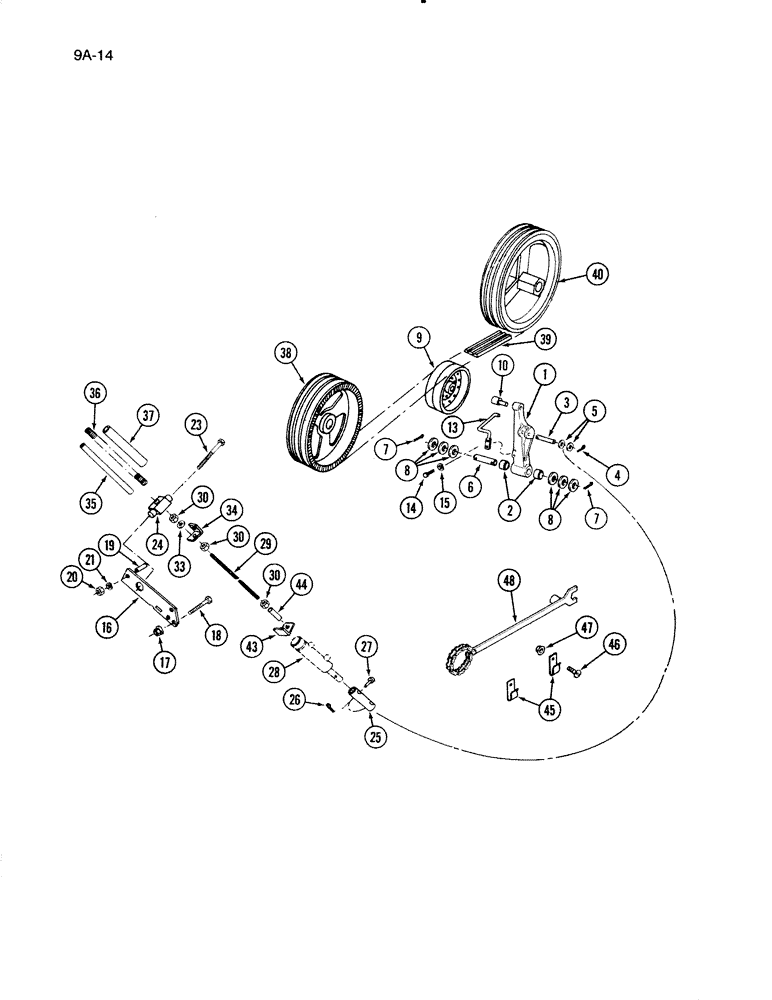

Схема запчастей Case IH 1670 - (9A-14) - SEPARATOR DRIVE PULLEY AND IDLER (13) - FEEDER
2
14
3
1
9
8
26
29
33
47
23
45
7
20
23
15
28
13
16
10
5
46
19
30
30
8
17
44
30
27
40
21
16
39
36
25
37
24
18
35
36
4
7
48
7

Артикул

Название

Примечание

Количество

1

1347039C1

LEVER

ASSEMBLY - drive belt clutch, Includes: Ref. 2 and 3

1шт.

2

1302308C1

BUSHING,25.65mm ID x 31.85mm OD x 28.57mm L

- drive belt clutch lever

2шт.

3

1315229C2

PIN,25.4mm OD x 135mm L

- seperator clutch arm

1шт.

4

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

5

21796R1

WASHER

- flat, 21/32 x 1 x 1/16 inch

2шт.

6

195459C1

PIN

- drive belt clutch lever

1шт.

7

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

2шт.

8

609836R1

WASHER

- flat, 1-1/32 x 1-3/4 x 1/16 inch

7шт.

9

174757C1

PULLEY

- separator belt idler, 8 inch OD

1шт.

10

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

- drive belt idler pulley

1шт.

13

193284C1

ROD

- clutch pulley belt guide

1шт.

14

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

15

492-11038

LOCK WASHER,3/8"

3шт.

16

194220C1

BAR

- cylinder anchor

2шт.

17

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange hex lock, 3/8 inch NC

6шт.

18

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex lock, 3/8 NC x 1-1/4 inch

6шт.

19

196676C1

SPACER

- cylinder anchor bar

1шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

21

492-11038

LOCK WASHER,3/8"

1шт.

23

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

1шт.

24

186747C1

PIVOT

- separator drive arm

1шт.

25

195432C1

TUBE,25.4 mm ID, 34.92 mm OD

BUSHING - cylinder extension

1шт.

26

132-321

COTTER PIN,3/32" x 1"

PIN - cotter, 3/32 x 3/4 inch

1шт.

27

52893H

CLEVIS PIN,3/8" x 1.781"

PIN - clevis, 3/8 x 1-25/32 inch

1шт.

28

REF

INSTRUCTION

CYLINDER ASSEMBLY - separator clutch (See Figure 8-74)

1шт.

29

1303058C1

ROD

- separator drive tightener

1шт.

30

129-107

NUT,5/8"-11, G5

3шт.

33

21759R1

WASHER

- flat, 21/32 x 2 x 7/64 inch

1шт.

34

186748C1

BRACKET

ANGLE - drive tightener rod

1шт.

35

186744C1

TUBE,16.7 mm ID, 22.2 mm OD, 289.1 mm Length

- inner, drive tightener

1шт.

36

186745C1

SPRING

- belt tightener rod

1шт.

37

186746C1

TUBE

- outer, drive tightener

1шт.

38

191461C1

PULLEY,110mm OD

- separator drive, 11 inch OD

1шт.

39

191241C1

BELT

- Separator drive, 130 inch over center

1шт.

40

REF

INSTRUCTION

PULLEY - separator jackshaft driven (See Figure 9A-16)

1шт.

43

186749C1

BRACKET

ANGLE - separator rod tightener rod

1шт.

44

18556R1

LOCK PIN,1/4" x 3/4", Slotted

PIN, 1/4" x 3/4", Slotted

1шт.

45

1968787C1

CLIP

- rocking wrench

2шт.

46

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss, 5/16 NC x 3/4 inch

1шт.

47

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flanged hex lock, 5/16 inch NC

1шт.

48

1957607C2

SPECIAL WRENCH

WRENCH - rocking

1шт.
