Запчасти Case IH 1670 (9A-10) - SEPARATOR JACKSHAFT SUPPORT (13) - FEEDER

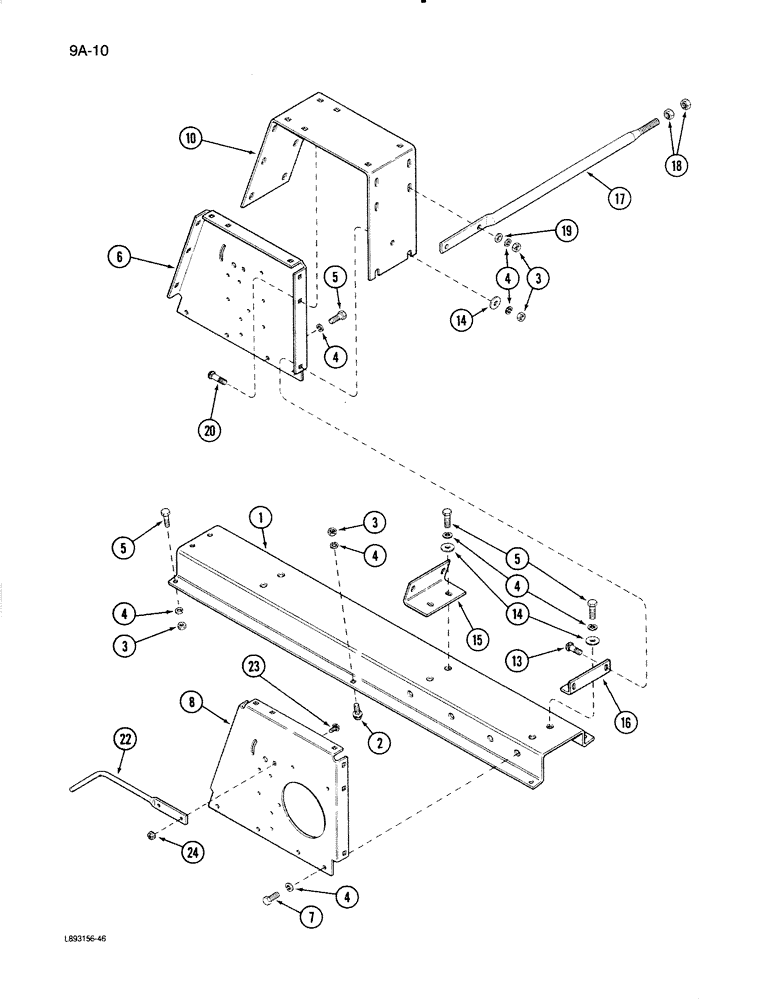

Схема запчастей Case IH 1670 - (9A-10) - SEPARATOR JACKSHAFT SUPPORT (13) - FEEDER
4
14
14
20
4
17
2
4
18
5
5
7
6
4
10
4
3
6
3
13
22
15
3
1
23
24
19
4
16
5

Артикул

Название

Примечание

Количество

1

181333C1

SUPPORT ASSY.

SUPPORT ASSEMBLY - jackshaft

1шт.

2

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- flanged hex, 1/2 NC x 1 inch

2шт.

3

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

22шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

30шт.

5

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

6

181165C1

SUPPORT ASSY.

SUPPORT - left, separator jackshaft

1шт.

7

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

8шт.

8

181166C1

SUPPORT

- right, separator jackshaft

1шт.

10

181167C1

SUPPORT

- top, separator jackshaft

1шт.

13

111-541

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

14

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 7/64 inch

9шт.

15

181164C1

SUPPORT

- separator jackshaft

1шт.

16

181172C1

SUPPORT

ANGLE - jackshaft support rear

1шт.

17

181171C1

ROD

- support

1шт.

18

129-127

NUT,5/8"-18, G5

2шт.

19

25742R1

WASHER

- flat, 17/32 x 3/4 x 7/64 inch

2шт.

20

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/2 inch

2шт.

22

194901C1

ROD

- separator clutch belt support

1шт.

23

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

2шт.

24

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange, 3/8 inch NC

2шт.

Выбрано товаров: 20
