Запчасти Case IH 1670 (9A-06) - BELT DRIVE - RIGHT SIDE, (CONT) (13) - FEEDER

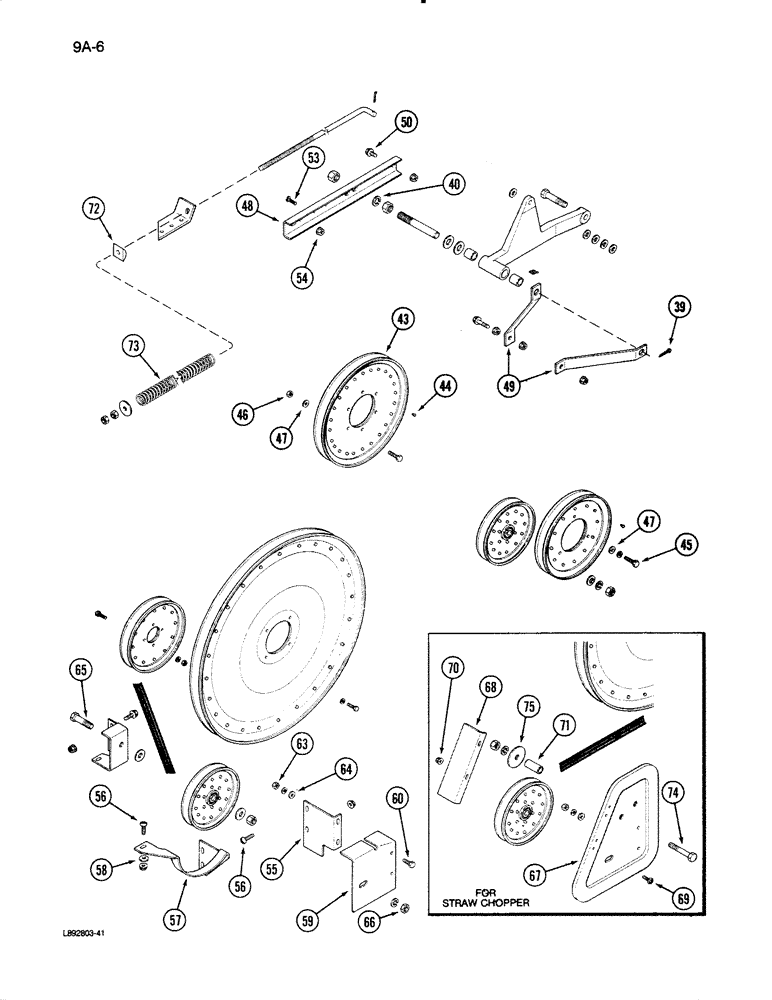

Схема запчастей Case IH 1670 - (9A-06) - BELT DRIVE - RIGHT SIDE, (CONT) (13) - FEEDER
47
68
47
58
59
44
71
64
45
48
50
56
46
54
39
67
70
69
43
56
72
49
73
65
75
63
60
74
48
66
55
57
53

Артикул

Название

Примечание

Количество

39

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

1шт.

40

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

43

183325C1

PULLEY

ASSEMBLY - jackshaft driven, 13 inch OD, Includes: Ref. 44

1шт.

44

104235

RIVET,FH, 3/16" x 1/2"

24шт.

45

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3шт.

46

9413979

LOCK NUT,3/8"-16, GC

NUT - hex prevailing torque lock, 3/8 inch NC

3шт.

47

142619H

WASHER

- flat, 13/32 x 3/4 x 7/64 inch

6шт.

48

186588C2

CHANNEL

- pivot arm support

1шт.

49

182676C2

SUPPORT

- elevator pivot

2шт.

50

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

1шт.

53

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - slotted truss, 3/8 x 1 inch

1шт.

54

25932R1

JAM NUT,Jam, 3/8"-16, G5

- hex jam, 3/8 inch NC

1шт.

55

1302352C1

GUIDE

- elevator belt upper

1шт.

56

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

BOLT - slotted truss 3/8 NC x 1-1/4 inch

2шт.

57

1302068C2

GUIDE

- elevator belt lower

1шт.

58

22264R1

WASHER

- flat, 13/32 x 1 x 11/64 inch

3шт.

59

1302350C1

SHIELD

- elevator fixed idler (Combine without straw chopper)

1шт.

60

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

63

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

64

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

4шт.

65

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

1шт.

66

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex jam, 5/8 inch NC

1шт.

67

1302353C1

GUARD

SHIELD - elevator fixed idler (Combine with straw chopper)

1шт.

68

1302351C1

DEFLECTOR

- elevator, rear shield (Combine with straw chopper)

1шт.

69

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss, 5/16 NC x 1/2 inch

2шт.

70

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flanged hex lock, 5/16 inch NC

2шт.

71

564737R1

SPACER,7/8" Tube x 2 1/16"

- 21/32 x 7/8 x 2-1/16 inch (Combine with straw chopper)

1шт.

72

194652C1

PIVOT

BAR - pivot arm

1шт.

73

155311C1

SPRING

- arm rod

1шт.

74

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

75

534939R1

WASHER

- flat, 21/32 x 2-1/2 x 7/64 inch

1шт.

Выбрано товаров: 31
