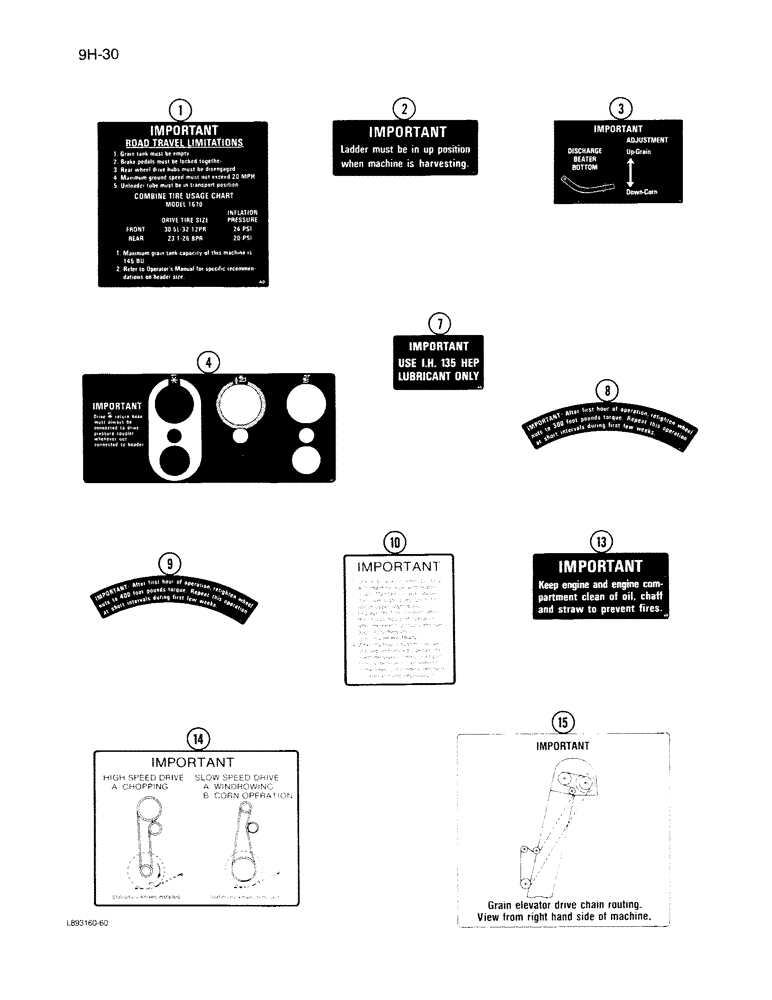

Запчасти Case IH 1670 (9H-30) - DECALS, IMPORTANT INSTRUCTIONS (12) - CHASSIS

1

1979488C1

PRODUCT GRAPHIC

DECAL - important, tire chart, 145 bushel

1шт.

2

186507C1

PRODUCT GRAPHIC

DECAL - important, ladder

1шт.

3

185441C1

PRODUCT GRAPHIC

DECAL - important, beater

2шт.

4

1327572C1

DECAL

- important, drive return

1шт.

7

186051C1

PRODUCT GRAPHIC

DECAL - important, lubrication

1шт.

8

180536C1

PRODUCT GRAPHIC

DECAL - important, wheel torque, 300 foot pounds

2шт.

9

1304724C1

PRODUCT GRAPHIC

DECAL - important, wheel torque, 400 foot pounds

2шт.

10

180180C1

PRODUCT GRAPHIC

DECAL - important, reservoir

1шт.

13

173881C1

DECAL

- important, clean engine

1шт.

14

1302721C2

DECAL

- important, chopper drive

2шт.

15

1957261C1

DECAL

- important, drive routing

1шт.
