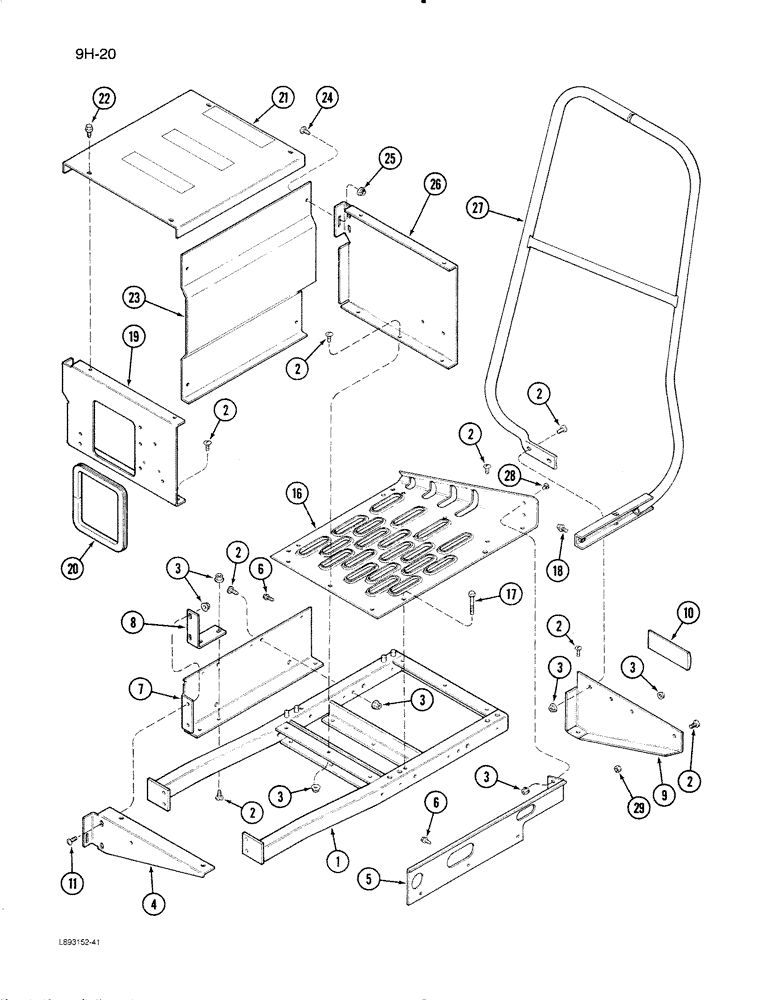

Запчасти Case IH 1670 (9H-20) - OPERATORS PLATFORM EXTENSION (12) - CHASSIS

1

198535C4

SUPPORT

- platform extension

1шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

1шт.

3

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

178372R1

WASHER

- flat, 13/32 x 1-1/4 x 3/64 inch

3шт.

4

1338309C1

SUPPORT ASSY.

SUPPORT - operators platform extension

1шт.

5

198542C2

SUPPORT ASSY.

SUPPORT - extension, right

1шт.

6

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - hex washer head tapping, 1/4 x 1/2 inch

3шт.

7

198543C3

SUPPORT

- platform extension, left

1шт.

8

183761C1

ANGLE

- rear extension

1шт.

9

198541C3

SUPPORT ASSY.

SUPPORT - platform extension

1шт.

10

174732C1

REFLECTOR

- amber

1шт.

11

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

1шт.

16

198547C3

LARGE PLATE

TREAD - platform extension

1шт.

17

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

1шт.

18

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

1шт.

19

1338306C1

SHEET

SUPPORT - valve box, rear

1шт.

20

98130C2

SEAL

MOULDING - valve box support

1шт.

21

1338308C1

COVER ASSY

SUPPORT - valve box cover

1шт.

22

28015R1

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

SCREW - hex washer head tapping, 3/8 NC x 3/4 inch

4шт.

23

1338304C1

SHEET

SUPPORT - valve box, left

1шт.

24

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss, 5/16 NC x 1/2 inch

4шт.

25

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

26

1338305C1

SHEET

SUPPORT - valve box, front

1шт.

27

198548C2

RAIL

ASSEMBLY - platform extension front

1шт.

28

424-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 2

- hex, 1/2 NC x 2-3/4 inch

1шт.

29

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

1шт.
