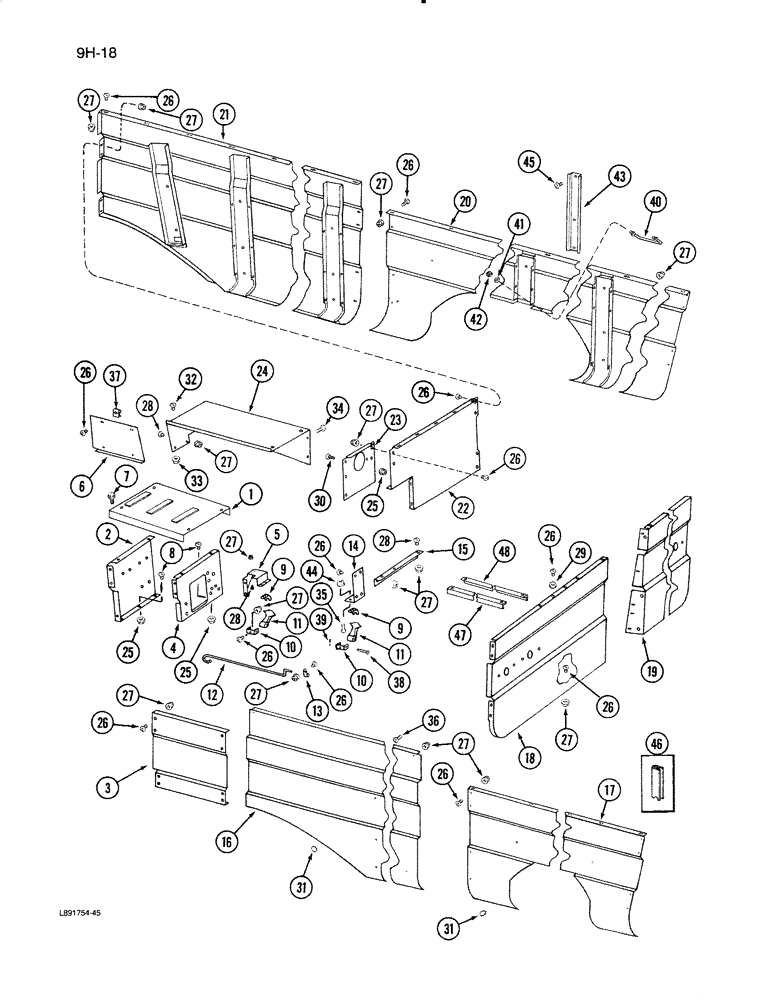

Запчасти Case IH 1670 (9H-18) - SHIELDS, SUPPORTS AND TRIM (12) - CHASSIS

1

1338308C1

COVER ASSY

SUPPORT - valve box cover

1шт.

2

1338305C1

SHEET

SUPPORT - valve box, front

1шт.

3

1338304C1

SHEET

SUPPORT - valve box, left

1шт.

4

1338306C1

SHEET

SUPPORT - valve box, rear

1шт.

5

1338354C1

SUPPORT ASSY.

SUPPORT - latch, left front

1шт.

6

188160C2

SUPPORT ASSY.

SUPPORT - cab bottom, right front

1шт.

7

28015R1

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

BOLT - tapping, 3/8 x 3/4 inch

4шт.

8

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

6шт.

9

764071C1

BRACKET

- trim hook

2шт.

10

188103C1

BRACKET

YOKE - hood anchor

2шт.

11

494307C1

LATCH

HOOK - trim hold down

2шт.

12

183444C1

ROD

- tank lower door

1шт.

13

362123R1

CLIP

- trim sheet brace

1шт.

14

188156C2

SUPPORT

- trim rear catch

1шт.

15

194604C2

ANGLE

- shield support

2шт.

16

186789C1

SHIELD

SUPPORT - grain tank trim left front

1шт.

17

1304050C2

SHIELD

- rear trim, left

1шт.

18

193811C3

SUPPORT

- tail lamp left

1шт.

19

193812C3

SUPPORT

- tail lamp right

1шт.

20

1304051C3

SHIELD

- rear trim, right

1шт.

21

188152C2

SUPPORT

- grain tank trim right front

1шт.

22

193151C1

SUPPORT

- lower left front

1шт.

23

194452C2

SUPPORT

- gear case front

1шт.

24

193443C1

SUPPORT

- feeder drive upper

1шт.

25

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

8шт.

26

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 1/2 inch

62шт.

27

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

89шт.

28

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

22шт.

29

488837C1

SPRING NUT

- speed, 5/16 inch

6шт.

30

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - slotted truss head, 3/8 NC x 1 inch

2шт.

31

147483C1

PLUG

- hole

8шт.

32

937875R1

SCREW,Serr, 1/4" - 20

BOLT - slotted truss head, 1/4 NC x 3/4 inch

2шт.

33

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange lock, 1/4 inch NC

2шт.

34

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

BOLT - tapping, 5/16 x 3/4 inch

2шт.

35

436734

SCREW,Slotted Pan Hd, #10-24 x 3/4"

- slotted pan head, No. 10 x 3/4 inch

4шт.

36

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

BOLT - slotted truss head, 5/16 NC x 1 inch

9шт.

37

403276R1

NUT

- speed

2шт.

38

22910R1

HEADED PIN

PIN - headed, 1/4 x 1-1/2 inch

2шт.

39

648002

KNIFE

1/8" x 3/4"

2шт.

40

1251832C1

BOLT

HANDLE - assist

1шт.

41

607895R1

WASHER

- flat, 17/32 x 1 x 7/64 inch

2шт.

42

905263R1

NUT,M12 x 1.75, Cl 10

NUT - prevailing torque, 12 mm, grade 10

2шт.

43

1319563C1

SUPPORT

- handle

2шт.

44

174097C1

FLANGE NUT,Flg, USR, #10-24

- flange lock, No. 10-24 NC

4шт.

45

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

46

1304749C1

SEALING STRIP

- trim

1шт.

47

1304760C1

ANGLE

BRACKET - support, left

1шт.

48

1304748C1

ANGLE

BRACKET - support, right

1шт.
