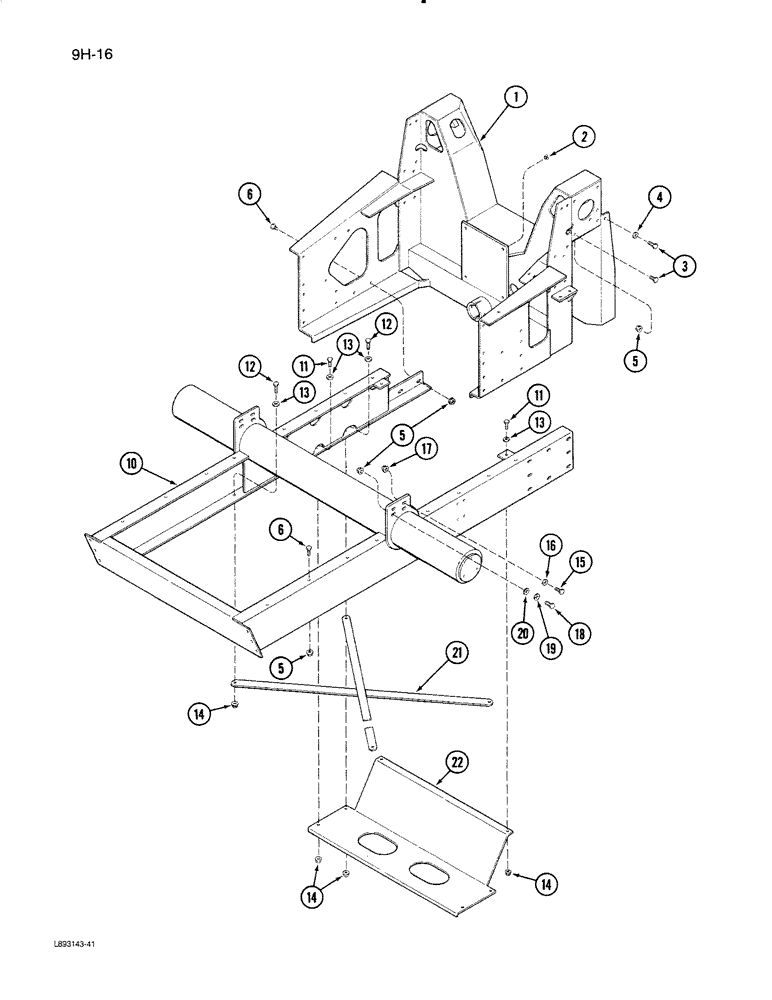

Запчасти Case IH 1670 (9H-16) - MAIN FRAME AND BEAM BOX (12) - CHASSIS

1

1304155C2

SUPPORT

BOX - beam

1шт.

2

54700R1

DOWEL

BUSHING - tapered split dowel

2шт.

3

24873R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

1шт.

3

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

1шт.

4

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

- flat, 21/32 x 1-1/2 x 3/16 inch

1шт.

5

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, Grade 8

1шт.

6

24872R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

1шт.

10

1304110C1

SUPPORT

FRAME - main

1шт.

11

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

- hex, 1/2 NC x 1-1/4 inch, Grade 8

2шт.

12

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch

2шт.

13

25710R1

WASHER

- hardened flat, 17/32 x 1-1/16 x 5/64 inch

6шт.

14

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex lock special, 1/2 inch NC

4шт.

15

26678R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch

2шт.

16

25553R1

WASHER,13/32" x 1 1/8" x .134", HDN

- flat, 13/32 x 1-1/8 x 9/64 inch

2шт.

17

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

18

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

1шт.

19

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

- flat, 21/32 x 1-1/2 x 3/16 inch

1шт.

20

1304738C1

WASHER

- hardened

1шт.

22

1304135C1

SUPPORT

SHIELD - frame bottom

1шт.

21

1304331C1

BAR

BRACE - cross

2шт.
