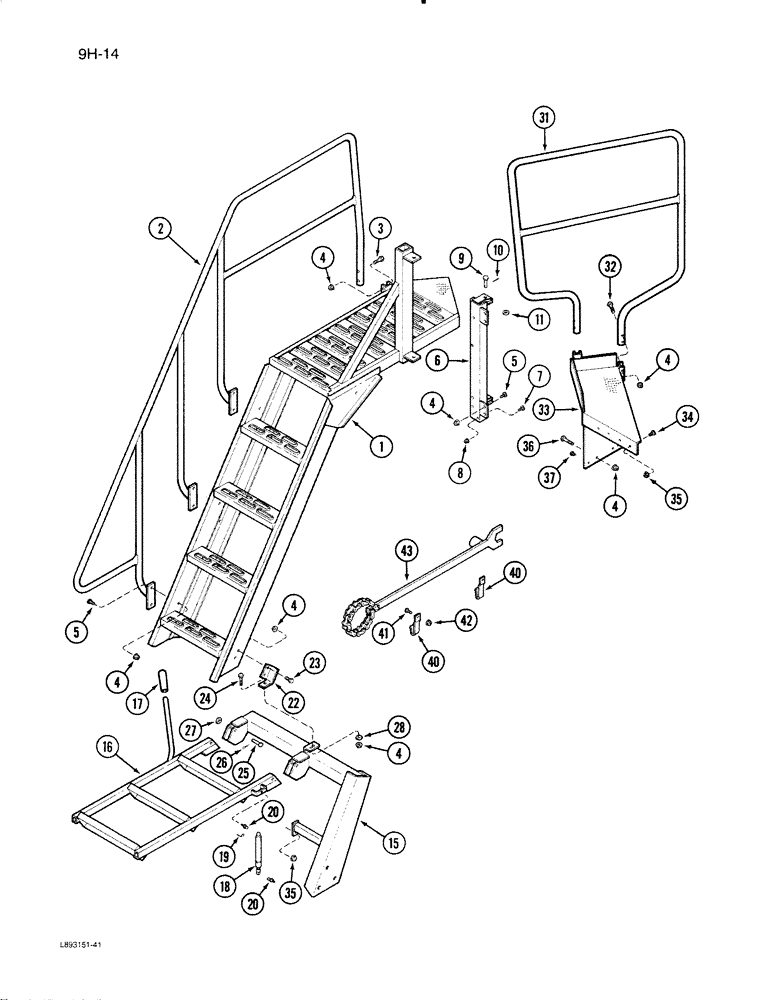

Запчасти Case IH 1670 (9H-14) - MAIN LADDER (12) - CHASSIS

1

1304732C91

LADDER

- main platform, Includes decal

1шт.

2754442R1

PRODUCT GRAPHIC

DECAL - caution, motion

1шт.

2

1304530C2

RAIL

HANDRAIL - ladder

1шт.

3

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

4шт.

4

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

5

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 x 3/4 inch

1шт.

6

1304519C1

SUPPORT

- grain tank mounting

1шт.

7

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

1шт.

8

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

9

21341R1

HEADED PIN,1/2" x 1"

PIN - clevis, 1/2 x 1 inch

2шт.

10

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

11

25710R1

WASHER

- hardened flat, 17/32 x 1-1/16 x 5/64 inch

2шт.

15

1304745C91

SUPPORT

- ladder, lower, Includes decal

1шт.

2754442R1

PRODUCT GRAPHIC

DECAL - caution, motion

1шт.

16

1304525C2

LADDER

- swinging

1шт.

17

198934C1

HANDLE

- gear shift

1шт.

18

1304523C91

CYLINDER

- gas spring, Includes: Ref. 19

1шт.

19

1304647C1

CLIP

- retaining

2шт.

20

F44882

BALL

STUD - ball

2шт.

22

1304553C1

SUPPORT

BRACKET - latch

1шт.

23

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

24

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch

1шт.

25

23303R1

CLEVIS PIN,3/8" x 2"

PIN, CLEVIS, 3/8" x 2"

2шт.

26

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

27

25710R1

WASHER

- hardened flat, 17/32 x 1-1/16 x 5/64 inch

2шт.

28

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

31

1304502C1

RAIL

HANDRAIL - extension step

1шт.

32

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

4шт.

33

1304498C1

SUPPORT

- platform extension

1шт.

34

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

4шт.

35

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

36

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

37

28059R1

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

BOLT - hex flange tapping, 1/4 x 3/4 inch

2шт.

40

1968787C1

CLIP

- rocking wrench

2шт.

41

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

2шт.

42

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

43

1957607C2

SPECIAL WRENCH

WRENCH ASSEMBLY - rocking

1шт.
