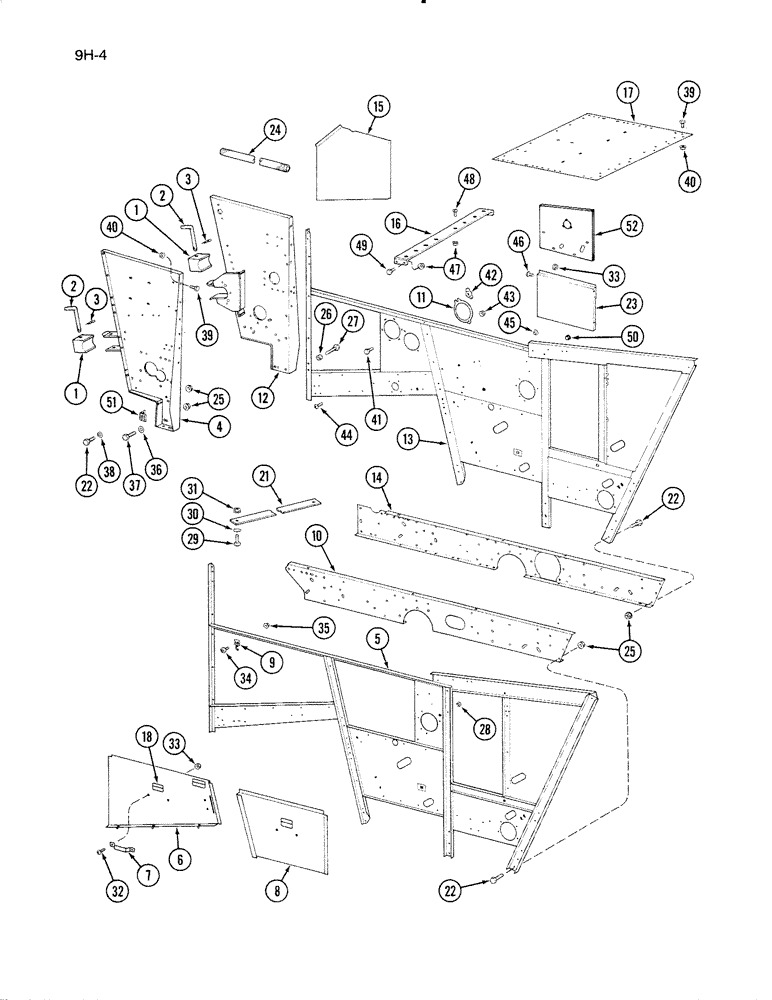

Запчасти Case IH 1670 (9H-04) - SEPARATOR DOORS, SIDES AND SUPPORTS, WITH ROCK TRAP (12) - CHASSIS

1

193834C1

BLOCK

- feeder pivot

2шт.

2

192533C2

ROD

- feeder pivot block

2шт.

3

520175R1

CLIP

PIN - quick attachable cotter

2шт.

4

1304100C4

POST

- separator side, left front

1шт.

5

1304167C1

SIDE PLATE

SIDE - separator, left

1шт.

6

186178C91

DOOR

ASSEMBLY - separator, front left

1шт.

7

160638C1

HANDLE

- separator door

3шт.

8

186188C91

DOOR

ASSEMBLY - separator side, left

1шт.

9

167800C1

CLIP

- door retainer

14шт.

10

1330362C1

RESTRICTOR

SUPPORT - separator, left side main

1шт.

11

188315C1

DOOR

- separator side, right

1шт.

12

1304101C4

POST

- separator, right

1шт.

13

1304762C91

SIDE PLATE

SIDE - separator, right

1шт.

14

1330363C1

RESTRICTOR

SUPPORT - separator, right side main

1шт.

15

186199C91

DOOR

ASSEMBLY - separator, front right

1шт.

16

195316C1

SUPPORT ASSY.

SUPPORT ASSEMBLY - engine deck

1шт.

17

192323C2

SUPPORT

PLATE - engine deck

1шт.

21

196315C2

BAR

- separator frame diagonal support

2шт.

22

426-1018

BOLT

- hex, 5/8 NC x 1-1/4 inch, Grade 8

26шт.

23

181085C2

DOOR

- separator side

2шт.

24

1319395C1

CONDUIT

- convoluted, 12-1/8 inch

1шт.

25

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- flange lock, 5/8 inch NC, Grade 8

34шт.

26

272897R1

SPACER

- 1/2 x 1 inch pipe

1шт.

27

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

- hex head flange, 3/8 NC x 1-1/2 inch

1шт.

28

406391C1

PLUG,1"

- button

1шт.

29

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

- hex, 1/2 NC x 1-1/2 inch, Grade 8

5шт.

30

25710R1

WASHER

- hardened, 1/2 inch

5шт.

31

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- flange lock, 1/2 inch NC, Grade 8

5шт.

32

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 1/2 inch

6шт.

33

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

16шт.

34

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

14шт.

35

174097C1

FLANGE NUT,Flg, USR, #10-24

- flange lock, No. 10-24

14шт.

36

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

- flat, 21/32 x 1-1/2 x 3/16 inch

4шт.

37

24873R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

8шт.

38

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, 41/64 x 1-1/4 x 1/8 inch

12шт.

39

454998

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, Grade 8

13шт.

40

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

- flange lock, 1/2 inch NC, Grade 8

13шт.

41

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch, Grade 1

1шт.

42

935735R1

WING NUT

- wing, 1/4 inch NC

1шт.

43

26110R1

LOCK NUT,1/4"-20, GC

NUT - prevailing torque, 1/4 inch NC

1шт.

44

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

BOLT - slotted truss head, 1/4 NC x 1/2 inch

1шт.

45

432366

HOLE PLUG BUTTON,1 3/8"

PLUG - button, 3/8 inch

1шт.

46

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

10шт.

47

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

16шт.

48

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - slotted truss head, 3/8 NC x 1 inch

12шт.

49

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

4шт.

50

353-411

PLUG,Dome, 1.000" hole, Nylon

(25.4 mm) Dome, 1.000" hole, Nylon

1шт.

51

1304988C3

ANGLE

BRACKET - level limit switch mounting

2шт.

52

181092C2

SUPPORT ASSY.

SUPPORT - beater, left

1шт.

52

181093C2

SUPPORT

- beater, right

1шт.
