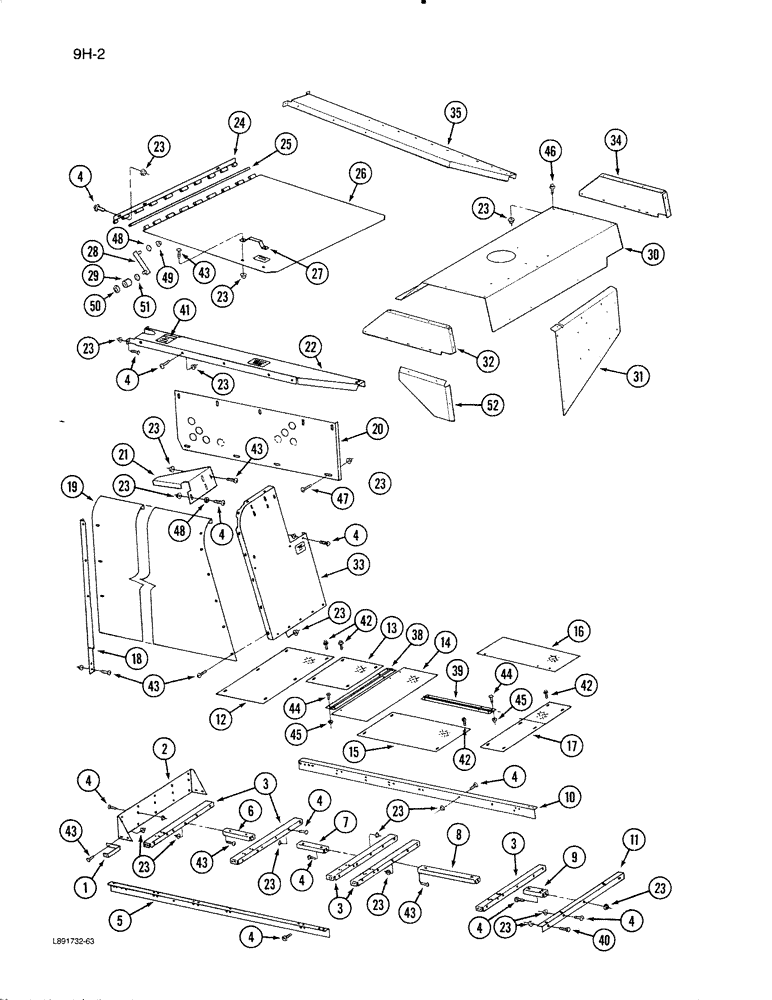

Запчасти Case IH 1670 (9H-02) - ENGINE SHIELD AND SERVICE DECK (12) - CHASSIS

1

188419C1

CHANNEL

- grain tank rear upper left

1шт.

2

193435C2

SUPPORT

- engine service deck

1шт.

3

192959C5

CHANNEL

SUPPORT - deck

5шт.

4

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

69шт.

5

188368C2

ANGLE

- left deck support

1шт.

6

188081C1

SUPPORT

- deck

1шт.

7

194461C1

SUPPORT

- deck

1шт.

8

194460C1

SUPPORT

- deck

1шт.

9

194459C1

SUPPORT

- deck

1шт.

10

192960C4

CHANNEL

SUPPORT - right deck

1шт.

11

193146C3

ANGLE

- engine deck rear support

1шт.

12

194456C2

PLATE

- engine compartment front

1шт.

13

194455C2

PLATE

- engine compartment

1шт.

14

1977155C1

DOOR

- belt adjusting separator drive

1шт.

15

188096C2

PLATE

- engine deck, left center

1шт.

16

186692C2

DOOR

- separator drive housing

1шт.

17

192596C3

PLATE

- engine compartment, rear

1шт.

18

188377C1

ANGLE

- shield stiftner, left upper

1шт.

19

193154C3

SUPPORT

- rear upper left trim

1шт.

20

1302703C1

PLATE

- rotor cover to service deck

1шт.

21

195356C1

SUPPORT

- left rear upper shield

1шт.

22

1319647C91

SUPPORT

ASSEMBLY - door and hood

1шт.

23

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch

115шт.

24

194477C2

HINGE

- rotor cover door

1шт.

25

194478C1

ROD

- rotor door hinge

1шт.

26

1979469C1

DOOR ASSY.

DOOR ASSEMBLY - engine and rotor drive, with decal

1шт.

27

160638C1

HANDLE

- rotor door

1шт.

28

1302413C1

PROP

LINK ASSEMBLY - door hold up

1шт.

29

568257R1

SPACER,1/2" Tube x 3/8"

- 1/2 x 3/8 inch

1шт.

30

1317824C2

SUPPORT

- top cover rear

1шт.

31

1319792C1

SUPPORT

- air cleaner

1шт.

32

1321295C1

SUPPORT

- top cover mount, left

1шт.

33

186194C93

SUPPORT

ASSEMBLY - engine, left rear

1шт.

34

1321296C1

SUPPORT

- top cover mount, right

1шт.

35

1979470C1

SUPPORT ASSY.

SUPPORT - engine door

1шт.

38

186695C1

HINGE

- separator door

1шт.

39

186693C1

HINGE

- door

1шт.

40

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

- hex, 3/8 NC x 2 inch

2шт.

42

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

BOLT - tapping, 1/4 x 1/2 inch

20шт.

43

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 1/2 inch

29шт.

44

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

BOLT - slotted truss head, 1/4 NC x 1/2 inch

18шт.

45

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange lock, 1/4 inch NC

18шт.

46

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

19шт.

47

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

BOLT - slotted truss head 5/16 NC x 1 inch

3шт.

48

20893R1

WASHER

- flat, 11/32 x 1 x 7/64 inch

2шт.

49

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT - prevailing torque lock, 5/16 inch NC

2шт.

50

178374R1

WASHER

- flat,17/32 x 1-1/4 x 3/64 inch

1шт.

51

567532R1

WASHER

- flat, 21/64 x 1/2 x 5/32 inch

1шт.

52

1327680C2

SHEET

SUPPORT - air deflector

1шт.
