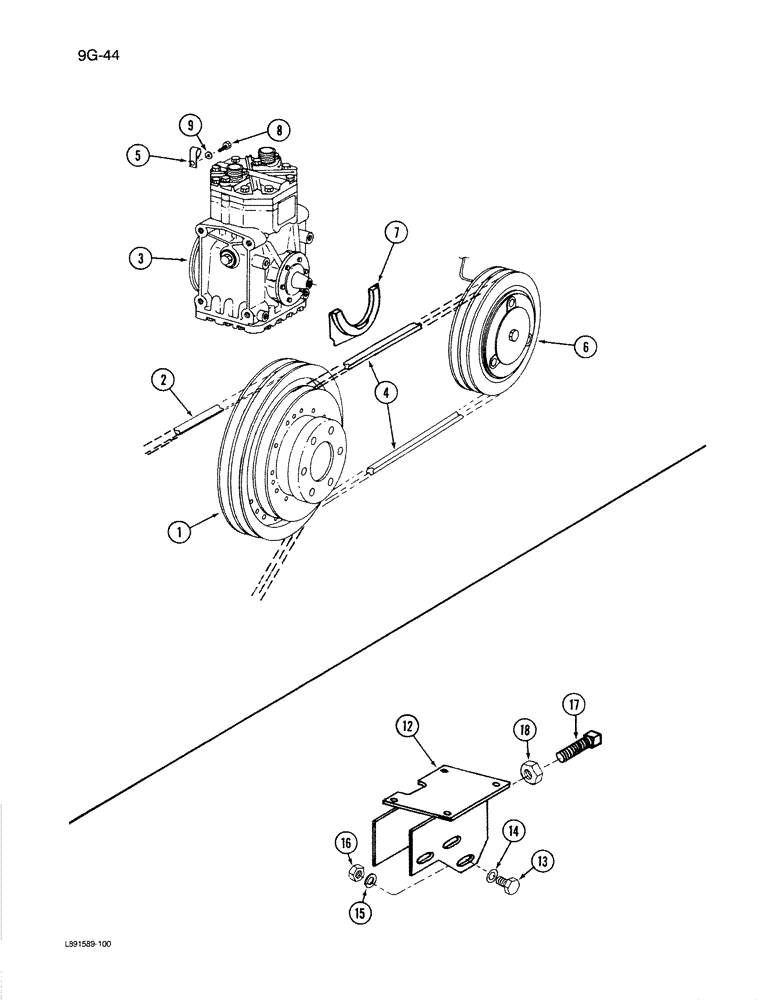

Запчасти Case IH 1670 (9G-44) - AIR CONDITIONING COMPRESSOR PULLEYS, CLUTCH AND BELTS (10) - CAB & AIR CONDITIONING

1

691562C1

PULLEY

PULLEY - fan and water pump (Three belt groove)

1шт.

2

537072R91

SET OF BELTS

(Matched), Drive, Fan

1шт.

3

1255750C91

COMPRESSOR

COMPRESSOR - air conditioning (See Figure 9G-48)

1шт.

3

1924008C2

REMAN-A/C COMPRESSOR

Remanufactured Air Compressor Assy

1шт.

3

1924009C1

CORE-A/C COMPRESSOR

Return Number

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

BOLT - hex, 3/8 NC x 1-1/2 inch

4шт.

4

1250587C1

V-BELT,0.50" W

Drive, Compressor

1шт.

5

362667R1

CLIP

CLIP - wire harness

1шт.

6

REF

INSTRUCTION

CLUTCH ASSEMBLY - compressor (See Figure 9G-46), Includes: Ref. 7

1шт.

7

245983C1

AIR CONDITIONER

WICK - compressor

1шт.

8

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1/2", G5, Full Thd

1шт.

9

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

12

143140C1

BRACKET

SUPPORT - mounting, compressor

1шт.

13

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

BOLT - hex, 3/8 NC x 3-1/4 inch, air conditioning compressor mounting

3шт.

14

25709R1

WASHER

WASHER - hardened, 13/32 x 13/16 x 5/64 inch, air conditioning compressor mounting

3шт.

15

492-11038

LOCK WASHER,3/8"

LOCK WASHER, , air conditioning compressor mounting 3/8"

3шт.

16

120377

NUT,3/8" - 16, Gr 5

NUT, , Air conditioning compressor mounting 3/8"-16, G5

3шт.

17

26257R1

SET SCREW

SCREW - square head set, 3/8 x 3 inch, air conditioning compressor mounting

1шт.

18

25932R1

JAM NUT,Jam, 3/8"-16, G5

NUT - hex jam, 3/8 inch NC, air conditioning compressor mounting

1шт.
